To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and lack of process performance.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
Greensun/OEM
-
Model Number:
-

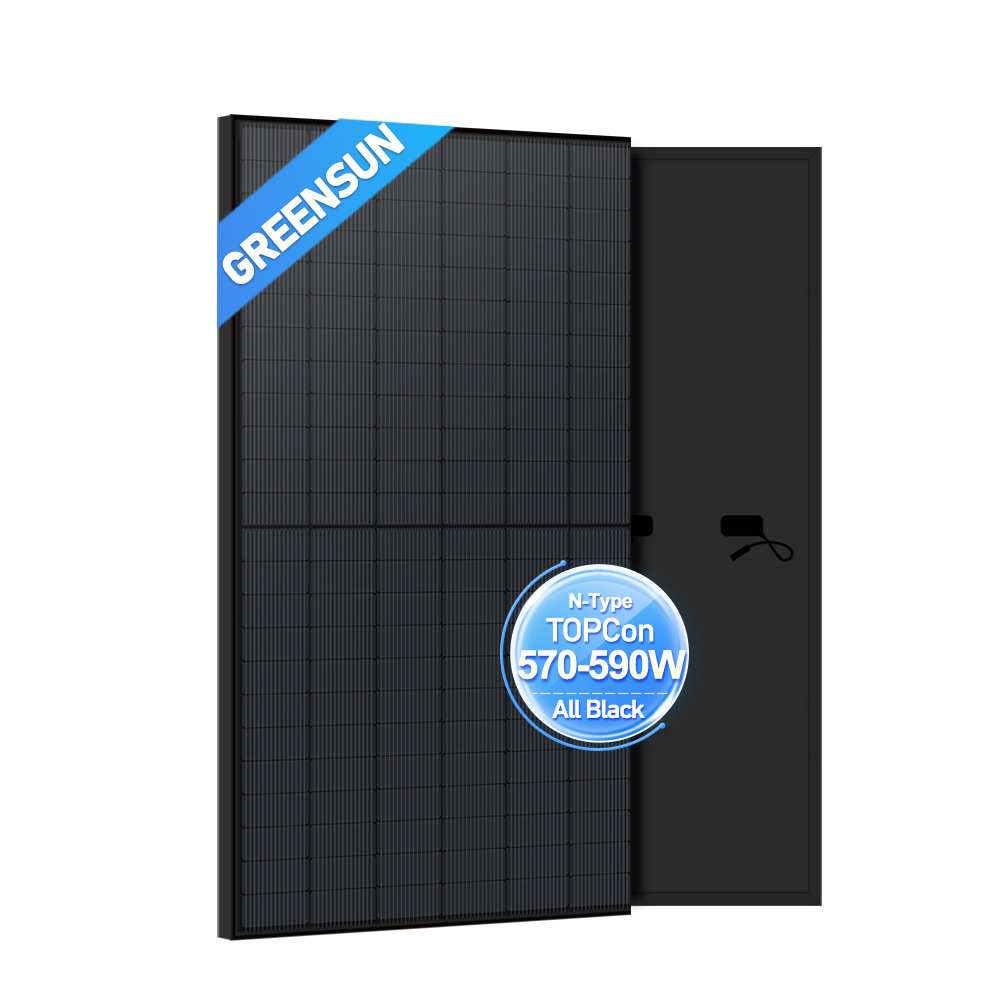

GSM-M10/144 All Black 570-590W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*30mm
-
Product name:
-
GSM-M10/144 All Black 570-590W
-
Material:
-
Mono-crystalline Silicon
-
Solar cell:
-
182*91mm
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black
-
OEM:
-
Acceptable
-
Application:
-
Solar energy system
-
Weight:
-
29.4KG
-
Efficiency:
-
21.87%-22.64%
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO, TUV IEC CE
Quick Details
-
Cell size:
-
182MM
-
Type:
-
PERC, Half Cell, Double-glass, All Black, Flexible, BIPV, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.64%
-
Warranty:
-
30 years
-
Brand Name:
-
Greensun/OEM
-
Model Number:
-
GSM-M10/144 All Black 570-590W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*30mm
-
Product name:
-
GSM-M10/144 All Black 570-590W
-
Material:
-
Mono-crystalline Silicon
-
Solar cell:
-
182*91mm
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black
-
OEM:
-
Acceptable
-
Application:
-
Solar energy system
-
Weight:
-
29.4KG
-
Efficiency:
-
21.87%-22.64%
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO, TUV IEC CE
Product Description
|
PV Module
|
GSMxxx-72/All Black (xxx = Peak Power Watts)
|
|
|
|
|
||||
|
Nominal Power (Pmax)
|
570W
|
575W
|
580W
|
585W
|
590W
|
||||
|
Voltage at Nominal Power (Vmp)
|
42.07V
|
42.22V
|
42.37V
|
42.52V
|
42.67V
|
||||
|
Current at Nominal Power (Imp)
|
13.55A
|
13.62A
|
13.69A
|
13.76A
|
13.83A
|
||||
|
Open Circuit Voltage (Voc)
|
50.74V
|
50.88V
|
51.02V
|
51.16V
|
51.30V
|
||||
|
Short Circuit Current (Isc)
|
14.31A
|
14.39A
|
14.47A
|
14.55A
|
14.63A
|
||||
|
Module Efficiency (%)
|
22.06
|
22.25
|
22.44
|
22.64
|
22.84
|
||||
|
Operating Temperature
|
-40°C to +85°C
|
|
|
|
|
||||
|
Nominal Power (P max)
|
429W
|
432W
|
436W
|
440W
|
444W
|
|
Voltage at Nominal Power (Vmp)
|
39.51V
|
39.60V
|
39.69V
|
39.81V
|
39.92V
|
|
Current at Nominal Power (Imp)
|
10.
85A
|
10.
92A
|
10.99A
|
11.05A
|
11.12A
|
|
Open Circuit Voltage (Voc)
|
48.20V
|
48.33V
|
48.46V
|
48.60V
|
48.73
V
|
|
Short Circuit Current (Isc)
|
11.
55A
|
11.
62A
|
11.
68A
|
11.
75A
|
11.82A
|
Grade A Material
Higher Transmittance EVA
Higher GEL Content
Good durability can resist high temperature, moisture, ultraviolet and so on.
PERC 10BB 182mm Mono Solar Cells
More than 22% Efficiency
Anti-Pid
IP68 Water proof Junction Box
Innovative full-glue-filled junction box
Outstanding sealability
Outstanding sealability
Sliver and Black Color Optional
Aluminum Alloy
120N Tensile Strength Frame
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
QC System
100% Solar Cells Sorting
Color and performance selection
Middle Test
EVA and appearance inspection
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.
Overall inspection
PV Module
appearance
Ensure that the product has no color difference
and no burrs.
Make its reach Grade A standard.
EL Testing
Solar panel power inspection
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.
Product Packaging
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
Our Factory
More than 800MW production capacity per year
5BB PERC, Half-cut, 9BB half-cut solar panel production line
Strict quality control procedures
Export more than 160 countries
OEM service accept.
Project Cases
800KW Solar Power System For Mall in
Argentina
16KW Solar Power System for Home Use in Canada
500KW Storage Solar System in South Africa
