Quick Details
-
Travel (W-axis) (mm):
-
200 mm
-
Core Components:
-
others
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INTEGRITY
-
Weight (T):
-
1.2 T
-

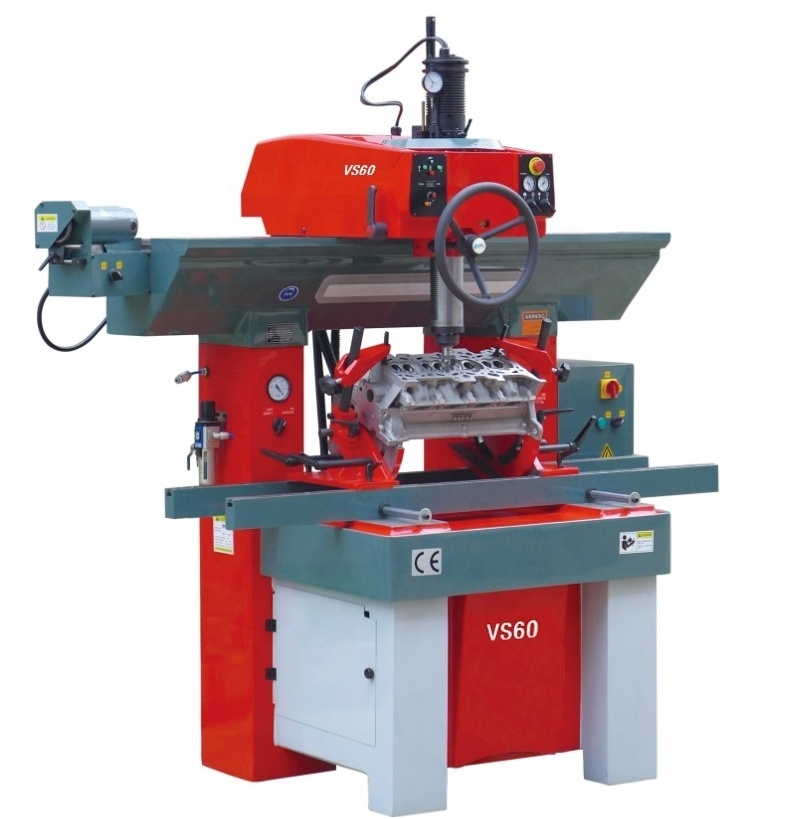

model:
-
VS60
-
Name:
-
valve seat boring machine
-
Product type:
-
Boring Machine
-
Functions:
-
reboring engine cylinders
-
Usage:
-
automobiles motor and tractors
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO
Quick Details
-
Table Travel (X) (mm):
-
930 mm
-
Table Travel (Y) (mm):
-
600 mm
-
Table Travel (Z) (mm):
-
450 mm
-
Travel (W-axis) (mm):
-
200 mm
-
Core Components:
-
others
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INTEGRITY
-
Weight (T):
-
1.2 T
-
model:
-
VS60
-
Name:
-
valve seat boring machine
-
Product type:
-
Boring Machine
-
Functions:
-
reboring engine cylinders
-
Usage:
-
automobiles motor and tractors
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO
PRODUCT DESCRIPTION
|
Model
|
VS60
|
|
Max length of cylinder head
|
Unlimilted
|
|
Max. width of the cylinder head
|
500mm
|
|
Max. height of the cylinder head
|
450mm
|
|
Max. boring dia.
|
16-60mm
|
|
Longitudinal travel of workhead
|
930mm
|
|
Cross travel of workhead
|
40mm
|
|
Inclination angle of workhead
|
±3°
|
|
Vertical travel of spindle
|
200mm
|
|
Spindle power
|
1.2kw Servo motor
|
|
Max. torque of spindle motor
|
18Nm
|
|
Spindle speed
|
50-1000 stepless
|
|
Power of bit grinder
|
0.3kw
|
|
Rotation speed of bit grinder
|
2800rpm
|
|
Tilt angle of clamping system
|
+42° to -15°
|
|
Required rated pressure
|
6 bar / 85 psi
|
|
Required max. air flow
|
300L / min
|
|
Dimension
|
1450x1050x2180mm
|
|
Roundness of finishing
|
Ra0.6
|
|
Packing size
|
1620x1040x2200mm
|
|
N.W./G.W.
|
1000/1200kg
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
