Quick Details
-
Material:
-
100% Virgin Tungsten Carbide
-
Shape:
-
strips
-
Purity:
-
100% cemented carbide
-
Strip Size:
-
Various
-
Finish:
-
unground/grounded
-
Particle:
-
0.6-2.0
-
Application:
-
knife, scraper, mould, etc
-
Hardness:
-
86-94HRA
-
Keywords:
-
tungsten carbide bar price
-
keyword:
-
tungsten bar
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
TIANBO METAL
-
Model Number:
-
Tungsten Bar
-
Material:
-
100% Virgin Tungsten Carbide
-
Shape:
-
strips
-
Purity:
-
100% cemented carbide
-
Strip Size:
-
Various
-
Finish:
-
unground/grounded
-
Particle:
-
0.6-2.0
-
Application:
-
knife, scraper, mould, etc
-
Hardness:
-
86-94HRA
-
Keywords:
-
tungsten carbide bar price
-
keyword:
-
tungsten bar
99.95% tungsten carbide strips flats of tungsten bar /wolfram bar manufacturer supplier factory baoji tianbo company
If you are not sure about our quality,our company can provide you sample first,we want to achieve win-win long-term cooperation with you.
Tungsten has about the same electrical conductivity and resistivity, coefficient of thermal expansion, and about the same resistance to corrosion by mineral acids as molybdenum. Tungsten is high strength at temperatures above 2,000°F, but because the melting point is higher, it retains significant strength at higher temperatures. The elastic modulus for tungsten is about 25% higher than that of molybdenum, and its density is almost twice that of molybdenum. All commercial unalloyed tungsten is produced by powder-metallurgy methods; it is available as rod, wire, plate, sheet, and some forged shapes. For some special applications, vacuum-arc-melted tungsten can be produced, but it is expensive and limited to relatively small sections.
Polished tungsten bar tolerance
| Diameter | Diameter Tolerance | Length | tolerance | Length | Tolerance |
| 2~6 | +/- 0.03 | 20<L<200 | 0 , +0.5 | >=200 | 0 , +1 |
| 7~30 | +/- 0.05 | 20<L<200 | 0 , +0.5 | >=200 | 0 , +1 |
| >30 | +/- 0.1 | >=200 | 0 , +1 |
Black surface tungsten bar tolerance
| Diameter | Diameter tolerance | Length Tolerance |
| 2~15 | 0 , +0.2 | 0 , +1 |
| 16~40 | 0 , +0.3 | 0 , +1 |
| >40 | 0 , +0.5 | 0 , +1 |
Features of Tungsten carbide rods
1. Material: 100%virgin raw material with submicron and average grain size. Various grades for choice;
2. With strict tolerance extent control, the tolerance can reach +/-0.005mm;
3. Free of bur, chamfer avaliable.
4. Product Types available: Blank rods, ground rods, thread rods, rod with one/two/three holes.
5. With high hardness(>=89.5HRA) and bending strenght(>=2600Mpa);
6. Having very good mechanical &chemical stability;
7. High quality & low price & fast delivery & best service;
8. OEM & ODM;
9. Free online technical service available.
Chemical Component
| Grade | Density (g/cm3) | T.R.S(MPa) | Hardness (HRA) |
| GYS06UX | 14.88-15.02 | >3150 | >91.5 |
| GYS08UX | 14.68-14.82 | >3200 | >90.5 |
| GYS10UX | 14.40-14.60 | >3200 | >91.5 |
| GYS12UX | 14.00-14.50 | >4000 |
>90.0
|

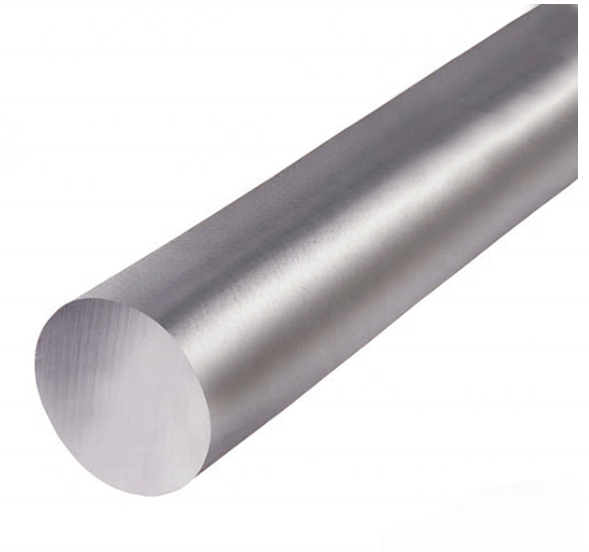

Product Show
Application
Tungsten bars have 99.95% purity 3410 melting point and 19.3g/cm3 density .
Typical Applications include weights and counterbalances for aircraft control surfaces and rotor blades, guidance platforms, counterbalances for fly wheels, turbines and engine crankshafts, vibration damping governors, filaments, and fuse masses. Other applications include radiation shielding, gyro rotors, weapons including
