Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aohoy
-
Application:
-
Food, Dairy, Beverage, Beer, Wine, Pharmacy, etc
-
Size:
-
1/2' -8'-DN15-200
-
Surface:
-
Mirror polish,Matt finish, sand-blasting
-
Thickness:
-
1.5mm, 1.65mm, 2mm, 4mm
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
round
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aohoy
-
Application:
-
Food, Dairy, Beverage, Beer, Wine, Pharmacy, etc
-
Size:
-
1/2' -8'-DN15-200
-
Surface:
-
Mirror polish,Matt finish, sand-blasting
-
Thickness:
-
1.5mm, 1.65mm, 2mm, 4mm

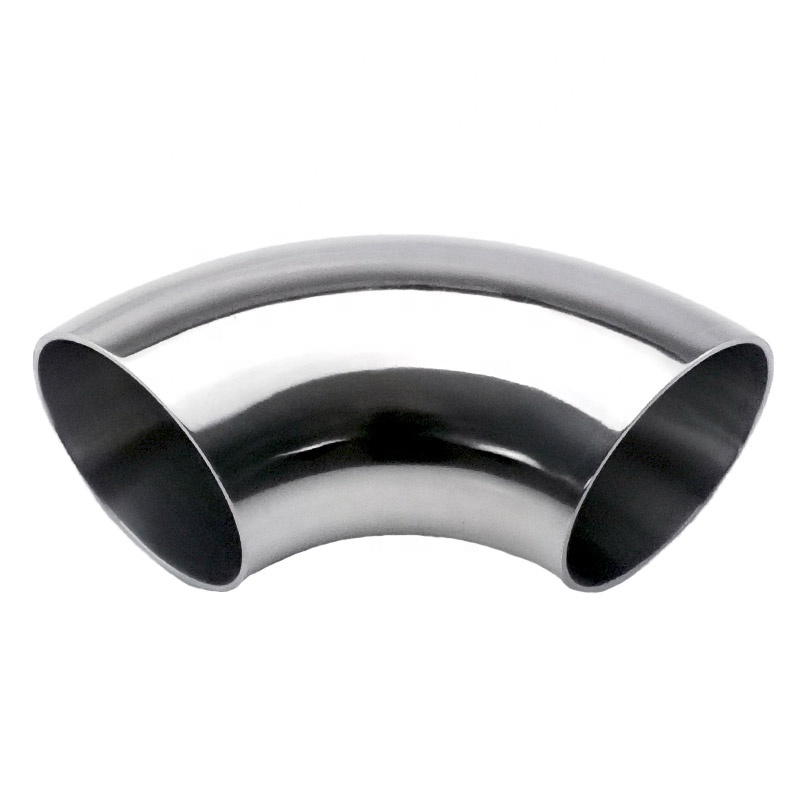

Welding pipe stainless steel sanitary long radius 304 316 90 degree elbow
Butt Weld 90 Degree Elbows allow for sharp redirection of process flows. Two 90 degree elbows can redirect your pipeline in any direction
Specification
|
Pipe Size
|
1/2"-12", DN15-DN200, Customized
|
|
Material
|
304/316, 1.4301/1.4404
|
|
Thickness
|
From 19mm to 51mm: 1.5mm, From 57mm to 102mm: 2mm
|
|
Surface treatment
|
Mirror/matt polishing
|
|
Working pressure
|
0-10 BAR
|
Create permanent sanitary 90° connection with Butt-Weld Elbows
The Polished 90° Elbow is available in both 304 & 316L stainless steel alloys. Welds are required at both ends in order to accommodate a 90° change in angle between separate runs of sanitary tubing. Stainless steel material is resistant to corrosion and can withstand high temperatures. This product is manufactured in accordance with 3A DIN SMS Standards for sanitary process line applications including food & beverage industries
High Pressure Durable，Welded connections ensure tight seals and reduce the possibility of leakage
O
perating temperatures range from -425 to 1200 degrees F,Meets specification ASTM A269 for quality assurance
Fitting welds to tubing on both ends to create a tight seal against leaks,For 316 one, Low carbon content to ensure greater resistance to corr
Real product picture
