Quick Details
-
Model Number:
-
XD-LST MPPT Hybrid Solar Inverter
-
Output Frequency:
-
Low frequency 50Hz or 60Hz
-
Size:
-
500*300*140mm or 530*335*150mm
-
Weight:
-
12kg~26kg
-
Certificate:
-
CE, RoHS, TUV, Test Report
-
Product name:
-
MPPT Hybrid solar inverter with charger
-
Color:
-
Blue or customized
-
Application:
-
Solar home inverter charger
-
Waveform:
-
Pure Sine Wave Inverter
-
Original:
-
solar inverter manufacturers in china
-
Warranty:
-
12~24 Months
-
Rated power:
-
1KW 2KW 3KW 4KW 5KW 6KW Hybrid inverter
-
Display:
-
LCD
-
Controller type:
-
MPPT charger controller hybrid solar inverter
-
Transformer:
-
Toroidal inverter
Quick Details
-
Output Current:
-
Optional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
XD-LST MPPT Hybrid Solar Inverter
-
Output Frequency:
-
Low frequency 50Hz or 60Hz
-
Size:
-
500*300*140mm or 530*335*150mm
-
Weight:
-
12kg~26kg
-
Certificate:
-
CE, RoHS, TUV, Test Report
-
Product name:
-
MPPT Hybrid solar inverter with charger
-
Color:
-
Blue or customized
-
Application:
-
Solar home inverter charger
-
Waveform:
-
Pure Sine Wave Inverter
-
Original:
-
solar inverter manufacturers in china
-
Warranty:
-
12~24 Months
-
Rated power:
-
1KW 2KW 3KW 4KW 5KW 6KW Hybrid inverter
-
Display:
-
LCD
-
Controller type:
-
MPPT charger controller hybrid solar inverter
-
Transformer:
-
Toroidal inverter
1. Hybrid solar inverter pure sine wave output.
2. Intelligent LCD integration display.
3. Low frequency toroidal transformer lower loss.
4. Inverter Charger/ Solar Inverter Charger / Built-in PWM or MPPT controller optional.
5. AC charge current 0~30A adjustable, three working modes selectable.
6. Peak power more than 3 times, full-automatic and perfect protection function.
7. Added fault code query function, easy to monitor the operation in real time.
8. Supports diesel or gasoline generator, adapt any tough electricity situation.
9. Combine industrial and home usage, wall-mounted design, convenient installation.
| Specification | |||||||
| Model LS | 10212/24 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | |
| Rated Power | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Peak Power(20ms) | 3KVA | 6KVA | 9KVA | 12KVA | 15KVA | 18KVA | |
| Start Motor | 1HP | 2HP | 3HP | 3HP | 4HP | 4HP | |
| Battery Voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | ||
| Size(L*W*Hmm) | 490*300*130 | 510*320*140 | |||||
| Packing Size(L*W*Hmm) | 565*395*225 | 585*415*225 | |||||
| N.W.(kg) | 11.5 | 17.5 | 19.5 | 21.5 | 23.5 | 25.5 | |
| G.W.(kg)(Carton Packing) | 13 | 19 | 21 | 23 | 25 | 27 | |
| Installation Method | Wall-Mounted | ||||||
| Parameter | |||||||
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | |||||
| AC Input Voltage Range | 85VAC~138VAC / 170VAC~275VAC | ||||||
| AC Input Frequency Range | 45Hz~65Hz | ||||||
| Max AC charging current | 25A/15A | 30A/25A/15A | 30A/20A | 30A/25A | 30A | 30A | |
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||
| Output Voltage(Battery Mode) | 110VAC±2% / 220VAC±2% | ||||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | ||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||
| Efficiency(AC Mode) | >99% | ||||||
| Output Voltage(AC Mode) | 110VAC±10% / 220VAC±10% | ||||||
| Output Frequency(AC Mode) | Tracking Automatically | ||||||
|
Output waveform distortion
(Battery Mode) |
≤3%(Linear load) | ||||||
| No load loss(Battery Mode) | ≤0.8% rated power | ||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||
|
Battery Type
(selectable) |
LEAD | Charge Voltage:14V;Float Voltage:13.8V(12V system; 24V system x2; 48V system x4) | |||||
| OP-LE | Charge Voltage:14.2V; Float Voltage:13.8V(12V system; 24V system x2; 48V system x4) | ||||||
| LITHIUM | Charge Voltage: 12.6V(NMC battery 3S) (12V system; 24V system x2; 48V system x4) | ||||||
| Customize battery | Charge and discharge parameters of different types of batteriescan be customized according to user requirements | ||||||
| Protection | Battery undervoltage alarm | 11V; LITHIUM 9.5V(NMC battery 3S)(12V system; 24V system x2; 48V system x4) | |||||
| Battery undervoltage protection | 10.5V; LITHIUM 9V(NMC battery 3S)(12V system; 24V system x2; 48V system x4) | ||||||
| Battery overvoltage alarm | Lead acid battery: 15V(12V system; 24V system x2; 48V system x4) | ||||||
| Battery overvoltage protection | Lead acid battery: 17V(12V system; 24V system x2; 48V system x4) | ||||||
| Battery overvoltage recovery voltage | Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4) | ||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Temperature protection | >90°C(Shut down output) | ||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||
|
Inside Solar controller
(Optional) |
Charging Mode | MPPT or PWM | |||||
| Charging current | 10A/20A/30A/40A/50A/60A/80A/100A | ||||||
| PV Input Voltage Range |
PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system)
MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system) |
||||||
| Max PV Input Voltage(At 25℃) | PWM: 50V(12V/24 system), 100V(48V system ); MPPT: 150V | ||||||
| PV Array Maximum Power |
12V system: 140W/280W/420W/560W/700W/840W/1120W/1400W;
24V system: 280W/560W/840W/1120W/1400W/1680W/2240W/2800W; 48V system: 560W/1120W/1680W/2240W/2800W/3360W/4480W/5600W |
||||||
| Standby loss | ≤3W | ||||||
| Maximum conversion efficiency | >95% | ||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||
| Transfer Time | ≤4ms | ||||||
| Display | LCD | ||||||
| Thermal method | Cooling fan in intelligent control | ||||||
| Communication | RS232/RS485(Optional) | ||||||
| Environment | Operating temperature | ≤55dB | |||||
| Storage temperature | -10℃~40℃ | ||||||
| Noise | -15℃~60℃ | ||||||
| Elevation | 2000m(More than derating) | ||||||
| Humidity | 0%~95% ,No condensation | ||||||
| Warranty | 1 year | ||||||
| Note: All specifications are subject to charge without prior notice | |||||||

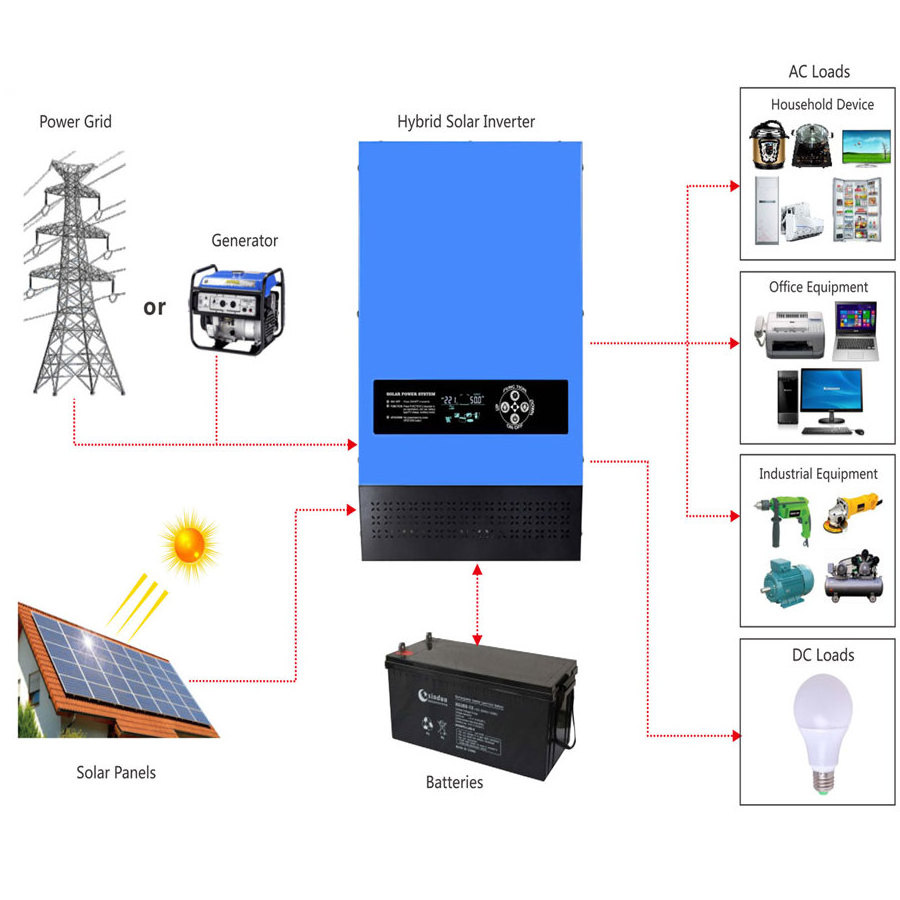

1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode:
When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode:
If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode:
When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
