Quick Details
-
Vibrating Amplitude:
-
2850
-
Length of Flexible Shaft:
-
1-10M
-
Weight:
-
29 kg
-
Dimension(L*W*H):
-
77*66*5
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JINYAO
-
Frequency:
-
50/60
-
Vibrating Amplitude:
-
2850
-
Length of Flexible Shaft:
-
1-10M
-
Weight:
-
29 kg
-
Dimension(L*W*H):
-
77*66*5
-
After Warranty Service:
-
Video technical support
Product Paramenters
|

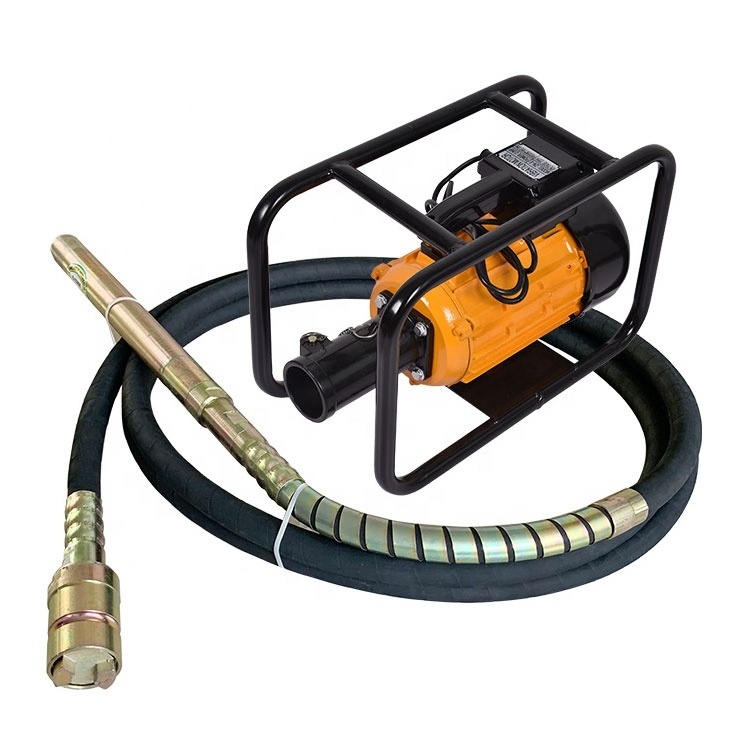

Electric Concrete Vibrator
|
|
|
|
|||
|
Model
|
ZN-A-1
|
ZN-D-1
|
ZN-E-1
|
|||
|
Coupl
i
ng
|
Japan type
|
Chinese Type
|
Dynapac /Malaysia Type
|
|||
|
Voltage (V)
|
220/380
|
220/380
|
220/380
|
|||
|
Frequency (50HZ)
|
50/60
|
50/60
|
50/60
|
|||
|
Power (KW)
|
1.5/2/3
|
1.5/2/3
|
1.5/2/3
|
|||
|
Speed (RPM)
|
2850
|
2850
|
2850
|
|||
|
Weight(KGS)
|
13/14/15
|
13/14/15
|
13/14/15
|
|||
|
Packing size (LxHxW /CM)
|
42x28x29
|
42x28x29
|
42x28x29
|
|||
|
Concrete Vibrator Shaft
|
|
|
|
|
|
|
||||||
|
Model
|
Vibrating Head Size
|
Frequency
|
Amplitude
|
Flex. Shaft dia
|
Rubber Dia
|
Length
|
||||||
|
25mm
|
25*470MM
|
158-200HZ
|
0.9MM
|
8MM
|
30MM
|
1-10M
|
||||||
|
28mm
|
28*470MM
|
158-200HZ
|
0.9MM
|
8MM
|
30MM
|
1-10M
|
||||||
|
32mm
|
32*470MM
|
|
1.1MM
|
10MM
|
30MM
|
1-10M
|
||||||
|
35mm
|
35*470MM
|
|
1.6MM
|
10MM
|
30MM
|
1-10M
|
||||||
|
38mm
|
38*470MM
|
|
2.0MM
|
10MM
|
30MM
|
1-10M
|
||||||
|
45mm
|
45*470MM
|
|
2.2MM
|
12MM
|
32MM
|
1-10M
|
||||||
|
50mm
|
50*470MM
|
150-200HZ
|
2.4MM
|
13MM
|
36MM
|
1-10M
|
||||||
|
60mm
|
60*470MM
|
|
2.6MM
|
13MM
|
36MM
|
1-10M
|
||||||
|
70mm
|
70*470MM
|
|
2.6MM
|
13MM
|
36MM
|
1-10M
|
||||||
Using In Multiple Scenarios
Products Show
Product packaging
100% Inspection Before delivery .
When Products finished , our department will do inspection to make sure quality no problem .
Packing : Double 5 layers cartons in side ,steel pallet outside in optional. .
Strong Enough and no need
Inspection Certificate of Fumigation
