Quick Details
-
Core Components:
-
Freezer
-
Place of Origin:
-
China
-
Brand Name:
-
Cryo Chains
-
Dimension(L*W*H):
-
12.5*2.17*2.1m
-
Weight:
-
10000 KG
-
Freezing Time:
-
3~50min
-
Inlet Height:
-
900mm
-
Exhaust Pipe Size:
-
300mm
-
Material:
-
Stainless Steel
-
After Warranty Service:
-
Video and online technical support
-
After-sales Service Provided:
-
Video and online technical support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Voltage:
-
380V
-
Power:
-
13KW
-
Cooling Capacity:
-
100 - 2500kg/hour
-
Core Components:
-
Freezer
-
Place of Origin:
-
China
-
Brand Name:
-
Cryo Chains
-
Dimension(L*W*H):
-
12.5*2.17*2.1m
-
Weight:
-
10000 KG
-
Freezing Time:
-
3~50min
-
Inlet Height:
-
900mm
-
Exhaust Pipe Size:
-
300mm
-
Material:
-
Stainless Steel
-
After Warranty Service:
-
Video and online technical support
-
After-sales Service Provided:
-
Video and online technical support
-
Marketing Type:
-
Ordinary Product
|

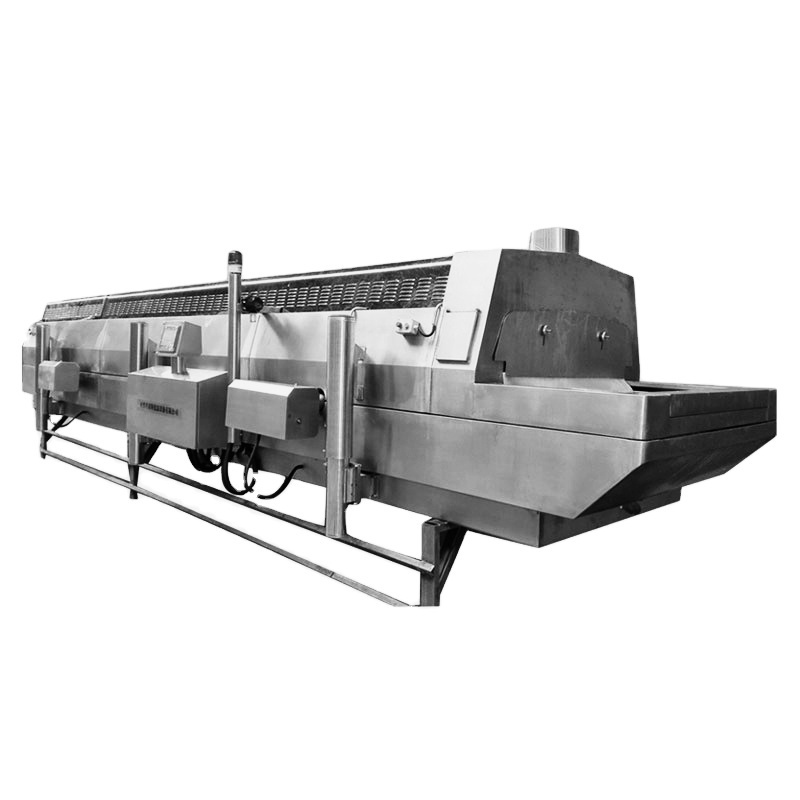

IQF Blasting Liquid Nitrogen Tunnel Freezing Machine:
|
|
|
|
|
||||
|
Automatic Small batch fish meat Liquid Nitrogen Quick Freezing Equipment Liquid nitrogen Tunnel Freezer IQF Machine for Fruits.
|
|
|
|
|
||||
Product Description
Introduction of IQF Liquid Nitrogen Quick Freezer:
The tunnel freezer uses liquid nitrogen (LIN) as a refrigerant to freeze food directly, suitable for all kinds of foods. It is
modular in design, enabling you to expand production by adding additional tunnels for a longer freezing production line. It is available in several models and belt widths with production rates of 300–2,500 kg/h .
Liquid nitrogen temperatures can reach minus 196 ℃ (-196 ℃ ).When it is in contact with food,Gasification will be able to take heat away more quickly.The ultra-low temperature and high heat exchange rate achieve a really quick reozen.Such repid freezing,generating the smallest ice crystals, and helps maintain food texture.This also prevents water loss, and almost no loss:to maintain the original color,flavor and original quality of the food.These vaporized refrigerant nitrogen is directed to the front end of the refrigerating machine uniformly,complete the exchange of hot inverse,thereby improving the utilization of the nitrogen.
modular in design, enabling you to expand production by adding additional tunnels for a longer freezing production line. It is available in several models and belt widths with production rates of 300–2,500 kg/h .
Liquid nitrogen temperatures can reach minus 196 ℃ (-196 ℃ ).When it is in contact with food,Gasification will be able to take heat away more quickly.The ultra-low temperature and high heat exchange rate achieve a really quick reozen.Such repid freezing,generating the smallest ice crystals, and helps maintain food texture.This also prevents water loss, and almost no loss:to maintain the original color,flavor and original quality of the food.These vaporized refrigerant nitrogen is directed to the front end of the refrigerating machine uniformly,complete the exchange of hot inverse,thereby improving the utilization of the nitrogen.
Feature of Liquid Nitrogen Quick Freezer:
1) Nitrogen freezer, the lowest temperature is -196
℃
.
2) Fast freezing time, the fastest freezing time is 5 minutes.
3) No damage of cell structure, no dehydration and dry loss,no moisture loss.
4) Improve productivity, improve texture, color, flavor of frozen product.
5) The nitrogen freezer is Environmental, no pollution, no noise.
6) Easy to operate and easy to repair, dont need special technician.
2) Fast freezing time, the fastest freezing time is 5 minutes.
3) No damage of cell structure, no dehydration and dry loss,no moisture loss.
4) Improve productivity, improve texture, color, flavor of frozen product.
5) The nitrogen freezer is Environmental, no pollution, no noise.
6) Easy to operate and easy to repair, dont need special technician.
Products Details
Plant Environment
Product Parameter
Project Case
Our Advantages
Own self-help intellectual property rights;
With lifting mechanism, ultra-high configuration;
With oxygen concentration alarm, safety and energy saving;
Exquisite workmanship, pay attention to quality;
Intelligent temperature control, fast refrigeration;
Clean and environmentally friendly.
With lifting mechanism, ultra-high configuration;
With oxygen concentration alarm, safety and energy saving;
Exquisite workmanship, pay attention to quality;
Intelligent temperature control, fast refrigeration;
Clean and environmentally friendly.
