Quick Details
-
Weight:
-
4kg
-
Temperature:
-
0~45℃(Operation) ; -20~80℃(Storage)
-
Power supply:
-
AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Iput interface:
-
4 Tuner (DVB-C/(T)/S/S2 optional)
-
Demission(LxWxH):
-
482mm*300mm*44.5mm (W*D*H)
-
Weight:
-
4kg
-
Temperature:
-
0~45℃(Operation) ; -20~80℃(Storage)
-
Power supply:
-
AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
Features

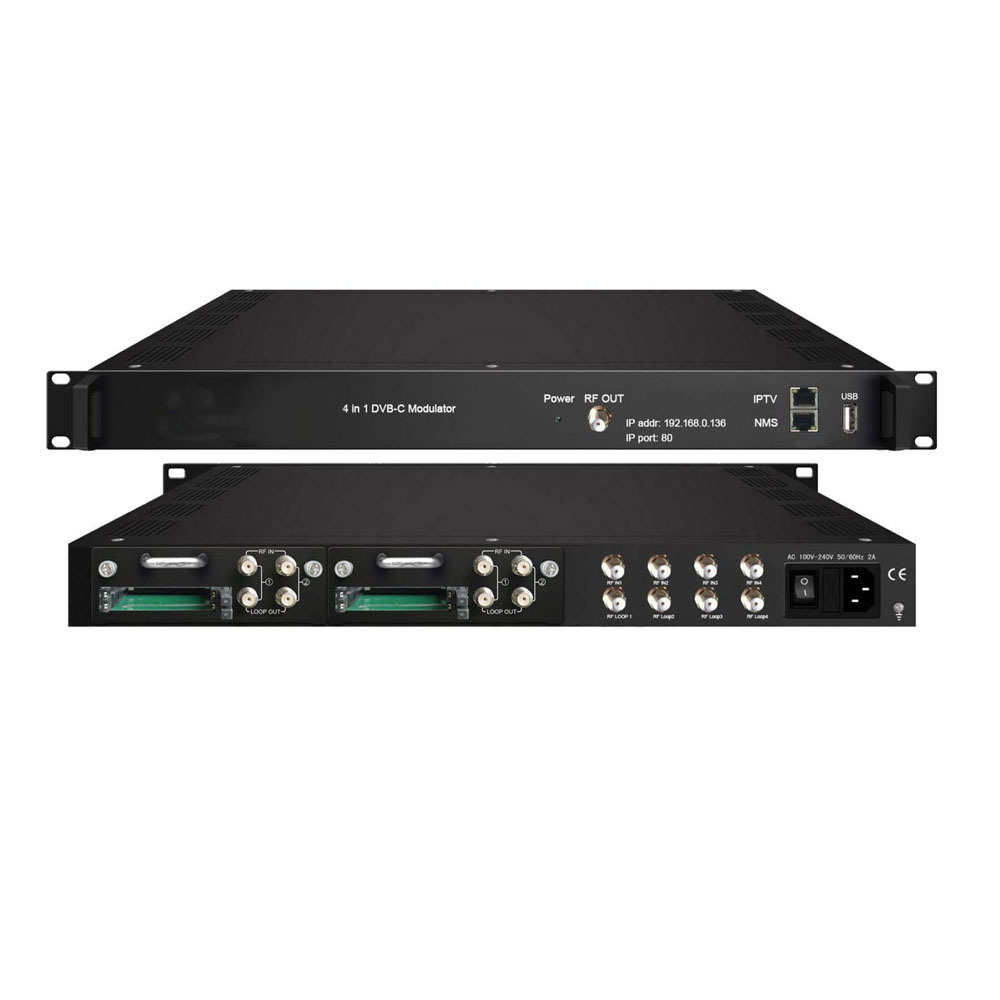

* 4 Tuner (DVB-C/(T)/S/S2 optional) + 4 Tuner with CAM(DVB-C/(T)/S/S2/ATSC optional) input
* Demodulation Module(4*RF/Loop out + 4*CAM + 4*Smartcard)
* One CAM can decrypt multiple programs from Tuners and IP
* maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol
* 4 groups multiplexing + 4 groups scrambling + 4 groups DVB-C modulating
* 4 IP (MPTS) output over UDP and RTP protocol
* Integrated demodulating and multiplexing functions
* Support BISS descrambling
* Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering
* Web-based NMS management
|
4 Tuner (DVB-C/(T)/S/S2 optional)+4 Tuner with CAM (DVB-C/(T)/S/S2/ ATSC optional) 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M , Unicast/Multicast |
||||
|
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
||
|
Input Frequency |
30 MHz~1000 MHz |
|||
|
Constellation |
16/32/64/128/256 QAM |
|||
|
DVB-(T) |
Input Frequency |
30MHz ~999.999 MHz |
||
|
Bandwidth |
6/7/8 M bandwidth |
|||
|
DVB-S |
Input Frequency |
950-2150MHz |
||
|
Symbol rate |
2-45Msps |
|||
|
Signal Strength |
-65~-25dBm |
|||
|
FEC Demodulation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|||
|
DVB-S2(Version 1) |
Input Frequency |
950-2150MHz |
||
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||
|
Constellation |
QPSK, 8PSK |
|||
|
DVB-S2(Version 2) |
Input Frequency |
950-2150MHz |
||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
|||
|
Symbol rate |
QPSK 1~45 Msps; 8PSK 2~30 Msps; 16APSK 1~45 Msps; 32APSK 1-32 Msps |
|||
|
ATSC-T |
Input Frequency |
54MHz~858MHz |
||
|
Bandwidth |
6M bandwidth |
|||
|
CAM/CI |
4 sets |
|||
|
Mode 1, Mode E (descramble individual program) |
||||
|
Maximum PID Remapping |
256 per input channel |
|||
|
Function |
A/V PID filtering |
|||
|
PID Remapping |
||||
|
Accurate PCR adjusting |
||||
|
Generate PSI/SI table automatically |
||||
|
Maximum simulcrypt CA |
4 |
|||
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|||
|
Connection |
Local/remote connection |
|||
|
DVB-C |
Standard |
J.83A (DVB-C), J.83B, |
||
|
MER |
≥43dB |
|||
|
RF frequency |
50~960MHz, 1KHz step |
|||
|
RF output level |
-25~ -1dbm(83~107 dbµV), 0.1db step |
|||
|
Symbol rate |
5.000~7.000Msps adjustable |
|||
|
RF Out |
4*DVB-C non-adjacent carriers combined output, 40M total bandwidth limitation |
|||
|
Constellation |
J.83A |
J.83B |
||
|
16/32/64/128/256QAM |
64/256 QAM |
|||
|
Bandwidth |
8M |
6M |
||
|
4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast) |
||||
|
web-based NMS support |
||||
|
Ethernet software upgrading |
||||
|
Dimension |
482mm×300mm×44.5mm (W*D*H) |
|||
|
Temperature |
0~45 ℃ (Operation) ; -20~80 ℃ (Storage) |
|||
|
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
|||
Kindly contact me to send you more solutions for DVB-C, DVB-S, DVB-T, Cable QAM System for Hotel ,Microwave , Radio reporter system...etc
1.FAQ:Where is your company located? How can I visit your company?
A:Our factory is located in Tian He District, Guang Zhou City, China, it's about 25 mins away from Canton Fair Center and 15 mins from Guang Zhou Eastern Station, all our clients, from home or abroad, are warmly welcome to take a visit here!
You can search this numbers " 23.127,113.332 " in google map , then you can find our fmuser office .
2.FAQ:How does your company do regarding quality control?
A:Quality is very important and always the priority of our inspection system. FMUSER team members always pay great attention to quality control from the very beginning to the end.
All machine will be Aging work 40days before shipment.
3.FAQ:Can I get some samples?
A: Yes, sure, we are honored to offer you samples, sample fee can be discussed.
4.FAQ:What is your mode of transportation?
A: We ship via International Express like FedEx, UPS, DHL, TNT, other ways designated by customers are also optional.
5.FAQ:Could you pls make OEM for us?
A: Surely yes.We provide the service of replacing your logo and company name on box, product and software interface
of the device .
6.FAQ:What's your payment method supported?
A: We accept T/T, Paypal, Western Union, MoneyGram etc.
7.FAQ:What about your warranty?
A: We provide 1 year quality warranty for our main devices, accessories are not within this range, but our accessories are endurable enough to use for long time.
FMUSER International Group Inc is a comapny dedicated to FM and TV broadcasting equipments and relevant accessories. All of our products are fully inpsected before shipping, and sold to many countries all over the world. We will make effort to become a super supplier in the global FM and TV filed.
