Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WITY
-
Model Number:
-
ZB1100A
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7500*2200*1500(mm)
-
Weight:
-
4T
-
Max sheet:
-
1020x600mm
-
Min sheet:
-
600x350mm
-
Paper thickness:
-
150-350gsm
-
Speed:
-
70 bags/min
-
Bottom thickness:
-
60-150mm
-
Glue type:
-
Hot-melt glue
-
Certification:
-
380V/50HZ
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Soft Loop Handle Bag
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WITY
-
Model Number:
-
ZB1100A
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7500*2200*1500(mm)
-
Weight:
-
4T
-
Max sheet:
-
1020x600mm
-
Min sheet:
-
600x350mm
-
Paper thickness:
-
150-350gsm
-
Speed:
-
70 bags/min
-
Bottom thickness:
-
60-150mm
-
Glue type:
-
Hot-melt glue
-
Certification:
-
380V/50HZ
ZB1100A Paper Bag Making Machine
Description:
ZB1100A paper bag making machine is suitable for making different size of bags from different types of paper (raw material should be die-cut and creased paper sheets). Material can be automatically delivered by feeder, and the speed can be controlled by inverter. Through the process of automatic positioning, gluing, folding, and pressing, the finished product will be output as paper tube.
Features:
- This machine adopts presice automatic positioning syetem, and the speed is controlled by inverter.
- With presice screw adjustment, which can greatly reduce the adjusting time for making bags with different sizes.
- Adopts hot-melt gluing system, makes gluing process fast and firm.
Specifications:
|
Max sheet |
1020x600mm L×W |
|
Min sheet |
600x350mm L×W |
|
Paper thickness
|
150~350gsm |
|
180~300gsm for Art paper |
|
|
Speed |
70 bags/min |
|
Bottom width |
60~150mm |
|
Glue type |
hot-melt glue |
|
Power Consumption |
6.5kw |
|
Total Weight |
4000kg |
|
Machine Size |
7500×2200×1500mm |
products diagram:
Suitable paper: kraft paper, art paper, white board paper, white cardboard (including laminated paper).
Surpporting machine: ZB50B Paper Bag Bottom Gluing Machine

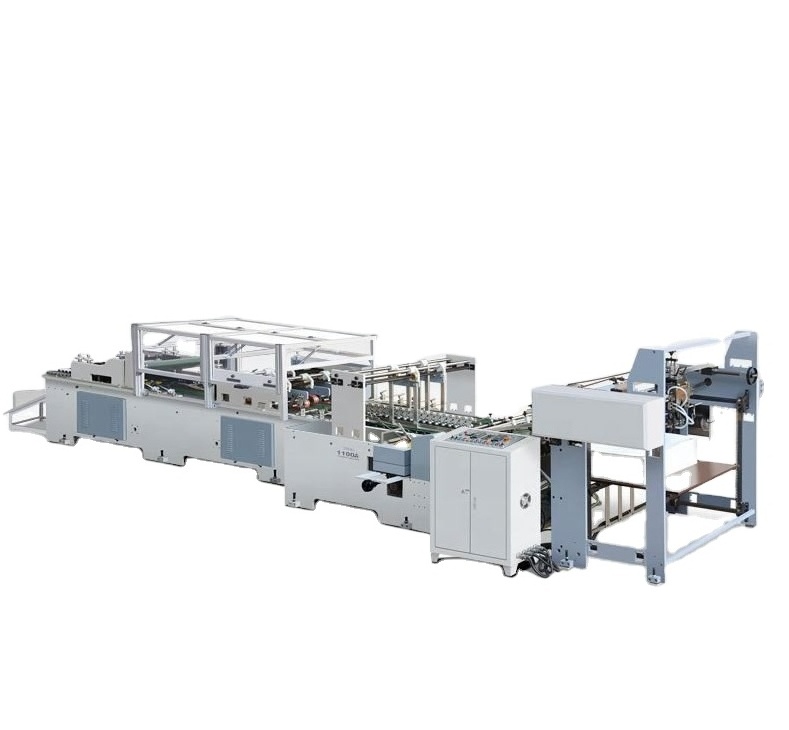

Machine photos:
