Quick Details
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yuming
-
Voltage:
-
3phases/380V,50Hz,or customized
-
Dimension(L*W*H):
-
1.8*0.63*1.75
-
Hollow part volume:
-
5L
-
Clamping Force (kN):
-
100
-
Power (kW):
-
16
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Video technical support
-
Machine type:
-
YM-3P-A
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Neck Diameter(mm):
-
45 mm
-
Max.Bottle Diameter(mm):
-
180 mm
-
Max.Bottle Height(mm):
-
320 mm
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yuming
-
Voltage:
-
3phases/380V,50Hz,or customized
-
Dimension(L*W*H):
-
1.8*0.63*1.75
-
Hollow part volume:
-
5L
-
Clamping Force (kN):
-
100
-
Power (kW):
-
16
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Video technical support
-
Machine type:
-
YM-3P-A
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product 2021
Product Description
Application :

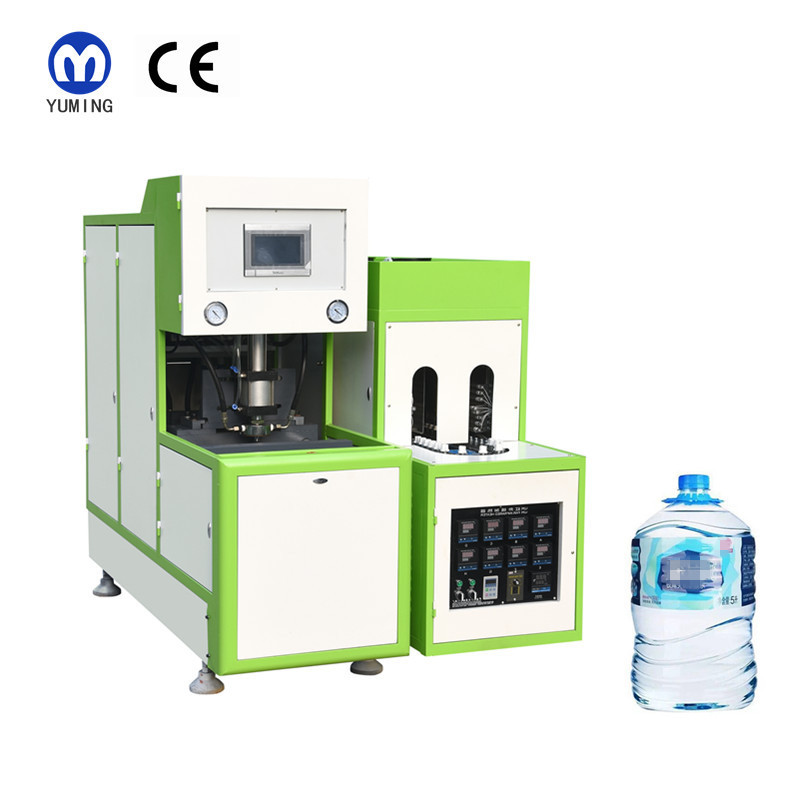

YM-3P series is two step blowing machine,can blow Max.volume 5 Litre PET bottle,with the advantage of a small size,low cost,high pressure clamping force,easy to operate and so on. It can make all different shapes of plastic PET Bottle,Especially making Water bottle, Beer bottle, Oil bottle,Detergent bottle,etc.
Sample:
Main Features:
1- The machine are all made by ourselves,including the over and mould.
2-
One worker is enough, easy to operate and maintain;
3-
Energy saving, economic
4- Flexible adjustment function: the temperature of each group light can be adjusted, and they can be adjusted in four direction, so as to meet the requirement of different preforms.
5- The heater adopts far-infrared lights to heat, it has the advantages of heating efficient and energy-saving. When the preforms move forward in the oven,they rotate at the same time,so can be heated uniform.
Technical parameters
