>> Features high and low voltage disconnect functions, avoiding the effects of common battery failures such as overcharge,
over-discharge, overload, and short circuits on your device.
>> Supports high-temperature charging or discharging cut-off.
>>Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
48V 80Ah lifepo4 battery
-
Dimensions:
-
L520*W269*H220,customize
-
Usage:
-
Replace traditional Lead-acid battery
-
Cycle life:
-
≥4000cycles,at 0.2C charge & discharge
-
BMS:
-
Built-in BMS
-
Max continues discharge current:
-
150 Amps
-
Terminal type:
-
M8
-
Warranty:
-
5years
-
Certification:
-
CE,MSDS,Rohs.UN38.3
-
Application:
-
golf cart/energy storage battery
-
Plug Type:
-
Support customization
Quick Details
-
Model Number:
-
Support customization
-
Brand Name:
-
Support customization
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
48V 80Ah lifepo4 battery
-
Dimensions:
-
L520*W269*H220,customize
-
Usage:
-
Replace traditional Lead-acid battery
-
Cycle life:
-
≥4000cycles,at 0.2C charge & discharge
-
BMS:
-
Built-in BMS
-
Max continues discharge current:
-
150 Amps
-
Terminal type:
-
M8
-
Warranty:
-
5years
-
Certification:
-
CE,MSDS,Rohs.UN38.3
-
Application:
-
golf cart/energy storage battery
-
Plug Type:
-
Support customization
Product Description

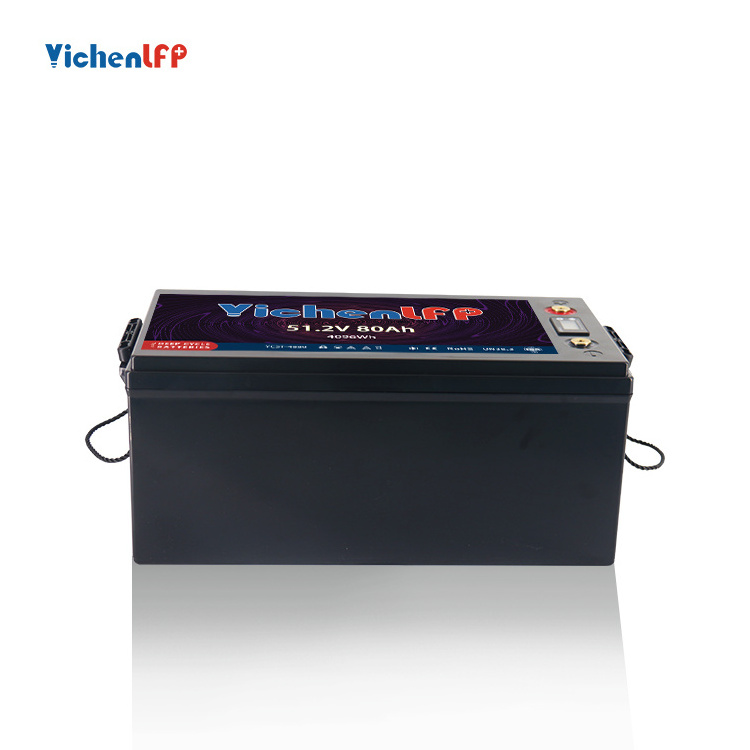

48V 80Ah Deep Cycle LiFePO4 Battery Pack
The 48V 80AH lithium ion battery is compatible with any application that’s powered by lead-acid, gel or AGM batteries. The
48V-80Ah lithium ion battery is protected by a waterproof case, which is waterproof and dustproof.
We use the most advance lithium deep cycle battery technologies to make the 48V li-ion battery pack just ensure that you can get the highest quality and make a most stable product with YICHENLFP 48V li-ion rechargeable battery pack, we work with you to do the label, shrink wrap, custom terminates or encloses in plastic.
YICHENLFP batteries can be operated for starting or deep cycle applications and perform well in both series and parallel
connections. Any application that demands high quality, dependable, and lightweight lithium batteries can be supported by our batteries and their integrated BMS.
Battery Management System(BMS）
Three Typical Functions:
Specification
|
Electrical Characteristics |
Model number
|
YCST-4880-E
|
|
|
Nominal Voltage
|
51.2 V
|
|
|
Nominal capacity
|
80 Ah
|
|
|
Energy
|
4096Wh
|
|
|
Internal Resistance
|
≤ 8mΩ
|
|
|
Cycle life
|
≥4000 cycles @1C 80%DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100% @0.5C
|
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
Standard Charge |
Charge Cut-off Voltage
|
58.4±0.2V
|
|
|
Charge Mode
|
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
|
|
|
Standard Charge Current
|
15A
|
|
|
Max. Charge Current
|
80A
|
|
Standard Discharge |
Continuous Current
|
15A
|
|
|
Max. Continuous Current
|
120A
|
|
|
Discharge Cut-off Voltage
|
40V
|
|
Environmental |
Charge Temperature
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP67
|
|
Mechanical |
Plastic Case
|
ABS
|
|
|
Dimensions (mm)
|
520*269*220mm
|
|
|
Weight
|
35 kg
|
|
|
Terminal
|
M8
|
|
Function
|
|
Custom LCD, Blue tooth
|
|
Color
|
|
Black
|
Features and Applications
Features
* >100% Usable Energy: 100% Depth of Discharge, Fully Utilize Each Charges. * Wide-Range Certificated: RoHS, UN38.3, CE, MSDS,etc.
* Safety First: Safest LiFePO4 Technology Armed with BMS.
* Optional Pre-Heat Charging: Warm Up Before Taking Charge In Wintertime.
* 10 Years Run Time: 4000 Cycle Life Equivalent To 10-15 Years Service Life.
RV/Camping/Outdoor Activity
Lithium batteries offer reliable, stable, long-lasting power – the best solution for staying comfortable and safely exploring remote locations. Lightweight lithium batteries power your RV or Outdoor Activity with increased efficiency due to reduced weight
and size as compared to lead-acid batteries.
and size as compared to lead-acid batteries.
Solar Residential Off-grid Appliances
Rechargeable lithium batteries are the best match for solar panels due to how they charge, and how fast. Solar panels produce low resistance charging, which is what lithium batteries require. In addition, lithium batteries charge quickly – allowing you to maximize the potential solar power storage from each day of sunlight.
Trolling Motor/ Kayak/Fishing Boats
Upgrading your boat to a long-lasting rechargeable lithium battery gives you years of reliable motor starts at a fraction of the weight of a traditional lead-acid battery.
Whether you need to power a small trolling motor, or power all of the conveniences of home on a yacht, lithium batteries are
capable and dependable.
Whether you need to power a small trolling motor, or power all of the conveniences of home on a yacht, lithium batteries are
capable and dependable.
Certificate
The company has been certified by
TUV, UL, CE, CSA, CEC, JET,
etc.
At present, it has customers in more than 50 countries and regions, The cumulative production capacity in the past 5 years is greater
than 300MWh, <0.3% after sale problem in 5 years.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
