Quick Details
-
Customized support:
-
SIZE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lingman
-
Model Number:
-
G500DC-230
-
Product Name:
-
Pneumatic Chuck
-
Stroke:
-
220mm
-
Allowable pressure:
-
0.3-0.9MPa
-
Clamping range:
-
8-228 mm
-
Central height:
-
315 mm
-
Rotational inertia:
-
4.18kg.㎡
-
Whole unit weight:
-
245kg
-
Central diameter:
-
230mm
-
Application:
-
Laser pipe cutting machine
Quick Details
-
Number of Jaws:
-
4
-
Material:
-
Stainless steel
-
Warranty:
-
1 YEAR
-
Customized support:
-
SIZE
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lingman
-
Model Number:
-
G500DC-230
-
Product Name:
-
Pneumatic Chuck
-
Stroke:
-
220mm
-
Allowable pressure:
-
0.3-0.9MPa
-
Clamping range:
-
8-228 mm
-
Central height:
-
315 mm
-
Rotational inertia:
-
4.18kg.㎡
-
Whole unit weight:
-
245kg
-
Central diameter:
-
230mm
-
Application:
-
Laser pipe cutting machine
Product Overview

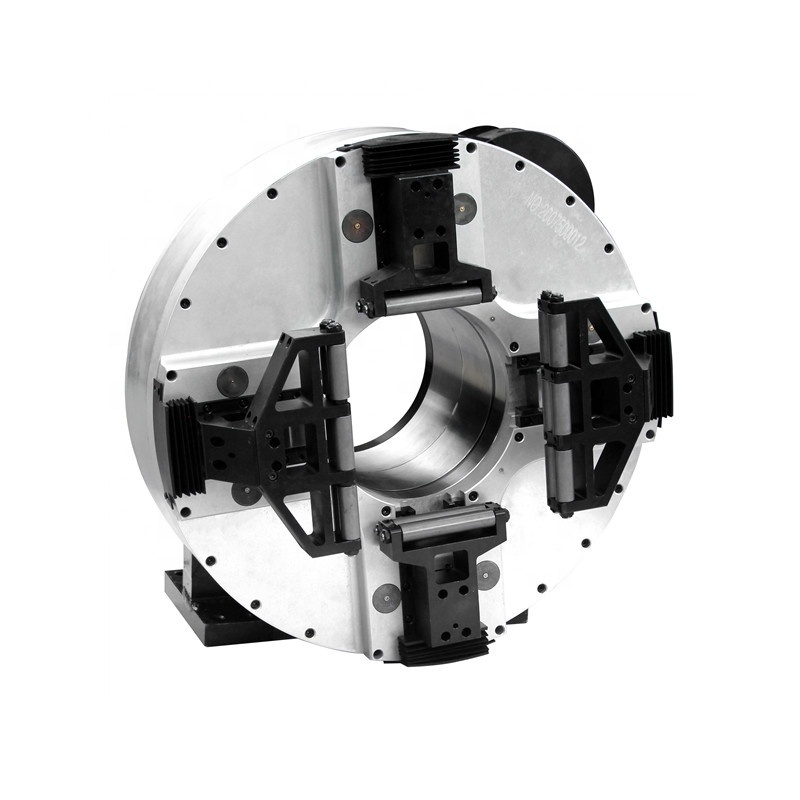

Single Bearing Full Stroke Main Chuck of Laser Dedicated Pipe Cutter
This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake.
The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model
|
Stroke
|
Max clamping force
|
Allowable pressure
|
Central diameter
|
Clamping range
|
Central height
|
Moment of inertia
|
Weight
|
|
G500DC-230
|
210mm
|
1.5KN
|
0.3-0.9MPa
|
Φ230mm
|
Φ8-Φ228mm
|
315mm
|
4.18KG.M2
|
245KG
|
