Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Contemporary
-
Type:
-
Electric lifting platform, Electric hydraulic lifting platform
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XROAD
-
Model Number:
-
/
-

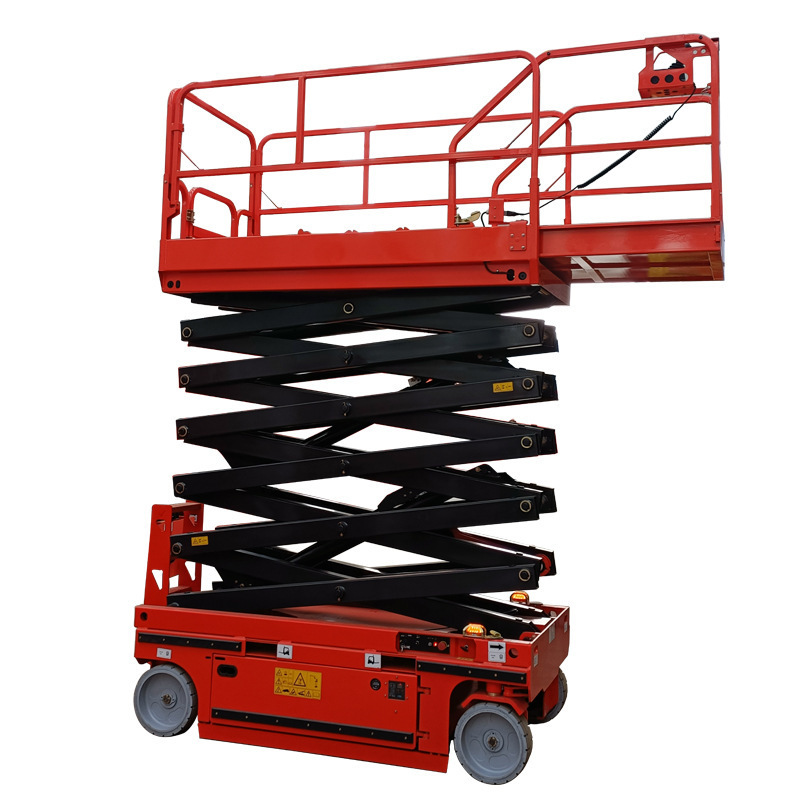

Product name:
-
electric scaffolding
-
Material:
-
Manganese steel
-
Voltage:
-
220V
-
Electric power:
-
4000W
-
Color:
-
Blue/red/customize
-
Rated load:
-
230-450(kg)
-
Bearing:
-
500kg
-
Min height:
-
1840(mm)
-
Keyword:
-
electric scaffolding for construction
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
3D model design
-
Application:
-
Warehouse
-
Design Style:
-
Contemporary
-
Type:
-
Electric lifting platform, Electric hydraulic lifting platform
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XROAD
-
Model Number:
-
/
-
Product name:
-
electric scaffolding
-
Material:
-
Manganese steel
-
Voltage:
-
220V
-
Electric power:
-
4000W
-
Color:
-
Blue/red/customize
-
Rated load:
-
230-450(kg)
-
Bearing:
-
500kg
-
Min height:
-
1840(mm)
-
Keyword:
-
electric scaffolding for construction
Products details
|
PRODUCT PARAMETER
|
|
|
|
|
||||
|
Model
|
HX0608G
|
HX0810G
|
HX1214G
|
HX1416G
|
||||
|
SIZE
|
|
|
|
|
||||
|
Max working height
|
8m
|
10m
|
14m
|
15.8m
|
||||
|
Max platform height
|
6m
|
8m
|
11.8m
|
13.8m
|
||||
|
Platform size
|
2.27*1.21*1.1m
|
2.27*1.21*1.1m
|
2.27*1.21*1.1m
|
2.27*1.21*1.1m
|
||||
|
Whole size(fold)
|
2.43*1.21*1.67m
|
2.27*1.21*1.8m
|
2.27*1.21*1.93m
|
2.27*1.21*2.06m
|
||||
|
Whole size(unfold)
|
2.43*1.21*2.22m
|
2.43*1.21*2.35m
|
2.43*1.21*2.6m
|
2.43*1.21*2.6m
|
||||
|
Platform extension size
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
||||
|
Mix ground clearance
(Collapse status)
|
0.1m
|
0.1m
|
0.1m
|
0.1m
|
||||
|
Mix ground clearance
(Lifting status)
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
||||
|
Wheelbase
|
2.22m
|
2.22m
|
2.22m
|
2.22m
|
||||
|
Performance
|
|
|
|
|
||||
|
Safe working load
|
450kgs
|
450kgs
|
320kgs
|
230kgs
|
||||
|
Extended Platform
Safe Working Load
|
113kgs
|
113kgs
|
113kgs
|
113kgs
|
||||
|
Min turning radius
|
0/2.2m
|
0/2.2m
|
0/2.2m
|
0/2.2m
|
||||
|
Drive motor
|
24v/4.5kw
|
24v/4.5kw
|
24v/4.5kw
|
24v/4.5kw
|
||||
|
Speed(Collapse status)
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
||||
|
Speed(Lifting status)
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
||||
|
Ascending/Descending Speed
|
95/80 sec
|
95/80 sec
|
95/80 sec
|
95/80 sec
|
||||
|
Mix gradeability
|
25%
|
25%
|
25%
|
25%
|
||||
|
Maximum allowable angle
|
2°/3°
|
2°/3°
|
2°/3°
|
2°/3°
|
||||
|
Dynamical system
|
|
|
|
|
||||
|
Battery
|
4*6v/200ah
|
4*6v/200ah
|
4*6v/200ah
|
4*6v/200ah
|
||||
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
||||
|
Weight
|
|
|
|
|
||||
|
Whole weight
|
2250kgs
|
2350kgs
|
3000kgs
|
3670kgs
|
||||
