Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuxing
-
Overall Dimensions:
-
4500*1400*2000mm
-
Embroidery Area:
-
3.35m
-
Weight (KG):
-
3200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
needle space:
-
50.8mm
-
Function:
-
car mat/garments/jackets/handbags/winter pajamas
-
Computer:
-
Dahao
-
Max. speed:
-
1000rpm
-
Certification:
-
ISO,CE
Quick Details
-
Maximum Speed:
-
1000 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
50.8mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuxing
-
Overall Dimensions:
-
4500*1400*2000mm
-
Embroidery Area:
-
3.35m
-
Weight (KG):
-
3200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
needle space:
-
50.8mm
-
Function:
-
car mat/garments/jackets/handbags/winter pajamas
-
Computer:
-
Dahao
-
Max. speed:
-
1000rpm
-
Certification:
-
ISO,CE
USES: garments,home textile,chiffon,bags,cushion,ottomans and mark quilting and
embroidery production.

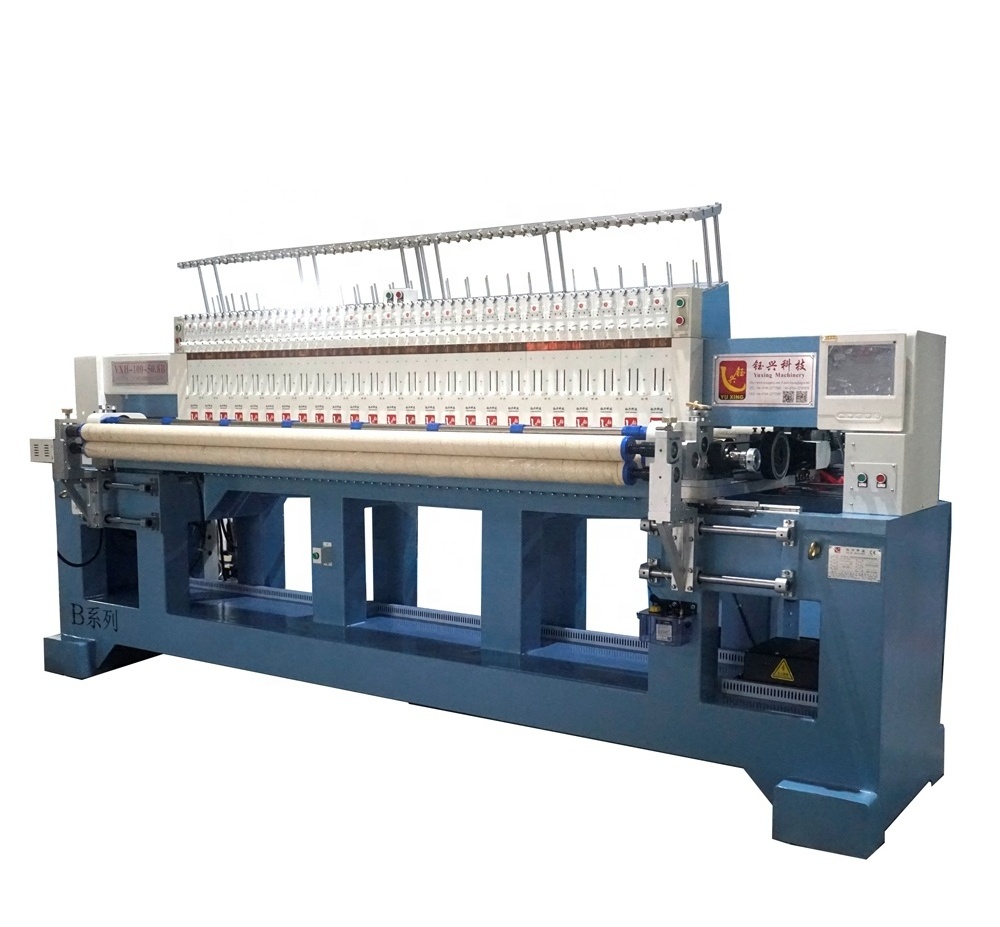

Compare with common embroidery machine, quilting and embroidery machine have
following advantages:
1.High efficiency and more function and the quilting design connect no line,jump stitch,leak stitch.
2.It can quilting and embroidery both together.
3.Leather fabric also can quilted.
4.High output.
5.The machine operation in double side and easy threading.
6.Auto stop system when thread is broken,auto and manual fill-stitch function.
7.Automatic lubrication system.
Specification :
Product Name |
Computer Quilting and Embroidery Machine |
Model |
YXH-100 -50.8B |
Size(L*W*H) |
4500 * 1400 * 2000mm |
Weight |
3200 kg |
Q uilting width |
2550mm |
Needle space |
50.8mm |
X-axis movement |
254 |
Head quantity |
25 pieces |
Rotating shuttle |
B ig rotating shuttle |
Quilting thickness |
20-300g |
Stitch |
B inary system:0.15-12.7mm |
Needle storage capacity |
120,000 |
Pattern storage capacity |
960 |
Needle type |
#14,#16 |
Principal drive |
S ervo motor drive |
Rated voltage(AC) |
As required |
Power |
5 KW |
Special feature:
- Unique quilting and embroidery drawing and plate making function, and immediately drawing and proofing efficient function.Compatible with the general embroidery machine function and embroidery machine plate reading function in the same industry.
- Precision finishing,and no need to modify the pattern,the difference between the finished patterns with the computer-ready patterns is tiny.
- Advance computer control and mechanical manufacturing technology,to ensure that the noise of the machine is very small.
- The head of quilting and embroidery machine has a simple structure,reliable performance and easy maintenance features.
- Taking the big rotating shuttle,the max high speed can reach 850r/min.
- Saddling rack, roller and principal motors are driven by servo equipment.
- 360° quilting and embroidery,limitless multi-span and independent quilting and embroidery.
- Stitch can be adjusted and pattern compensation function,an effective solution for graphical variant when quilting and embroidery thick material.
- Auto-stop system when thread is broken,auto and manual fill-stitch function.
- Automatic lubrication system.
- Machine head can be chosen randomly for quilting and embroidery.
- Ringing notice when start machine.

Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
- Voltage : Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms : TT:30% in advance,70% was paid off before delivery.
