Quick Details
-
Brand Name:
-
Hitop
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
3195*1085*1995mm
-
Weight (KG):
-
2650 kg
-
Product Name:
-
Battery electric forklift truck
-
Standard lifting:
-
3m
-
Max. lifting height:
-
6m
-
Tire type:
-
Solid tyres
-
Loading Capacity:
-
1.5 ton 2 ton 2.5 ton 3 ton 5 ton
-
Model:
-
CPD15/20/25/30/34/40/50
-
Brand:
-
Hitop
-
Keywords:
-
Electric forklift
-
Weight:
-
4450kg
-
Motor:
-
AC motor
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hitop
-
Fork Length:
-
1070mm
-
Fork Width:
-
100mm
-
Overall Dimensions:
-
3195*1085*1995mm
-
Weight (KG):
-
2650 kg
-
Product Name:
-
Battery electric forklift truck
-
Standard lifting:
-
3m
-
Max. lifting height:
-
6m
-
Tire type:
-
Solid tyres
-
Loading Capacity:
-
1.5 ton 2 ton 2.5 ton 3 ton 5 ton
-
Model:
-
CPD15/20/25/30/34/40/50
-
Brand:
-
Hitop
-
Keywords:
-
Electric forklift
-
Weight:
-
4450kg
-
Motor:
-
AC motor
Products Description

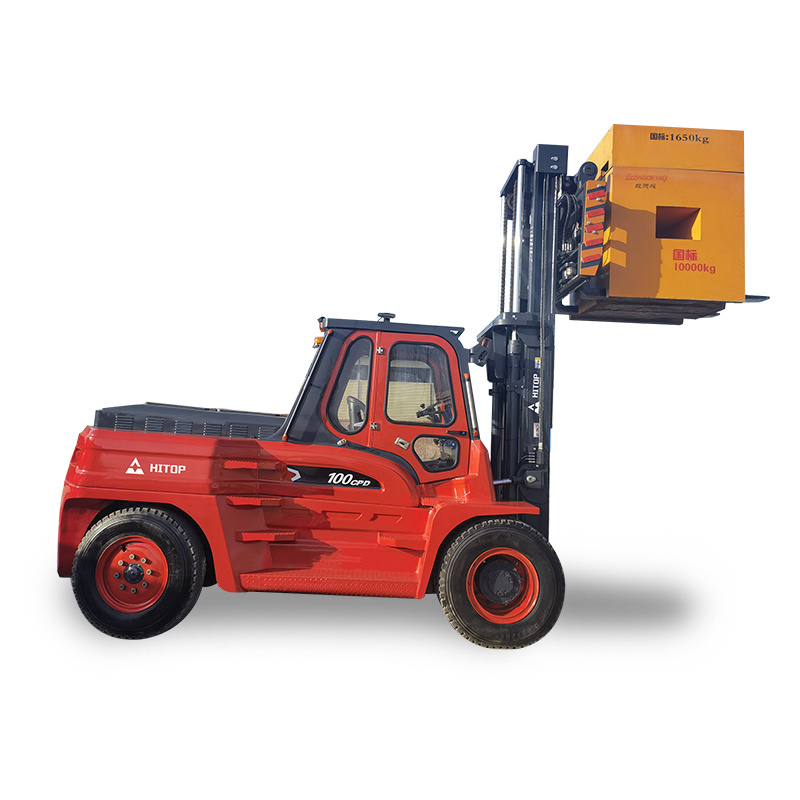

7 Ton 10 Ton Heavy Duty Electric Forklift Truck Container Forklift 5 Ton 6 Ton Li-ion Battery Forklift
Product Details
Product Specification
|
Model
|
|
|
CPD16F
|
CPD16
|
CPD20H
|
CPD20E
|
CPD20
|
|
|
Power type
|
|
|
Battery
|
Battery
|
Battery
|
Battery
|
Battery
|
|
|
Rated load
|
|
KG
|
1500
|
1600
|
2000
|
2000
|
2000
|
|
|
Length
|
With fork L1
|
mm
|
3040
|
3040
|
3120
|
3120
|
3380
|
|
|
|
Without fork L2
|
|
1970
|
1970
|
2050
|
2050
|
2310
|
|
|
|
Overall height (mast lowered) H1
|
|
1960
|
1960
|
2000
|
2000
|
2000
|
|
|
|
Overall height to overhead guard H2
|
|
2010
|
2010
|
2000
|
2000
|
2145
|
|
|
|
Overall height
(mast extend) H3 |
|
4050
|
4050
|
3800
|
3850
|
3995
|
|
|
Distance from seat to top light L3
|
|
|
1000
|
1000
|
1020
|
1020
|
1020
|
|
|
Wheel base L4
|
|
|
1260
|
1260
|
1400
|
1400
|
1515
|
|
|
Max lifting height H
|
|
|
3000
|
3000
|
3000
|
3000
|
3000
|
|
|
Min Turning radius WA
|
|
|
2100
|
2100
|
1950
|
1950
|
2050
|
|
|
Max lifting speed without goods
|
|
mm/s
|
300
|
300
|
350
|
350
|
400
|
|
|
Max lifting speed with full goods
|
|
|
260
|
260
|
300
|
300
|
300
|
|
|
Max climbing angle
|
|
%
|
≤15
|
≤15
|
≤10
|
≤10
|
≤15
|
|
|
Whole weight
|
|
KG
|
2650
|
2790
|
3100
|
3200
|
4050
|
|
|
Tyre type (Front/Rear)
|
|
|
Solid tyre
|
Solid tyre
|
Solid tyre
|
Solid tyre
|
Solid tyre
|
|
|
Front Tyre
|
|
|
18×7-10
|
18×7-10
|
18*7 -10
|
18*7 -10
|
7.00-12
|
|
|
Rear Tyre
|
|
|
16×6-8
|
16×6-8
|
18*6-8
|
18*6-8
|
18x7-8
|
|
|
Hand Brake
|
|
|
Hydrauli
Pedal
|
Hydraulic Pedal
|
Hydraulic Pedal
|
Hydraulic Pedal
|
Hydraulic Pedal
|
|
|
Brake type
|
|
|
M-Hand
|
M-Hand
|
M-Hand
|
M-Hand
|
M-Hand
|
|
|
Battery Volt/ capacity
|
|
V/Ah
|
48V/230
|
48V/320
|
48/400
|
48/400
|
48/500
|
|
|
Driving motor power
|
|
Kw
|
6.5AC
|
6.5AC
|
7.5AC
|
7.5AC
|
11AC
|
|
|
Oil pump motor power
|
|
|
5.5DC
|
10AC
|
10AC
|
10AC
|
12.0AC
|
|
Mini Forklift
Features
High safety
1. Standard steering wheel start steering function to reduce steering operation steps.
2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact.
3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision.
4. Optimized battery layout and counterweight design to increase rear vision.
5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.
5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.
Human comfort operation
1. Tailless body structure, low center of gravity and high lateral stability.
2. The rear axle rotation point is set high to improve the lateral stability of the vehicle.
3. Driver assistant technology, it monitors the forklift's speed and steer angles.
If the truck is moving too fast, the system will automatically decelerate the forklift truck, avoid the incorrect operations to cause a forklift to roll sideways or tip forwards or backwards
Simpler maintenance
1. Equipped with a large-screen LCD display instrument, which can intuitively display the vehicle running status, with fault
display and misoperation alarm functions.
display and misoperation alarm functions.
2. Remove the rear cover of the counterweight, and you can directly inspect theelectrical control.
High reliability
1. Both driving and pump motors are maintenance-free AC motors.
2. International famous brand electric motor controller (SANTROLL, INMOTION, ZAPI, CURTIS, etc.), which is superior in intelligence.
3. Long operational life.
3. Long operational life.
Environment Friendliness
1. Zero emission, no pollution.
2. Low noise, quiet.
3. Energy efficiency, super low cost power consumption.
4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy saving, and working hour of the battery life is extended by about 10%~15%.
4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy saving, and working hour of the battery life is extended by about 10%~15%.
