Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JIAOTAOTAO
-
Model Number:
-
Kaptons tape
-
Thickness:
-
0.05mm
-

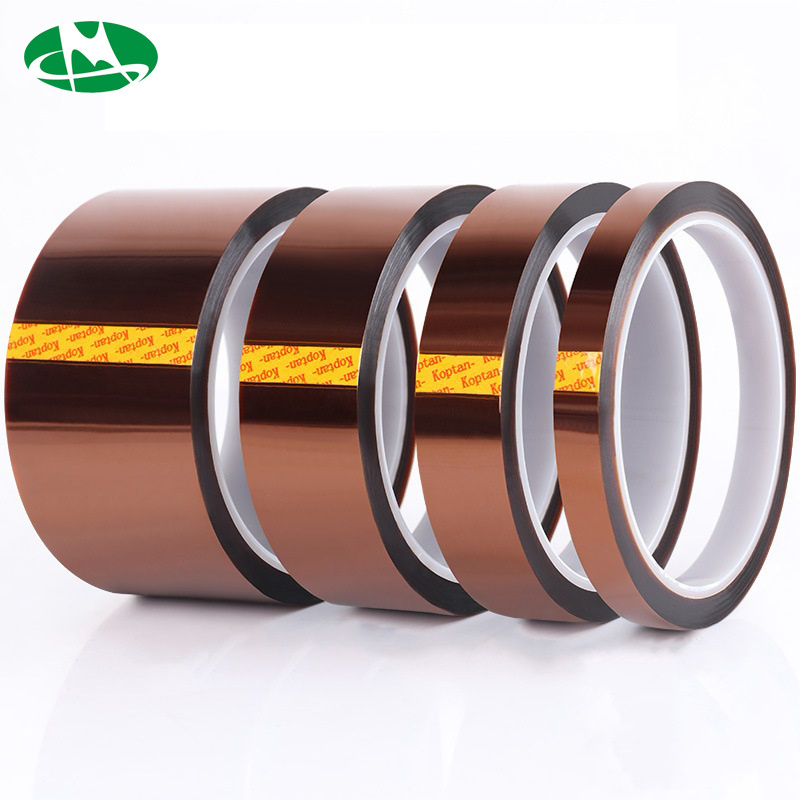

Product name:
-
Polyimide adhesive tape
-
Thickness (mm):
-
0.03mm,0.04mm,0.05mm,0.06mm,0.08mm
-
Length(m):
-
33m/66m,custom
-
Tensile strength:
-
14(kg/25mm)
-
Temperature resistance(℃):
-
320℃
-
Adhesion:
-
350g-650g(N/25mm)
-
OEM:
-
OEM Availabe
-
Certificates:
-
ISO9001
-
Temperature resistance:
-
80-260C
-
Glue:
-
Silicone Glue
Quick Details
-
Adhesive:
-
Silicone
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JIAOTAOTAO
-
Model Number:
-
Kaptons tape
-
Thickness:
-
0.05mm
-
Product name:
-
Polyimide adhesive tape
-
Thickness (mm):
-
0.03mm,0.04mm,0.05mm,0.06mm,0.08mm
-
Length(m):
-
33m/66m,custom
-
Tensile strength:
-
14(kg/25mm)
-
Temperature resistance(℃):
-
320℃
-
Adhesion:
-
350g-650g(N/25mm)
-
OEM:
-
OEM Availabe
-
Certificates:
-
ISO9001
-
Temperature resistance:
-
80-260C
-
Glue:
-
Silicone Glue
Production Process of Polyimide Tape
.
1.Coating
2.Jumbo roll
3.Rewinding 4.Slitting 5.Packing
Technical Datas of Polyimide Tape
|
Polyimide Tape(We can make different sizes)
|
|
|
|
|
||||
|
Backing
|
Polyimide Film
|
|
|
|
||||
|
Adhesive
|
Silicone Adhesive
|
|
|
|
||||
|
Total Thickness
|
60 micron
|
|
|
|
||||
|
Application
|
For insulating electric and electronic components
|
|
|
|
||||
|
Specification
|
PKT60
|
|
PKT85
|
|
||||
|
Total thickness
|
0.06mm (60 micron)
|
|
0.085mm (85micron)
|
|
||||
|
Adhesive Strength
|
6.5N/25mm
|
|
5-6N/25mm
|
|
||||
|
Tensile strength
|
14KG/25mm
|
|
19-22kg/25mm
|
|
||||
|
Elongation
|
65%
|
|
≥50%
|
|
||||
|
Anti corrosive
|
1.0
|
|
--
|
|
||||
|
Temperature resistance
|
260°
|
|
260°
|
|
||||
|
voltage breakdown
|
6.5KV
|
|
10KV
|
|
||||
|
Length
|
33M
|
|
33M
|
|
||||
|
Width
|
0-500mm
|
|
0-500mm
|
|
||||
