Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
5900x2352x2393
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hysun
-
water-proof:
-
guaranteed
-
Quality:
-
CSC
-
Tare Weight:
-
2100 KGS
-
Standard:
-
ISO9001 Standard
-
Function:
-
Freezing
-
Size:
-
20'/40'
-
MAX payload(kg):
-
30480kg
Quick Details
-
Type:
-
Dry Container
-
Capacity:
-
33.2 CBM
-
External Dimensions(l x W x H)(mm):
-
6058x2438x2591
-
Internal Dimensions(l x W x H)(mm):
-
5900x2352x2393
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hysun
-
water-proof:
-
guaranteed
-
Quality:
-
CSC
-
Tare Weight:
-
2100 KGS
-
Standard:
-
ISO9001 Standard
-
Function:
-
Freezing
-
Size:
-
20'/40'
-
MAX payload(kg):
-
30480kg
Product Description

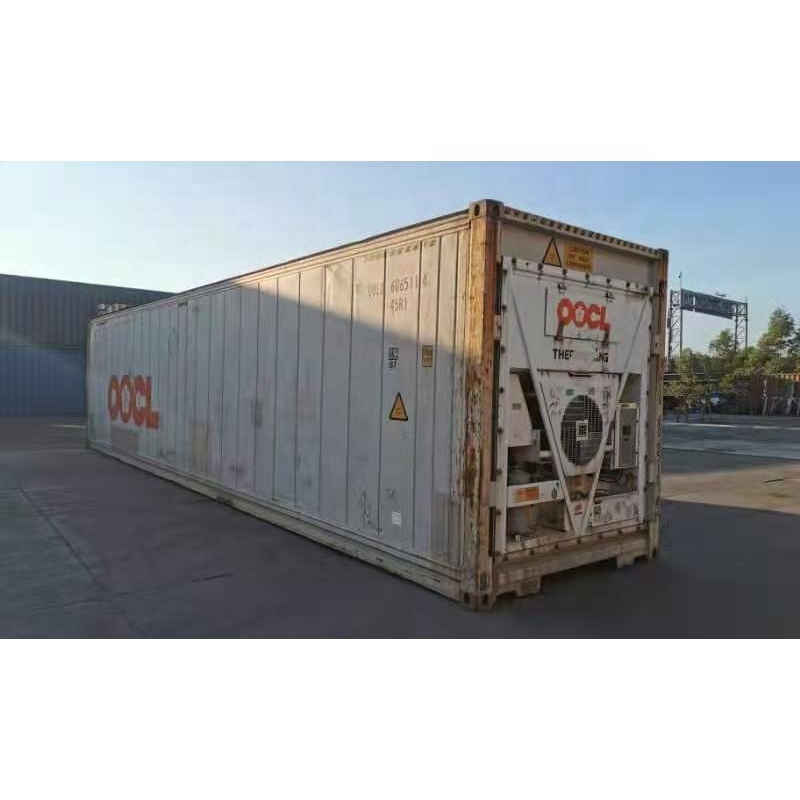

Hysun has used reefer container STOCKS in Qingdao, Shanghai, Tianjin, Ningbo and Guangzhou port.
All used
reefer
shipping container checked by third party and issue report, and we would provide you the actual photo for view before shipped .
Because the recent container price changes too fast, the price on the web page is for reference only, if you need to buy, please contact me directly to confirm
Specification
|
Spec
|
Length
|
Width
|
Heigh
|
Door Width
|
Door Height
|
Capacity
|
Tare Weight
|
Maxi Cargo
|
|
Reefer 20'
|
17' 8"
|
7' 5"
|
7' 5"
|
7' 5"
|
7' 3 "
|
1,000 Cft
|
7,040 Lbs
|
45,760 Lbs
|
|
|
5.425 m
|
2.275 m
|
2.260 m
|
2.258 m
|
2.216 m
|
28.3 Cu.m
|
3,200 Kgs
|
20,800 Kgs
|
|
Reefer 40'
|
37' 8"
|
7' 5 "
|
7' 2 "
|
7' 5 "
|
7' 0 "
|
2,040 Cft
|
10,780 Lbs
|
56,276 Lbs
|
|
|
11.493 m
|
2.270 m
|
2.197 m
|
2.282 m
|
2.155 m
|
57.8 Cu.m
|
4,900 Kgs
|
25,580 Kgs
|
|
Reefer 40' High Cube
|
37' 11"
|
7' 6"
|
8' 2"
|
7' 6"
|
8' 0"
|
2,344 Cft
|
9,900 Lbs
|
57,561 Lbs
|
|
|
11,557 m
|
2.294 m
|
2.500 m
|
2.294 m
|
2.440 m
|
66.6 Cu.m
|
4,500 Kgs
|
4,500 Kgs
|
Maritime Container Material List
|
Corner
|
ISO standard corner, 178x162x118mm
|
|
Floor Beam for long side
|
Steel: CORTEN A, thickness: 4.0mm
|
|
Floor Beam for short side
|
Steel: CORTEN A, thickness: 4.5mm
|
|
Floor
|
28mm, intensity: 7260kg
|
|
Column
|
Steel: CORTEN A, thickness: 6.0mm
|
|
Inner column for back side
|
Steel: SM50YA + channel steel 13x40x12
|
|
Wall panel-long side
|
Steel: CORTEN A, thickness: 1.6mm+2.0mm
|
|
Wall panel-short side
|
Steel: CORTEN A, thickness: 2.0mm
|
|
Door Panel
|
Steel: CORTEN A, thickness: 2.0mm
|
|
Horizontal beam for door
|
Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
|
|
Lockset
|
4 set container lock bar
|
|
Top Beam
|
Steel: CORTEN A, thickness: 4.0mm
|
|
Top panel
|
Steel: CORTEN A, thickness: 2.0mm
|
|
Paint
|
Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u
Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u
|
