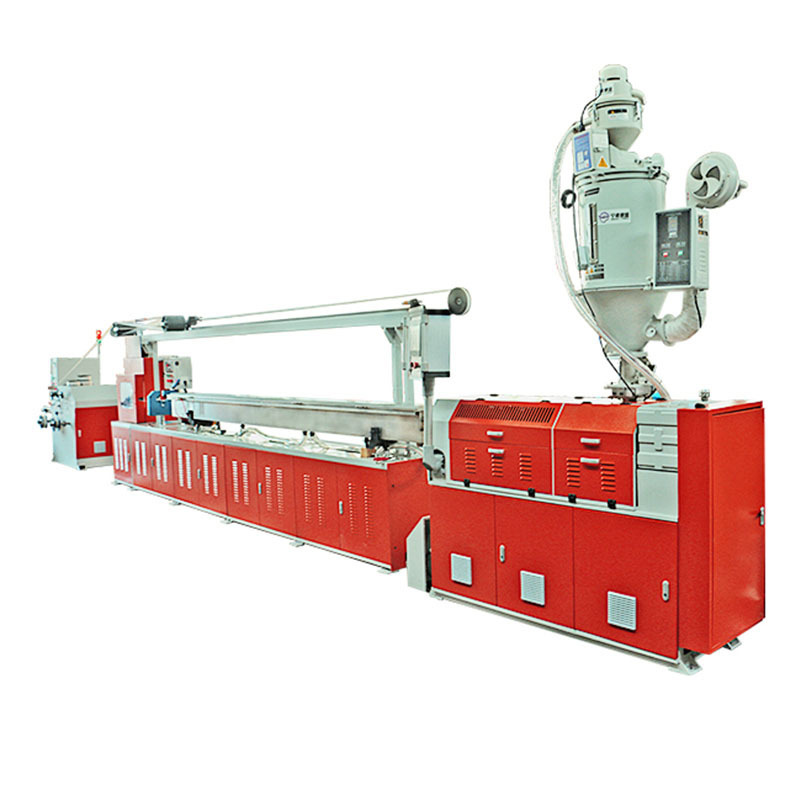

Symmetrical 3D Printer Filament Extruder PEEK PET Nylon Fiberglass Monofilament Yarn Extrusion Machine

Symmetrical 3D Printer Filament Extruder PEEK PET Nylon Fiberglass Monofilament Yarn Extrusion Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Screw Speed (rpm):: 450 rpm

Place of Origin:: Jiangsu, China

Brand Name:: GS-mach

Voltage:: 220V/380V

Dimension(L*W*H):: 12000*2100*2500 mm

Power (kW):: 30

Weight:: 1500 KG

Delivery:: 45 days

Feature:: peek monofilament extrusion machine

Description:: extruder filament line

Roundness tolerance:: 0.03mm

Roundness measuring:: X,Y Roundness laser device

Color:: Customised

Control system:: PLC control

Cooling:: Hot & Cold water cooling

Automatic Grade:: Automatic

Name:: symmetrical 3d printer filament extruder

Quick Details

Screw Design:: Single-screw

Screw L/D Ratio:: 28

Screw diameter (mm):: 45 mm

Screw Speed (rpm):: 450 rpm

Place of Origin:: Jiangsu, China

Brand Name:: GS-mach

Voltage:: 220V/380V

Dimension(L*W*H):: 12000*2100*2500 mm

Power (kW):: 30

Weight:: 1500 KG

Delivery:: 45 days

Feature:: peek monofilament extrusion machine

Description:: extruder filament line

Roundness tolerance:: 0.03mm

Roundness measuring:: X,Y Roundness laser device

Color:: Customised

Control system:: PLC control

Cooling:: Hot & Cold water cooling

Automatic Grade:: Automatic

Name:: symmetrical 3d printer filament extruder

Product Description

Symmetrical 3D Printer Filament Extruder PEEK PET Nylon Fiberglass Monofilament Yarn Extrusion Machine

3D printing is a revvolutionary technology since it began, which has became more and more popular for all kinds of industries. With the rise of 3D printing technology, our company developed the filament machine for 3D printing, and sold them to a lot of developed countries, such as France,UK,USA,Russia and so on, which had been very well received.

Product Name	Plastic extrusion machine to make filament for 3d printing
Processed Material	PLA ABS PA PET HIPS TPU TPR Etc (We can produce almost all the materials in market)
Machine Color	Any color as customer like
Capacity	15-30kg/h
Filament diameter	0.75mm or 2.85mm or 3.00mm
Tolerance	+/-0.03mm
Warranty	1 Year
Packing	Wooden cases

Our machine advantages:

1. Big capacity compared with other suppliers using the same model.
2. Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.
3. Both 1.75 and 3.00mm filament diameter.
4. It can process multi-materials like PLA ABS PET PA HIPS .
5. Easy operation: Delta PLC full-auto controlling system.
6. Stable quality: we have not received any passive talks from our customers.
7. Oversea service: installation, staff training and technical support.

Detailed Images

3d printer filament making machine 3d printing filament extruder/ extruding machine

The consists of our 3D printer filament extruder machine are as below:

Item	Equipment line	QTY/SET
1	Mixer	1
2	Hopper dryer	1
3-1	Single screw extruder	1
3-2	Die head	1
4	Water tank(hot and cold)	1
5	Tractor machine	1
6	Storage thread stand	1
7	Laser measuring diameter instrument	1
8	Rolling up machine	1
9	Vacuum Packing Machine	1

Machine Part: Single screw extruder

-----Screw
------Diameter:Φ45mm
------L/D=25:1
------Material of screw: 38CrMoALA

-----Barrel
------Material:38CrMoALA
------Barrel inner-surface treatment

-----Heating zone and power : 3 zones, 2.2kw/zone

-----Driving motor : AC variable "Delta"inventor,"WN"Motor

-----Control system : PLC controlled system

Machine Part: Die head

------Material 38CrMoALA,inner surface with precision polishing after hard chrome plating

------Mold structure:adopts high pressure volumetric mold,meet the high speed/precision production requirements

------Mold heater:Stainless steel heater

------Voltage plug:security against leakage protection plug

Machine Part: Water tanks

-----Hot water tank :
------1.5m.Material:S/S.
------Circulation water tank.
-----Cold water tank :
------2.5m.Material:S/S.
------Circulation water tank.

------Water inlet;1 1/2'',stainless steel stop valve
------Water outlet:1 1/2",stainless steel stop valve

Machine Part: Tractor machine

------Rubber wheels

------Driving motor:"Delta" servo motor

Machine Part: Rolling up machine

------Working speed:max 90m/min
------Rolling up tooling quantity:Double position winding axle
------Rolling up motor:frequency motor/driver*2 sets

Specifications

3d printer filament making machine 3d printing filament extruder/ extruding machine

We have several models for your choice, each one has different capacity, all depends on cutomers' needs.

Model	Power	Diameter	Capacity	Tolerance	Material
GSD-16	400W	1.75MM-3.00MM	1-2KG/H	0.05MM	PLA ABS PA PET HIPS TPU Etc.
GSD-35	4KW	1.75MM-3.00MM	8-15KG/H	0.03MM	PLA ABS PA PET HIPS TPU Etc.
GSD-45	7.5KW	1.75MM-3.00MM	15-30KG/H	0.03MM	PLA ABS PA PET HIPS TPU Etc.
GSD-65	15KW	1.75MM-3.00MM	30-50KG/H	0.03MM	PLA ABS PA PET HIPS TPU Etc.

Product Application

It is already widely used in health care, education, toys, building, automobile, electronics, and anime field.

Our Service

3d printer filament making machine 3d printing filament extruder/ extruding machine

Our service:

Before-sale
1. Introduce products and applications detain
2. Recommend suitable solution
3. Provide with reference in formation
4. Offer lab for test
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the project processing status
3. Offer other documents
A fter-sale
1. Provide with installation ,commissioning and training
2. Offer spare parts
3. Provide with necessary technical support for new application

Our customers:

Packing & Delivery

3d printer filament making machine 3d printing filament extruder/ extruding machine

All machine is wrapped by the plastic film and then packed in the wood cases.The wood cases will then packed in the containers.

Our Company

GS-mach is a professional plastic, rubber and chemicals machinery researcher, designer and manufacturer with CE&ISO9001 certificates.
Our products includ:
1. Plastic Extrusion Pelletizing Machines
2. 3D Printer Filament Extruder Machines
3. Plastic Recycling Machines
4. Rubber Processing Machines

Email: extruder1(at)njgsmach.com
TEL/WhatsApp/Wechat: +86 138 5189 0452
Mobile: 181 1401 5045
Company: Nanjing GS-mach Extrusion Equipment Co.,Ltd.
ADD: No.12 Shanghu Industrial Park, Jiangning Street, Jiangning District, Nanjing, China
