Quick Details
-
Material:
-
Steel
-
Brand Name:
-
Gooxi
-
Place of Origin:
-
Guangdong, China
-
Form factor:
-
4U Rackmount chassis
-
PSU Form Factor:
-
1U single or 1+1 Redundat
-
SGPIO:
-
Support
-
HDD Backplane:
-
12Gb/s SAS Expander Backplane
-
Cooling fans:
-
3x12038 hotswap fans
-
Hotswap Fans:
-
support
-
Top cover Tool-less:
-
support
Quick Details
-
Application:
-
Server
-
Type:
-
Rack
-
Form Factor:
-
ATX
-
Material:
-
Steel
-
Brand Name:
-
Gooxi
-
Place of Origin:
-
Guangdong, China
-
Form factor:
-
4U Rackmount chassis
-
PSU Form Factor:
-
1U single or 1+1 Redundat
-
SGPIO:
-
Support
-
HDD Backplane:
-
12Gb/s SAS Expander Backplane
-
Cooling fans:
-
3x12038 hotswap fans
-
Hotswap Fans:
-
support
-
Top cover Tool-less:
-
support

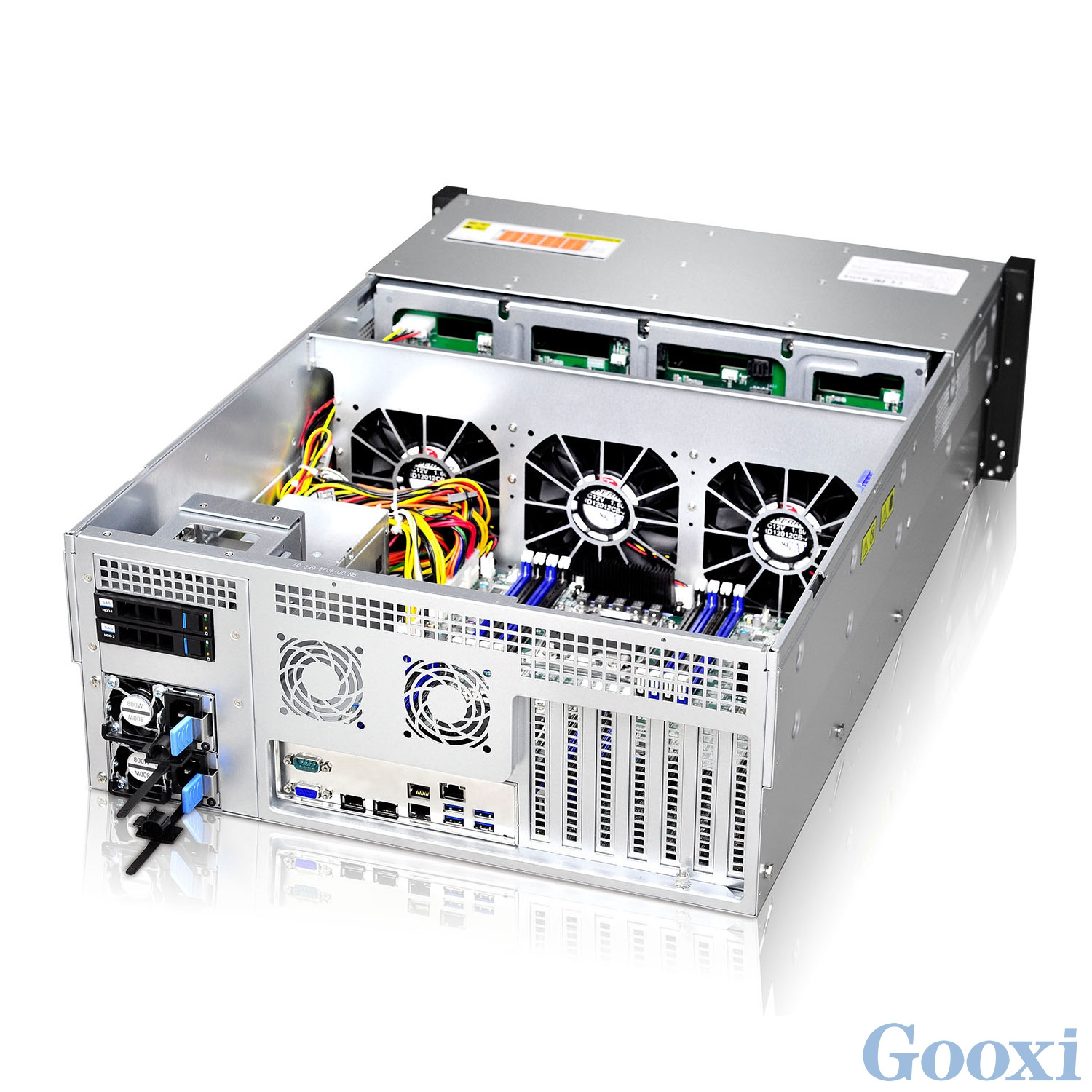

Introduce
● Serverboard supports up to standard EEB 12"x13" and backward supports to CEB
● Supports 7 x full height and full length PCIe cards
● Front 24x3.5" hot-swap HDDs and rear 12x3.5" hot-swap HDDs (2.5" HDD compatible), additional rear 2x2.5" hot-swap HDDs
● High-performance 8 x8038 cooling fans with anti-vibration mechanism
● Smart system fan controlled by intelligent temperature management
● Supports 2U Single PSU or 1+1 Redundant PSU
● 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
Product Paramenters
|
Chassis
|
Rackmount
|
|
Form Factor
|
4U
|
|

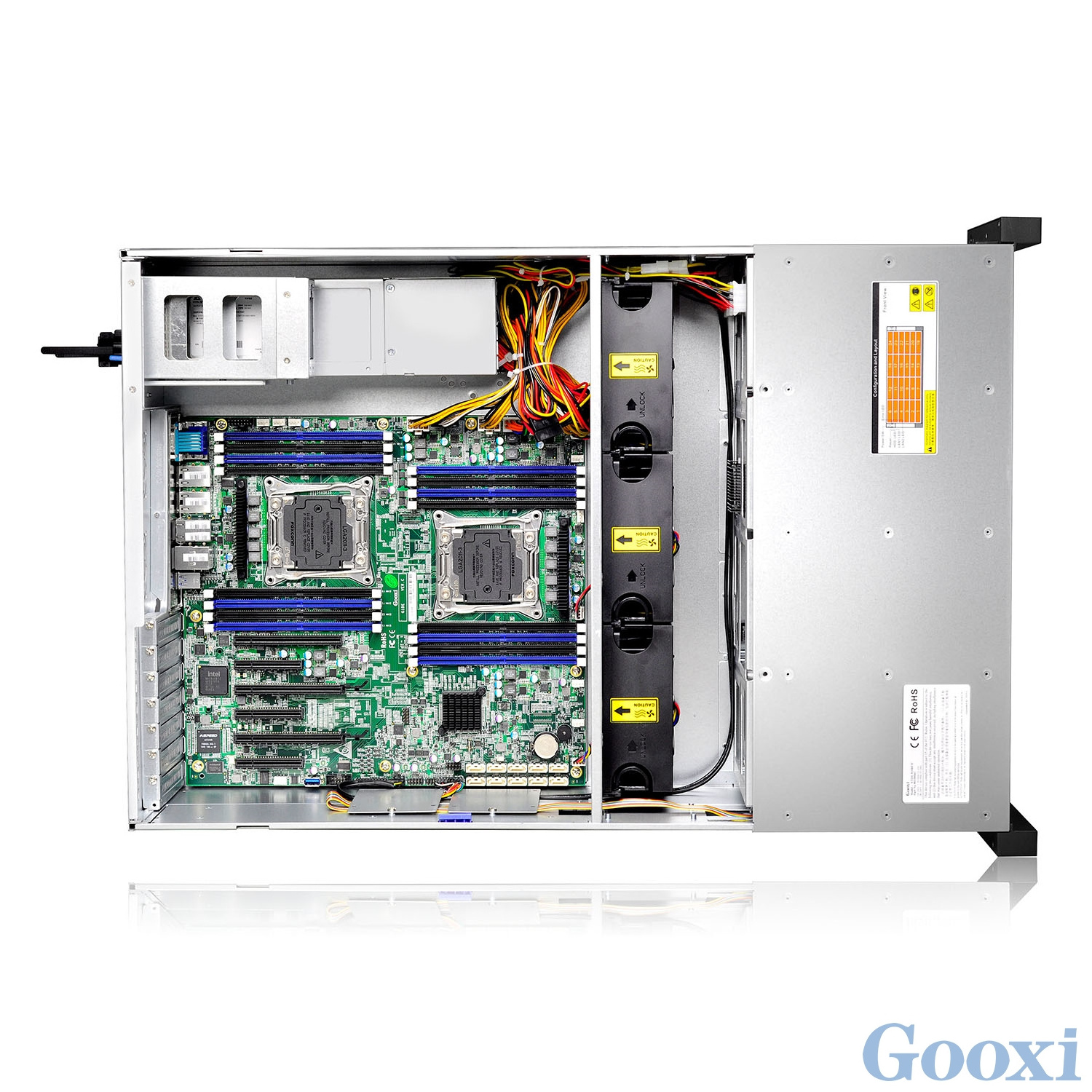

Serverboard
|
EEB (12"x13"), CEB (12"x10.5"), ATX (12"x9.6"), and microATX (9.6"x9.6")
|
|
PSU Form Factor
|
2U Single or 1+1 Redundant (CRPS)
|
|
Backplane SGPIO
|
Supports
|
|
HDD Backplane
|
24-port 3.5" 12Gb/s SAS Expander backplane
2-port 2.5" 12Gb/s SAS passive backplane (option) |
|
HDD Hot-swap
|
Supports SAS and SATA HDD
|
|
Hot-swap Fans
|
Supports
|
|
HDD Drive
|

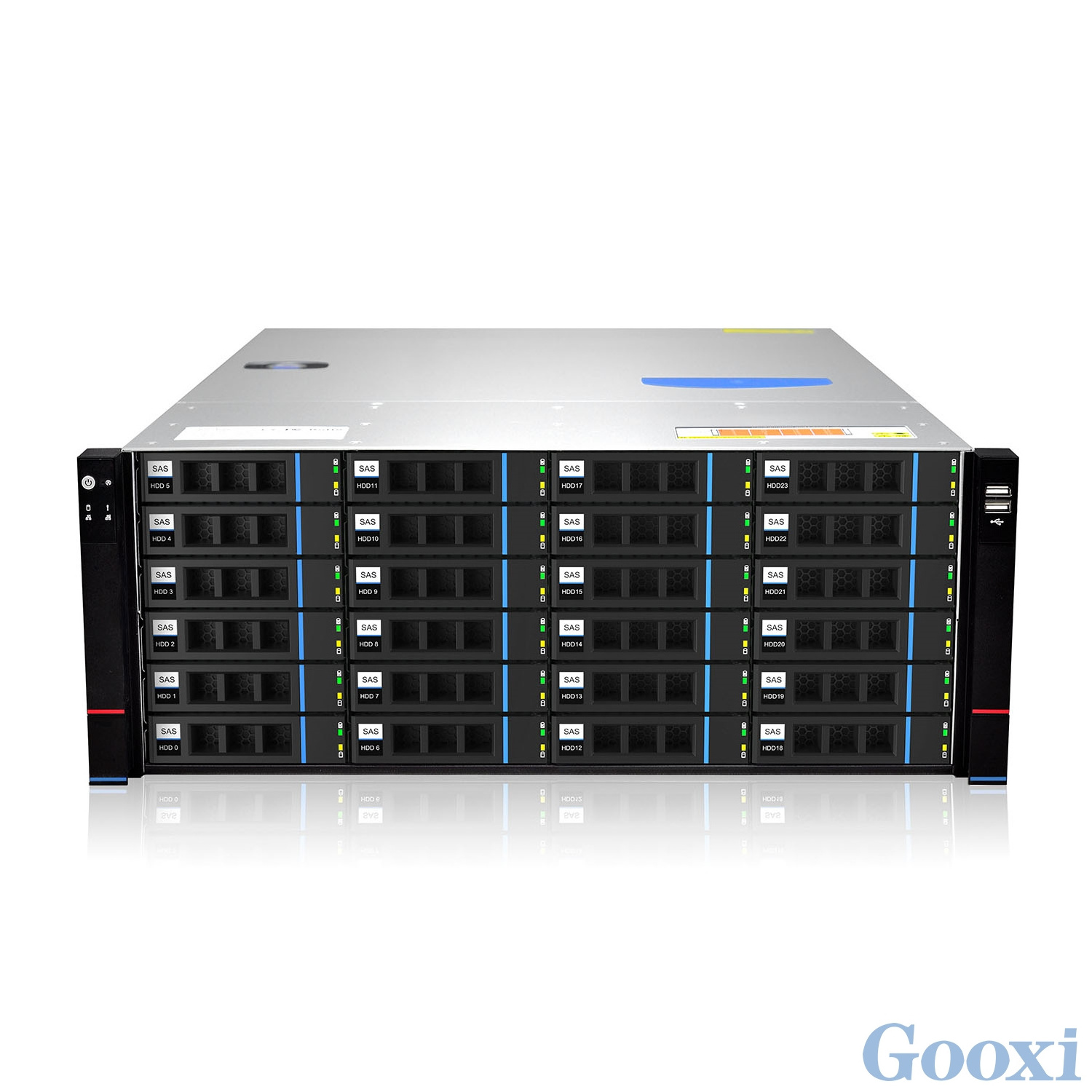

Front 24x3.5" Hot-swap HDDs (2.5" HDD compatible)
Rear 2x2.5" Hot-swap HDDs (option) |
|
Other Drive Bay
|
N/A
|
|
Cooling Fans
|
Default 3x12038 Hot-swap middle fans
|
|
Temperature Control
|
Supports system smart fan control by Serverboard
|
|
Air Duct
|
Optional
|
|
Expansion Slots
|
Supports 7x full-height full-length PCIe cards
|
|
Slide Rail
|
Optional
|
|
Indicators
|
2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
|
|
Tool-less
|
N/A
|
|
Metal Thickness
|
1mm thickness SGCC
|
|
Chassis Dimensions
|
670*444*177mm(DxWxH)
|
|
Net Weight
|
18 KG
|
|
Carton Dimensions
|
902*591*318mm(DxWxH）
|
|
Gross Weight
|
24 KG
|
|
Certification
|
CE, FCC, RoHS
|
