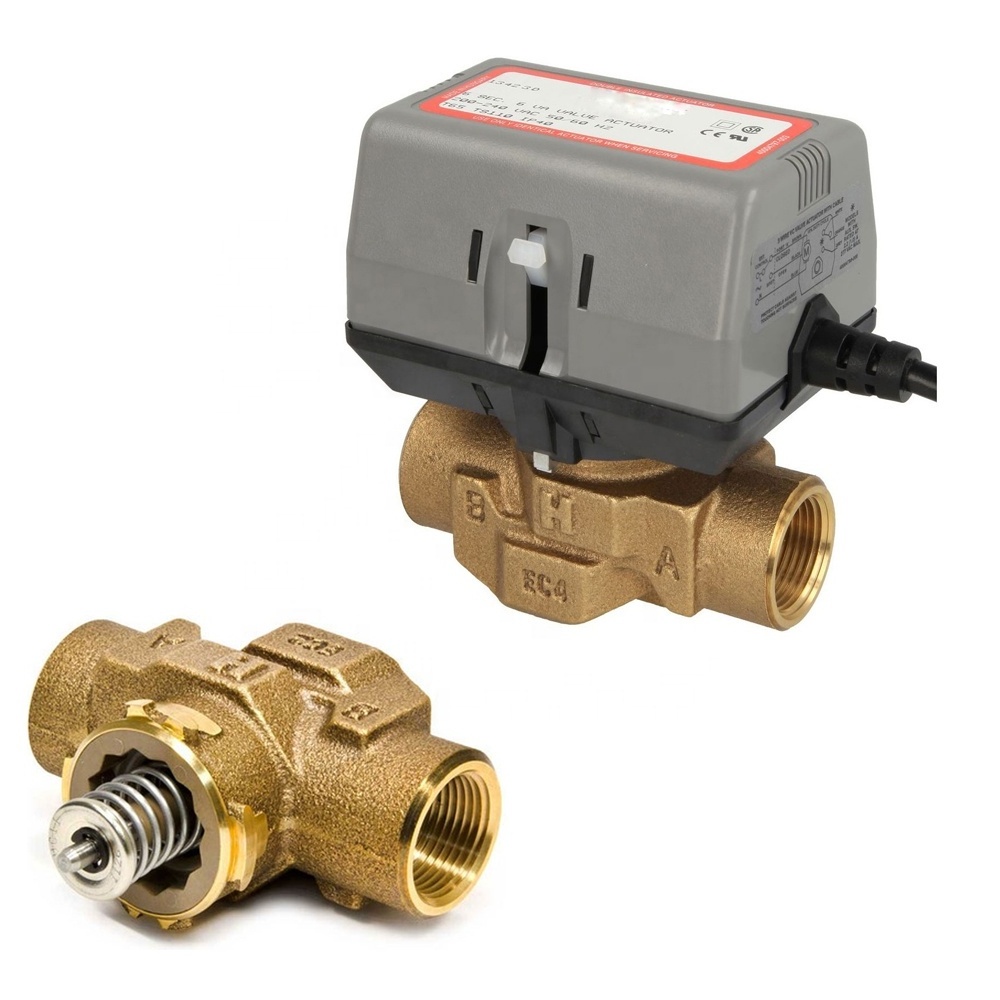

HVAC System Electric Actuator Brass Valve 2 Way DN20 motorized Valve for Fan Coil Units

HVAC System Electric Actuator Brass Valve 2 Way DN20 motorized Valve for Fan Coil Units

FOB Reference Price: Get Latest Price

≥100 Pieces

US $20.36

≥500 Pieces

US $18.98

≥10000 Pieces

US $6.98

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Neutral

Consumption:: 5W

Drive style:: Bi-direction reversible motor drive

Cooperate time with thermostat:: the valve open within 6s at 60HZ

N.W.(Kg)-Actuator:: 0.35

Medium:: Cool/hot water

Liquid temperature:: 1~95°C

Pressure(MPa):: 1.6

Environment temperature:: 0~65°C the max relative humidity, non-condensing

Storage temperature:: -20~65°C the max relative humidity, non-condensing

Product name:: motorized valve

Quick Details

Warranty:: 2 years

Place of Origin:: Fujian, China

Model Number:: HTW-V61

Brand Name:: Neutral

Consumption:: 5W

Drive style:: Bi-direction reversible motor drive

Cooperate time with thermostat:: the valve open within 6s at 60HZ

N.W.(Kg)-Actuator:: 0.35

Medium:: Cool/hot water

Liquid temperature:: 1~95°C

Pressure(MPa):: 1.6

Environment temperature:: 0~65°C the max relative humidity, non-condensing

Storage temperature:: -20~65°C the max relative humidity, non-condensing

Product name:: motorized valve

Product Description

HVAC System Electric Actuator Brass Valve 2 Way DN20 motorized Valve for Fan Coil Units

>> General

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body . The room temperature could be controlled in the set-point through turn-on or turn-off of valve.

This motorized valve include 2 way or 3 way choice with DN15, DN20 and DN25 options.

>> Models & Specifications of Actuator

Model			Rated Power Supply
HTW-V61-8503			AC220V±10%, 50/60Hz
HTW-V61-8203			AC110V±10%, 50/60Hz
HTW-V61-8003			AC24V±10%, 50/60Hz

>> Models & Specifications of Valve Body

Model	Configuration	Kvs	Connection Type	Differential Pressure(MPa)
HTW-V61-215	normally closed two-way	2.0	G1/2	0.20
HTW-V61-220	normally closed two-way	3.2	G3/4	0.10
HTW-V61-225	normally closed two-way	5.7	G1	0.06
HTW-V61-315	mixing three-way	3.2	G1/2	0.20
HTW-V61-320	mixing three-way	4.6	G3/4	0.10
HTW-V61-325	mixing three-way	4.8	G1	0.06

>> Technical parameters

• Consumption 5W
•Drive style Bi-direction reversible motor drive
•Cooperate time with thermostat the valve open within 6s at 60HZ
•N.W.(Kg)-Actuator 0.35
•Medium Cool/hot water
•Liquid temperature 1~95°C
•Pressure(MPa) 1.6
•Environment temperature 0~65°C the max relative humidity, non-condensing
•Storage temperature -20~65°C the max relative humidity, non-condensing

>> Wiring Diagram
