Quick Details
-
Brand Name:
-
KeepLiNK
-
Use:
-
Enterprise, Park, Office, Building
-
Device Type:
-
Network switch- 10 port poe switch
-
Operating temperature:
-
-10°C ~ +50°C
-
Power Input:
-
AC 100-240V 50/60Hz
-
Total power:
-
135W
-
Installation:
-
Desktop
-
PoE protocol:
-
IEEE802.3af&at
-
PoE distance:
-
max 250m
-
Chipset:
-
RTL
-
AI POE:
-
Auto reboot unresponse device
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
KP-9000-10GP-MAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KeepLiNK
-
Use:
-
Enterprise, Park, Office, Building
-
Device Type:
-
Network switch- 10 port poe switch
-
Operating temperature:
-
-10°C ~ +50°C
-
Power Input:
-
AC 100-240V 50/60Hz
-
Total power:
-
135W
-
Installation:
-
Desktop
-
PoE protocol:
-
IEEE802.3af&at
-
PoE distance:
-
max 250m
-
Chipset:
-
RTL
-
AI POE:
-
Auto reboot unresponse device

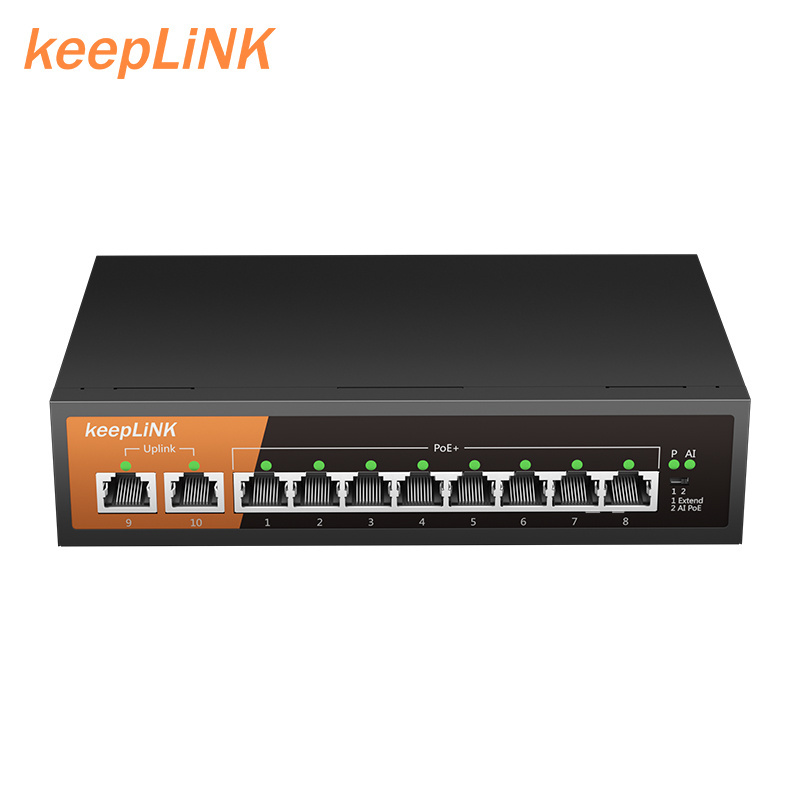

Smart 10 gigabit Ethernet switch 8 POE PoE+ 2 RJ45 uplink 100m/250m distance
Leading
manufacturer of
industrial and enterprise ethernet switches...
Intelligent IoT Cabinet,
4G router, PoE splitter, Fiber optical transceiver,
Fiber patch cable,
Media Converter
...
WE ARE AIM
TO BE YOUR BEST INDUSTRIAL NETWORKS SOLUTION PROVIDER
IN CHINA !
Product Description
Keeplink Industrial Ethernet Switch.
Why buy our devices ?
1. 8x10/100/1000M RJ45 POE with 2x10/100/1000M RJ45 uplink
2. Realtek chipest solution
3. AC100-240V wide range power supply
4. PoE match IEEE802.3af&at standard, 120W POE support, single port support 15W and 30W
5. 6kv/4kv surge protection
6. 8KV/15KV ESD
Plug and play, suitable for various home environments and enterprise use environments.
..
.
|
Provider Mode Ports
|
|
|
|
Port type and quantity:
|
8x 10/100/1000 Base-TX, 2x10/100/1000Base-X SFP port
|
|
|
Management Port
|
Support console
|
|
|
Electrical Specifications
|
|
|
|
Input voltage
|
AC 100-240V 50/60Hz
|
|
|
Power consumption:
|
Max. 135 W at PoE
|
|
|
PoE Support
|
|
|
|
PoE port
|
1-8
|
|
|
PoE Protocol
|
802.3af，802.3at
|
|
|
Pin Assignment
|
1,2+;3,6-
|
|
|
DIP switches
|
|
|
|
1
|
Port 1-8 250m long distance transmission
|
|
|
2
|
Auto detect and reboot the unresponsive PoE devices for recovery
|
|
|
Layer 2 Switching
|
|
|
|
Switching capacity
|
20Gbps
|
|
|
Packet forwarding rate
|
14.88Mpps
|
|
|
MAC address table
|
2K
|
|
|
Buffer
|
1M
|
|
|
Jumbo frame
|
2K bytes
|
|
|
Forwarding delay
|
＜10us
|
|
|
Environment
|
|
|
|
Temperature
|
Operating Temperature：-10ºC to 50ºC; Storage Temperature：-40ºC to 75ºC
|
|
|
Relative humidity
|
Operation Humidity：10% to 90% RH; Storage Humidity：5% to 90% RH
|
|
|
Heat Dissipation Method
|
Fanless, natural dissipation
|
|
|
MTBF
|
100,000H
|
|
