Hot Sale Excavator Vibro Hammer V-450 Pile Hammer for Sheet Pile Concrete Pile

Hot Sale Excavator Vibro Hammer V-450 Pile Hammer for Sheet Pile Concrete Pile

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YONGAN

Model Number:: V-450

Weight:: 2000kgs

Dimension(L*W*H):: 1600*900*2400mm

Certification:: ISO9001/CE

Excavator vibro hammer Eccentric Moment:: 8.5kgm

Frequency of Excavator vibro hammer:: 2400rpm

Hydraulic system operation pressure:: 300bar

Hydraulic system oil flow:: 280lpm

Excavator vibro hammer total weight:: 1900kg

Excavator vibro hammer Size:: 1600*900*2400mm

Excavator vibro hammer clamp model:: C16/500kg

Excavator vibro hammer vice arm size:: A250/600kg

Quick Details

Efficiency:: High Efficiency

Piling Speed(m/min):: depend on geological condition

Place of Origin:: Fujian, China

Brand Name:: YONGAN

Model Number:: V-450

Weight:: 2000kgs

Dimension(L*W*H):: 1600*900*2400mm

Certification:: ISO9001/CE

Excavator vibro hammer Eccentric Moment:: 8.5kgm

Frequency of Excavator vibro hammer:: 2400rpm

Hydraulic system operation pressure:: 300bar

Hydraulic system oil flow:: 280lpm

Excavator vibro hammer total weight:: 1900kg

Excavator vibro hammer Size:: 1600*900*2400mm

Excavator vibro hammer clamp model:: C16/500kg

Excavator vibro hammer vice arm size:: A250/600kg

Product Description

Product Description

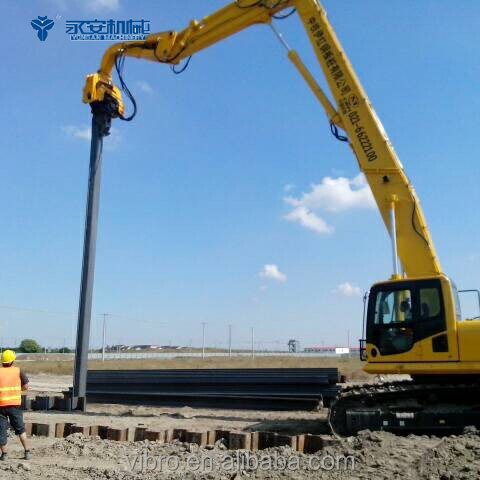

Excavator mounted vibratory hammer V-450 can be applied for a wide range of working enviroment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.

Technical Data

Excavator Mounted Vibratory Hammer V-450
Eccentric Moment	8.5 KGM
Frequency	2400 RPM
Centrifugal Force	642 KN
Hydraulic system oil operation pressure	300 BAR
Weight (excluding clamp and vice arm)	1900 KG
Excavator Weight	40-45 TON
Size	16009002400 MM
Clamp model/weight	C16/500 KG
Vice arm model/ weight	A250/600 KG
Hydraulic system oil flow	280 LPM

Main Features

1) 360 degrees rotation device of middle bracket
2) All kinds pile driving , sheet pile, tube pile, H beams, steel sheet.
3) Best mobility in narrow place compared with crane
4) High shear load of heavy duty elstomer cushion which prevent the transmission of vibration to excavator.
5) easy installation and control. Minimal noise which is appropriate various work sites, crowded area, under bridge, narrow road ways, urban renewal.
