Quick Details
-
Max. Loading Capacity:
-
50L-5000L
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuxiang
-
Voltage:
-
Customized, 220V/380V or customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
68 kW
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Vacuum emulsifying mixing machine
-
Homogenizer:
-
Upper Homogenizer
-
Mixing speed:
-
0-63rpm
-
Homogenizer Speed:
-
0-3000rpm
-
Control:
-
Button or PLC controller
Quick Details
-
Barrel Volume (L):
-
500L
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
0 - 63 r.p.m
-
Max. Loading Capacity:
-
50L-5000L
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuxiang
-
Voltage:
-
Customized, 220V/380V or customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
68 kW
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Vacuum emulsifying mixing machine
-
Homogenizer:
-
Upper Homogenizer
-
Mixing speed:
-
0-63rpm
-
Homogenizer Speed:
-
0-3000rpm
-
Control:
-
Button or PLC controller
Homogenizer Emulsifying Vacuum Lab Small Emulsion Mixing Tank Manufacturers High Shear Mixer Mayonnaise Making Equipment
500L Homogenizer and Mixer Machine with Vacuum Pump for Mayonnaise Cheese Ketchup Paste Face Care Whitening Cream Production

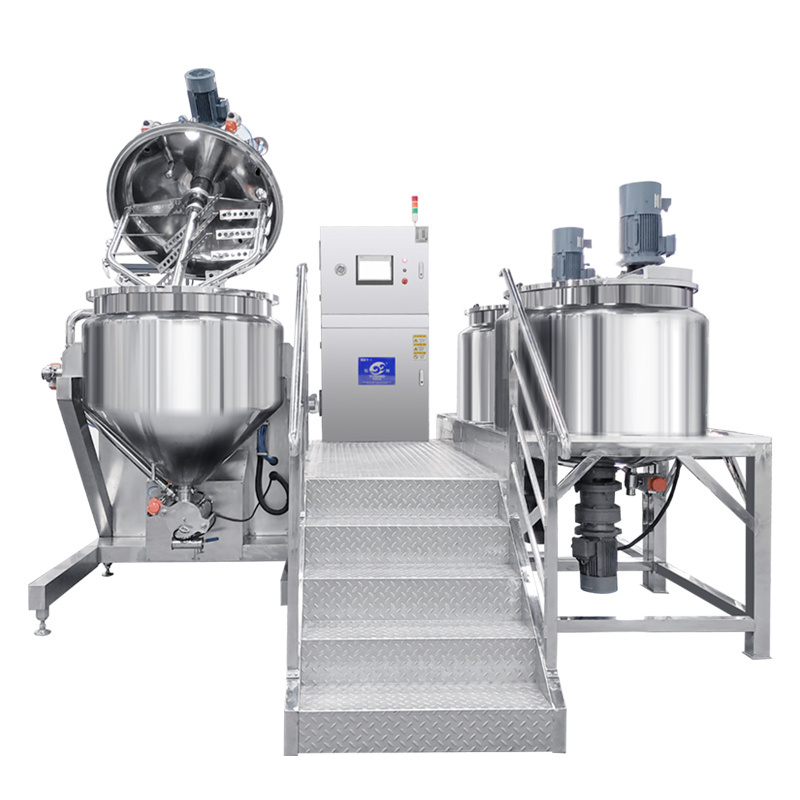

Mayonnaise vacuum emulsifying machine, ketchup vacuum homogenizing emulsifying machine is a homogenizing emulsifying equipment specially designed for food sauce industry. The machine is easy to operate and maintain, using the combination of high-speed cutting and low-speed mixing. All the components use domestic famous brands and international *, such as Siemens, ABB, Schneider and so on.
Product Description
Specification
|
item
|
value
|
|
Mixer Type
|
Paddle
|
|
Barrel Volume (L)
|
500L
|
|
Material Processed
|
Chemicals, Food
|
|
Max. Loading Volume (L)
|
500L
|
|
Range of Spindle Speed(r.p.m)
|
0r.p.m - 63r.p.m
|
|
Max. Loading Capacity
|
50L-5000L
|
|
Weight (KG)
|
400KG
|
|
Material
|
SUS304, SUS316
|
|
Condition
|
New
|
|
Product Type
|
mayonnaise, sauce, cream
|
|
Application
|
cream, paste
|
|
Additional Capabilities
|
homogenizer
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Brand Name
|
Yuxiang
|
|
Voltage
|
Customized
|
|
Dimension(L*W*H)
|
Customized
|
|
Power (kW)
|
68kW
|
|
Warranty
|
One Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Applicable Industries
|
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other
|
|
Showroom Location
|
None
|
|
Marketing Type
|
New Product 2023
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Gear, Pressure vessel, Pump, PLC
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Name
|
Vacuum emulsifying mixing machine
|
|
Mixer Type
|
Homogenizer
|
|
Homogenizer
|
Upper Homogenizer
|
|
Voltage
|
220V/380V or customized
|
|
Application
|
food, cosmetic, chemical, drink
|
|
Material
|
304 stainless steel/316 stainless steel
|
|
Mixing speed
|
0-63rpm
|
|
Homogenizer Speed
|
0-3000rpm
|
|
Control
|
Button or PLC controller
|
Feature:
1. This machine is suitable for different viscosity materials, the material viscosity range is 0~100,000 cps. 2. The main pot of the machine can be directly sucked into the material with the vacuum pump.
3. This machine can be equipped with heating function,cooling function, sealing function, online cleaning (connected to CIP cleaning system).
4. Particle grinding, emulsification,stirring, homogenization and dispersion processes can be completed in a very short time.
5. Homogenization and mixing can be operated independently. The speed can be adjusted according to the frequency converter.
6. With PLC touch screen and button control, it can be automated or semi-automated.
3. This machine can be equipped with heating function,cooling function, sealing function, online cleaning (connected to CIP cleaning system).
4. Particle grinding, emulsification,stirring, homogenization and dispersion processes can be completed in a very short time.
5. Homogenization and mixing can be operated independently. The speed can be adjusted according to the frequency converter.
6. With PLC touch screen and button control, it can be automated or semi-automated.
Application industry:
1) Cosmetics industry: face cream, lotion, lipstick, health care products, gels, etc. 3) Food industry: salad, mayonnaise, peanut butter, tahini, butter, animal fat, hot
pot base, ice products, health food, etc. 4) Chemical industry: pigments, paints, dyes, solvents, rubber, resins, shoe polish and other general chemicals. 5) Electronics industry: copper-clad plate, lithium battery, etc
pot base, ice products, health food, etc. 4) Chemical industry: pigments, paints, dyes, solvents, rubber, resins, shoe polish and other general chemicals. 5) Electronics industry: copper-clad plate, lithium battery, etc
