Quick Details
-
Graphic Format Supported:
-
DXF
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanyi
-
Dimension(L*W*H):
-
1000mmx900mmx1780mm
-
Weight (KG):
-
650 KG
-
Core Components:
-
Laser source, Laser cutting head, Control software, Patent fixture
-
Place of origin:
-
China, guanghzou
-
Product name:
-

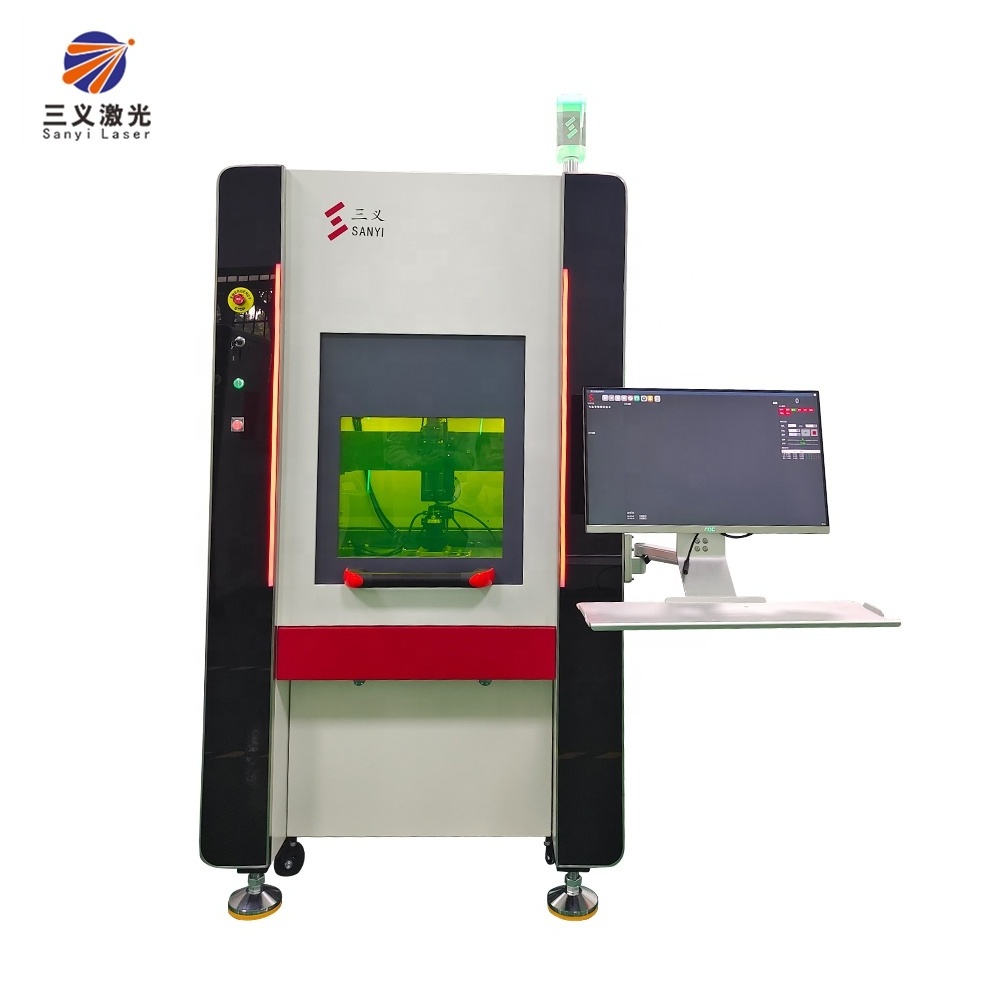

PDC Laser Engraving Machine
-
Function:
-
PDC and Superhard Material tool cutter bit Engraving
-
After-sales service provided:
-
Online support
-
Control software:
-
Self-developed, customized for special needs
Quick Details
-
Engraving Area:
-
150mm*150mm
-
Laser Type:
-
1064 infrared laser
-
Engraving Speed:
-
3000mm/s
-
Graphic Format Supported:
-
DXF
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanyi
-
Dimension(L*W*H):
-
1000mmx900mmx1780mm
-
Weight (KG):
-
650 KG
-
Core Components:
-
Laser source, Laser cutting head, Control software, Patent fixture
-
Place of origin:
-
China, guanghzou
-
Product name:
-
PDC Laser Engraving Machine
-
Function:
-
PDC and Superhard Material tool cutter bit Engraving
-
After-sales service provided:
-
Online support
-
Control software:
-
Self-developed, customized for special needs
Product Specifications
|
SN
|
Content
|
Specification Parameters
|
|
1
|
Laser wavelength
|
1064nm
|
|
2
|
X axis stroke
|
150mm
|
|
3
|
Y-axis stroke
|
150mm
|
|
4
|
Z-axis stroke
|
60mm
|
|
5
|
Repeated positioning accuracy of XYZ axis
|
±0.01mm
|
|
6
|
Ambient temperature
|
20-25 ℃
|
|
7
|
Humidity
|
≤ 50%
|
|
8
|
Total power of equipment
|
1.5KW
|
|
9
|
Power
|
220V/50Hz
|
|
10
|
Overall dimension of equipment
|
1000mm x 1300mm x 1780mm
|
|
11
|
Total weight of equipment
|
650KG
|
