Quick Details
-
Model Number:
-
TTN-SGPE
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
19.5*11.2*6cm
-
Weight:
-
1.2kg
-
Product Name:
-
12V 220V Inverter
-
Max Working Efficiency:
-
94%
-
Output Waveform:
-
Pure Sine Wave
-
USB:
-
5V 1000MA/2000MA
-
Storage Temperature:
-
-50℃~+70℃
-
Operating Temperature Range:
-
-40℃~+60℃
-
Protection:
-
Battery over under/over voltage,overload, AC short circuit protection
-
Certificate:
-
CE RoHS
Quick Details
-
Output Current:
-
Depend on load
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TTN
-
Model Number:
-
TTN-SGPE
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
19.5*11.2*6cm
-
Weight:
-
1.2kg
-
Product Name:
-
12V 220V Inverter
-
Max Working Efficiency:
-
94%
-
Output Waveform:
-
Pure Sine Wave
-
USB:
-
5V 1000MA/2000MA
-
Storage Temperature:
-
-50℃~+70℃
-
Operating Temperature Range:
-
-40℃~+60℃
-
Protection:
-
Battery over under/over voltage,overload, AC short circuit protection
-
Certificate:
-
CE RoHS

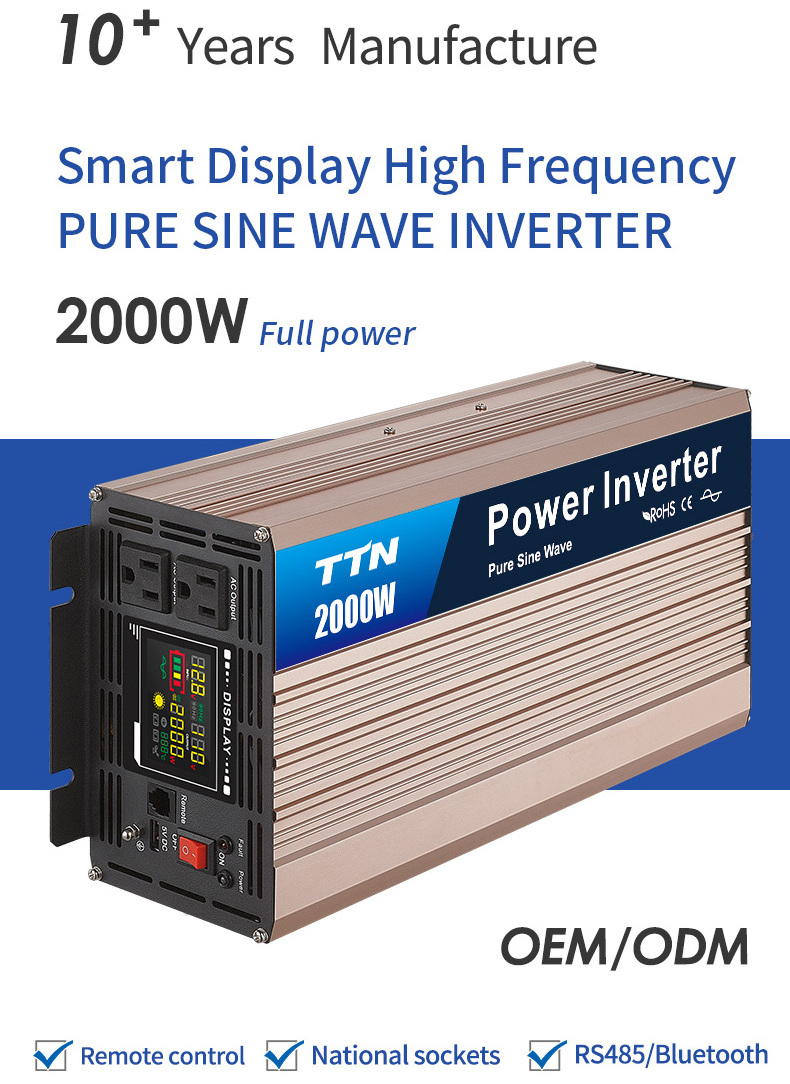

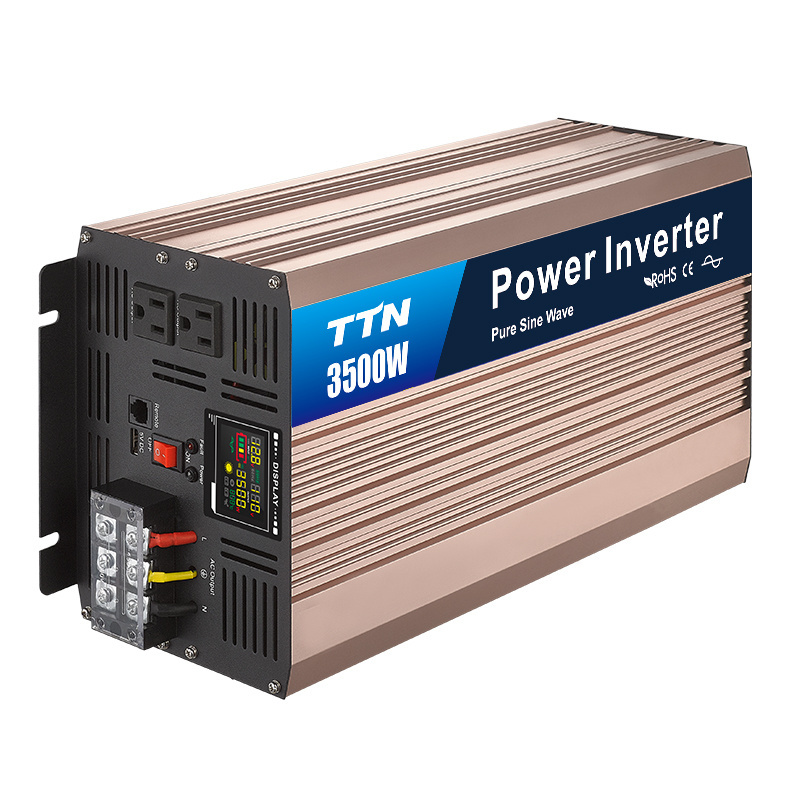

Products Description
TTN
Pure Sine Wave
Inverter
TTN-SGPE
300W / 500W / 600W / 1000W /
1500W / 2000W
2500W / 3000W /
3500W /
4000W / 5000W / 6000W / 8000W
Introduction of power inverter:
1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter, high reliability, strong shock resistance, low solder joint defect rate, reducing battery and radio frequency interference.
2. Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.
3. Eight intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection, over current protection, insurance protection.
4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
5. Stable performance, safe and reliable, long service life.
6.
Aluminum-magnesium alloy casing, light weight, good thermal conductivity, can quickly reduce the temperature of parts,
long-term work is not affected.
long-term work is not affected.

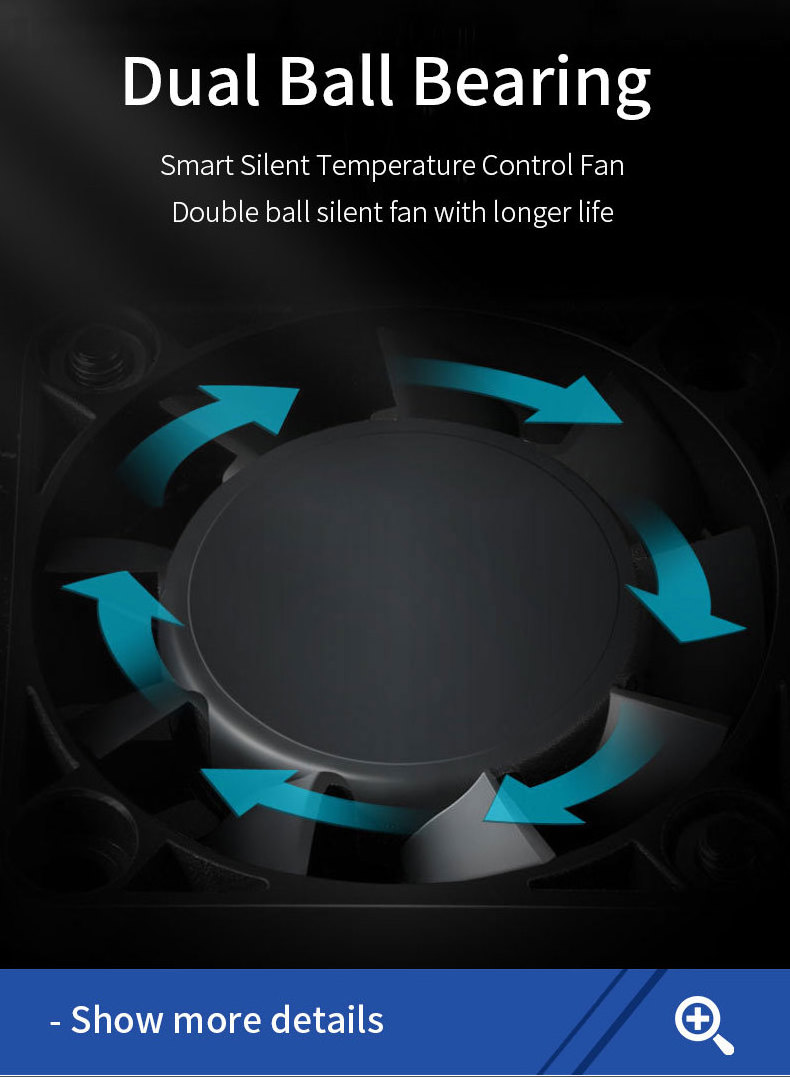

7. intelligent temperature control fan, make the inverter quieter. When the temperature is ≤ 45 °C, the fan stops working; when the temperature is ≥ 45 °C, the fan starts to work.
8.
Buzzer reminder device. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power supply, the load enters the protection mode and reminds people via a buzzer reminder.
9. Low standby power consumption and high conversion rate.
|
Model
|
300W-
12/24/48V
|
500W-
12/24/48V
|
600W-
12/24/48V
|
1000W-
12/24/48V
|
1500W-
12/24/48V
|
2000W-
12/24/48V
|
2500W-
12/24/48V
|
||||||
|
|
3000W-
12/24/48V
|
3500W-
12/24/48V
|
4000W-
12/24/48V
|
5000W-
12/24/48V
|
6000W-
12/24/48V
|
8000W-
24/48/96V
|
|
||||||
|
Digital display
|
300W/500W/8000W No display 600W/1000W/1500W/2000W/2500W/3000W/3500W/4000W/5000W/6000W LED display
|
|
|
|
|
|
|
||||||
|
Rated Power
|
300W~8000W
|
|
|
|
|
|
|
||||||
|
Surge Power
|
600W~16000W(few seconds)
|
|
|
|
|
|
|
||||||
|
Input Voltage
|
12VDC/24VDC/48VDC/96VDC
|
|
|
|
|
|
|
||||||
|
Output Voltage
|
110VAC±5%/220VAC±5%
|
|
|
|
|
|
|
||||||
|
USB Port
|
5V1A
|
|
|
|
|
|
|
||||||
|
Frequency
|
50Hz±3 or 60Hz±3
|
|
|
|
|
|
|
||||||
|
Output Waveform
|
Pure Sine Wave
|
|
|
|
|
|
|
||||||
|
Soft Start
|
YES
|
|
|
|
|
|
|
||||||
|
AC Regulation
|
THD<3%(Linear Load)
|
|
|
|
|
|
|
||||||
|
Output Efficiency
|
94% MAX
|
|
|
|
|
|
|
||||||
|
No Load Current
|
0.1A~3.8A
|
|
|
|
|
|
|
||||||
|
Cooling Way
|
Intelligent Cooling Fan
|
|
|
|
|
|
|
||||||
|
Protection
|
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit. Reverse Polarity
|
|
|
|
|
|
|
||||||
|
Working Temperature
|
-10℃ - +50℃
|
|
|
|
|
|
|
||||||
|
Warranty
|
2 Years
|
|
|
|
|
|
|
||||||
|
Voltage Range
|
12V
|
24V
|
48V
|
96V
|
|
DC Voltage Range
|
10-15.5V
|
20-31V
|
40-61V
|
80~120V
|
|
Low Voltage Alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
83±1V
|
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
80±1V
|
|
Low Voltage Recovery
|
13±0.5V
|
24±0.5V
|
48±1V
|
96±1V
|
|
Over Voltage Shut Down
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
120±1V
|
|
Over Voltage Recovery
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
96±1V
|
|
Model
|
300W
|
500W
|
1000W
|
1500W
|
2000W
|
2500W
|
|
Net Dimension
|
19.5*11.2*6cm
|
23.2*15*7.8cm
|
32.6*16.5*8.7cm
|
36.2*16.5*8.7cm
|
43*16.5*8.7cm
|
44*17*10.5cm
|
|
Inner Box Dimension
|
25.6*15*9.8cm
|
28.6*20.3*13cm
|
35.1*20.5*12.2cm
|
45.6*20.6*12.2cm
|
45.6*20.6*12.2cm
|
noll
|
|
Meas/Ctn
|
51x49x30.7cm/18pcs
|
63*34*38.5cm/10pcs
|
67.5*37.3*29.7cm/6pcs
|
52*47.5*38cm/4pcs
|
52*47.5*38cm/4pcs
|
51.5*23.3*17.5cm/4pcs
|
|
N.W/Unit
|
1.0kg (1.2kg With Inner Box)
|
2.0kg (2.3kg With Inner Box)
|
3.1kg(3.5kg With Inner Box)
|
4.3kg(4.8kg With Inner Box)
|
5.2kg(5.7kg With Inner Box)
|
4.76kg(4.76kg With Inner Box)
|
|
G.W/Ctn
|
23KGS
|
24KGS
|
22KGS
|
20KGS
|
24.5KGS
|
22.52KGS
|
|
Packing
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
|
Model
|
3000W
|
3500W
|
4000W
|
5000W
|
6000W
|
8000W
|
|
Net Dimension
|
46*21*8.6cm(L×WxH)
|
44*20*15 cm(L×WxH)
|
46.5*21.6*15.6cm(LxWxH)
|
46.5*21.6*15.6cm(LxWxH)
|
51.8*20*14.5cm(LxWxH)
|
66*30*23.5cm(LxWxH)
|
|
Meas/Ctn
|
53.5*51.5*27.5cm/4pcs
|
56.5*30.8*24cm/1pcs
|
57.5*31.5*25cm/1pcs
|
57.5*31.5*25cm/1pcs
|
64.3*30*23.5cm/1pcs
|
74*30*23.5cm/1pcs
|
|
N.W/Unit
|
26kg
|
8.92kg
|
10kg
|
10.5kg
|
12kg
|
14kg
|
|
G.W/Ctn
|
28KGS
|
10.7KGS
|
12KGS
|
12.5KGS
|
14KGS
|
18KGS
|
|
Packing
|
Carton
|
Carton
|
Honeycomb carton
|
Honeycomb carton
|
Honeycomb carton
|
Honeycomb carton
|
Product Details
300W
500W
600W
1000W
1500w
2000W
2500W
3000W
3500W
4000W
5000W
6000W
8000W
Product packaging
Honeycomb carton
Super protective packaging.
Carton
Multi-layer cardboard synthetic carton, solid and durable.
