Quick Details
-
Voltage:
-
220V/380V/415V/450V
-
Dimension(L*W*H):
-
1650*940*1030 mm
-
Weight:
-
150 KG
-
Name:
-
Copper Ore Gravity Separator Gemini Shaking Table Shaker Table Machine
-
Feeding size:
-
0-2 mm
-
Capacity:
-
30 kg/h
-
Feeding density:
-
50%
-
Water feeding:
-
12 l/min
-
Engine:
-
Motor
-
Color:
-
Standard or As your request
-
Material:
-
PU
-
Application:
-
Gold,mining,copper,silver,tin,columbium,tantalum,titanium,barium etc
-
Keywords:
-
Shaking Table Gold,Gemini Table,Gemini Shaking Table
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Jiangxi Hengchang
-
Voltage:
-
220V/380V/415V/450V
-
Dimension(L*W*H):
-
1650*940*1030 mm
-
Weight:
-
150 KG
-
Name:
-
Copper Ore Gravity Separator Gemini Shaking Table Shaker Table Machine
-
Feeding size:
-
0-2 mm
-
Capacity:
-
30 kg/h
-
Feeding density:
-
50%
-
Water feeding:
-
12 l/min
-
Engine:
-
Motor
-
Color:
-
Standard or As your request
-
Material:
-
PU
-
Application:
-
Gold,mining,copper,silver,tin,columbium,tantalum,titanium,barium etc
-
Keywords:
-
Shaking Table Gold,Gemini Table,Gemini Shaking Table
100% Factory Price Gold Mining Equipment Sorting Machine Copper Ore Gravity Separator Gemini Shaking Table Shaker Table Machine
Jiangxi Hengchang machinery

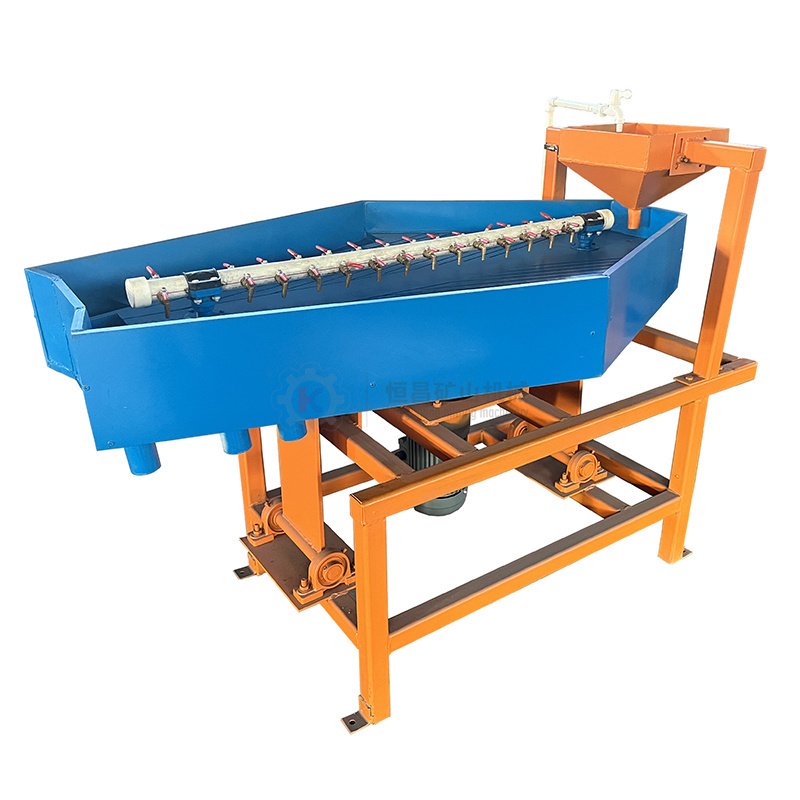

Gemini Shaking Table
is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. When you find us, you find one best mining machinery manufacturer.
Gemini Shaking Table
Introduction:
Gemini Shaking Table , also known as a precious metal table, works according to the specific gravity prince. Ideal for grain sizes between 30 micron and 2mm. It is specially designed for precious metals such as Gold, Palladium, tantalum and copper. It can maximize the concentration rate in the ore with its low energy consumption. Thanks to the frequently installed mini valves, fine adjustment can be made in the water collector as you wish. We have two types of production, Gemini Table laboratory type and Industrial type.
Gemini Shaking Table , also known as a precious metal table, works according to the specific gravity prince. Ideal for grain sizes between 30 micron and 2mm. It is specially designed for precious metals such as Gold, Palladium, tantalum and copper. It can maximize the concentration rate in the ore with its low energy consumption. Thanks to the frequently installed mini valves, fine adjustment can be made in the water collector as you wish. We have two types of production, Gemini Table laboratory type and Industrial type.
Gemini Shaker Table Working Principle:
The gemini table has been specifically designed for the recovery of fine gold to a directly smeltable concentrate. The direct drive system incorporates a geared motor, driving a crank connected to the table deck. The crank includes a spring connection system to absorb overrun. The bump stop system provides a fine-tuning mechanism. Table tuning is achieved by adjustment of a single screw.
|
Model
|
GT60
|
GT250
|
GT1000
|
|
Operating dimensions A(mm)
|
1490
|
2180
|
2800
|
|
Operating dimensions B(mm)
|
1160
|
1350
|
1365
|
|
Operating dimensions C(mm)
|
670
|
700
|
916
|
|
Operating dimensions D(mm)
|
897
|
1340
|
1750
|
|
Operating dimensions E(l/min) water flow
|
12
|
25
|
38
|
|
Net weight(kg)
|
145
|
220
|
320
|
|
Approximate packed dimensions L(mm)
|
1420
|
2200
|
2800
|
|
Approximate packed dimensions W(mm)
|
1100
|
1500
|
1900
|
|
Approximate packed dimensions H(mm)
|
1210
|
1500
|
1500
|
|
Packed weight(kg)
|
250
|
420
|
540
|
Gold Shaker Table in Tanzania
For separating rock gold
Gold Shaker Table in Australia
For
separating
rock gold
Shaking Table in India
For concentrating manganese ore
Shaking Table in Nigeria
For
concentrating
tantalum ore
Shaker Table in Morocco
For
lead-zinc ore
separation
Shaker Table in Myanmar
For tungsten ore separation
Gold Shaking Table in Vietnam
For chrome ore concentration
Gold Shaking Table in Indonesia
For alluvial tin ore concentration
More Products
Q: 1.What is your machine used for ?
A: Our Gemini shaking table is used for separation precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc,Mercury, Copper, Aluminum etc.
A: Our Gemini shaking table is used for separation precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc,Mercury, Copper, Aluminum etc.
Q: 2.Are you factory or trade company?
A: We are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are Coming to China,Please Call at +86-18870736160
A: We are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are Coming to China,Please Call at +86-18870736160
Q: 3.How about your Service ?
A: All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q: 4.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: 5.What about the payment method?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: 4.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: 5.What about the payment method?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
