Quick Details
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Zhaga book20 sensor, Zhaga book20 dali D4i PIR motion sensor
-
Model Number:
-
HNS132CLDLPIR
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
Zhaga book20 dali sensor
-
Output:
-
dali dimming
-
Name:
-
DALI-2 D4i PIR and constant lux
-
Input voltage:
-
9.5 - 22.5V DC
-
Stand-by current consumption::
-
max. 6mA
-
Function:
-
DALI dimming and constant lux
-
IP rating:
-
IP65
-
Usage:
-
DALI -2 D4i PIR motion sensor
-
Warranty:
-
5 year
-
Operation temperature:
-
-10℃ ~ + 50℃.
Quick Details
-
Use:
-
lighting & lighting system
-
Series:
-
Zhaga book20
-
Features:
-
IP65
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Zhaga book20 sensor, Zhaga book20 dali D4i PIR motion sensor
-
Model Number:
-
HNS132CLDLPIR
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
Zhaga book20 dali sensor
-
Output:
-
dali dimming
-
Name:
-
DALI-2 D4i PIR and constant lux
-
Input voltage:
-
9.5 - 22.5V DC
-
Stand-by current consumption::
-
max. 6mA
-
Function:
-
DALI dimming and constant lux
-
IP rating:
-
IP65
-
Usage:
-
DALI -2 D4i PIR motion sensor
-
Warranty:
-
5 year
-
Operation temperature:
-
-10℃ ~ + 50℃.

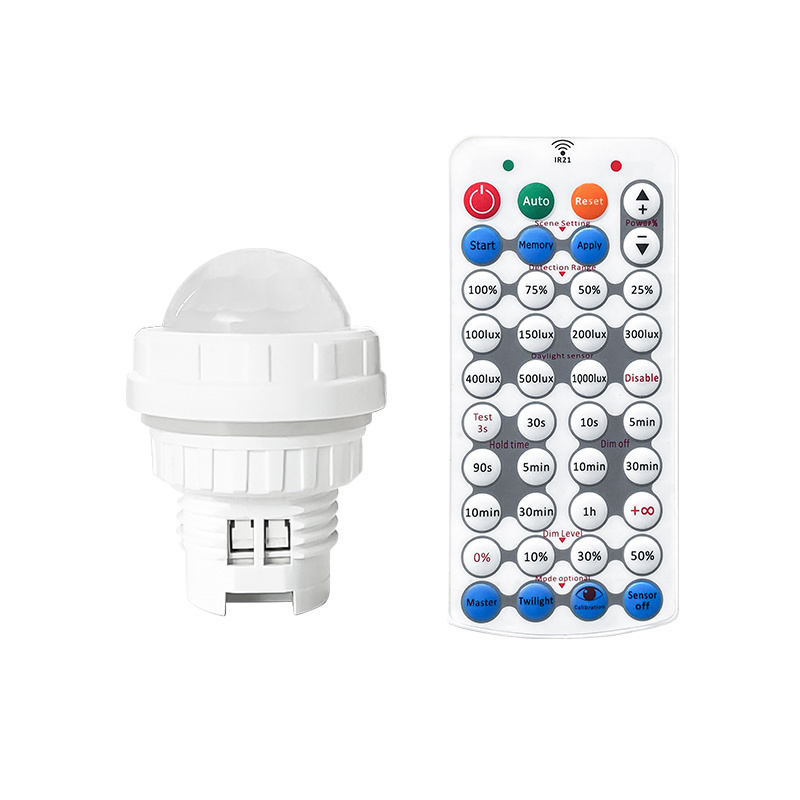

Model name: HNS132CLDLPIR
Zhaga book20 DALI-2 D4i IP65 sensor
Selt-contained application controller DALI-2 D4i PIR motion sensor
Remote control and DALI Bus setting two options, easy operation and testing
DALI dimming and constant lux function
F
eature:
Both DALI & sensor power supply via: DALI-2.
Self-contained“application controller”.
Stand-by current consumption: max. 6mA.
Daylight sensor lux setting: 10-2,000lux.
Individual adjustment of parameters with configuration software.
Constant-Lux control, ideal for office / commercial lighting.
D4i approved, fully compatible with DALI Part 351(Type C).
Settings via both DALI Bus and remote control.
Detection range: max. 6-8m in diameter.
Mounting height: max. 4m.
Operation temperature: -10°C ~ +50°C.
RoHS compliant.
IP rating: IP65.
Setting:
DALI Bus and remote control
DALI-2 & D4i standards
EN62386-101 Ed.2
EN62386-103 Ed.1
EN62386-351 Type C
Both DALI & sensor power supply via: DALI-2.
Self-contained“application controller”.
Stand-by current consumption: max. 6mA.
Daylight sensor lux setting: 10-2,000lux.
Individual adjustment of parameters with configuration software.
Constant-Lux control, ideal for office / commercial lighting.
D4i approved, fully compatible with DALI Part 351(Type C).
Settings via both DALI Bus and remote control.
Detection range: max. 6-8m in diameter.
Mounting height: max. 4m.
Operation temperature: -10°C ~ +50°C.
RoHS compliant.
IP rating: IP65.
Setting:
DALI Bus and remote control
Product information:
|
Zhaga book20
|
Single light
|
PIR+Daylight sensor
|
HNS132PIR/HNS132CLPIR
|
12V DC input, 0-10V output, tri-level dimming and daylight monitoring / constant luxfunction by remote control setting
|
|
|
|
Daylight sensor
|
|
12V DC input, 0-10V output, constant luxfunction by remote control setting
|
|
|
|
Daylight sensor+DALI
|
|
9.5-22.5V DC, DALI output, constant lux function, remote control and DALI BUS setting
|
|
|
|
PIR+DALI
|
|
9.5-22.5V DC, DALI output, DALI BUS setting input device
|
|
|
|
PIR+Daylight sensor+DALI
|
|
9.5-22.5V DC, DALI output, tri-level dimming and daylight monitoring function, remote control and DALI BUS setting
|
|
|
|
PIR+Daylight sensor+DALI
|
HNS132CLDLPIR
|
9.5-22.5V DC, DALI output, tri-level dimming and constant lux function, remote control and DALI BUS setting
|
|
|
SILVAIR bluetooth mesh
|
BLE+PIR+Daylight
|
HNB132PIR
|
12V DC input, 0-10V output, tri-level dimming and constant lux function by silvair bluetooth mesh APP control
|
|
|
SILVAIR bluetooth mesh+DALI-2 D4I
|
BLE+DALI+PIR+Daylight
|
HNB132DLPIR
|
9.5V-22.5V DC input, DALI output,tri-level dimming and daylight harvest, bluetooth mesh function by silvair bluetooth mesh APP control
|
|
|
|
DALI Bluetooth mesh converter
|
HNB132DL
|
9.5V-22.5V DC input, DALI output, bluetooth mesh function by silvair bluetooth mesh APP control
|
Product Description
Specification
|
Type
|
DALI-2 D4i PIR and daylight sensor
|
|
Daylight sensor lux setting:
|
10-2,000lux.
|
|
Function:
|
constant lux and DALI dimming
|
|
Setting
|
DALI bus and remote control
|
|
Stand-by current consumption:
|
max. 6mA
|
|
Operation temperature: .
|
-10 C ~ + 50 C
|
|
IP rating:
|
IP65
|
Certification:
Packing & Delivery
box size: 45*30*23cm inner box: 30*23*20cm
