Machuelos Herramientas Multifuncional Machos De Roscar

Machuelos Herramientas Multifuncional Machos De Roscar

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TLX or OEM

Model Number:: none

Product name:: Spiral-flute taps

Shank Type:: Spiral-flute

Standard:: GB, ISO, DIN, GOST, JIS

Thread/Pitch:: Coarse/fine

Thread Tolerance Class (TCTR):: H2

Size Range:: M1--M64 and up M/MF/UNC/UNF/BSW

Flute:: straight flute /spiral flute / spiral point

Processing:: Fully ground

Finishing:: Nitride/TiN coating /TiCN coating/Bright Finishing

Application:: metal

Quick Details

Warranty:: 3 years

Type:: TAP

Place of Origin:: Zhejiang, China

Brand Name:: TLX or OEM

Model Number:: none

Product name:: Spiral-flute taps

Shank Type:: Spiral-flute

Standard:: GB, ISO, DIN, GOST, JIS

Thread/Pitch:: Coarse/fine

Thread Tolerance Class (TCTR):: H2

Size Range:: M1--M64 and up M/MF/UNC/UNF/BSW

Flute:: straight flute /spiral flute / spiral point

Processing:: Fully ground

Finishing:: Nitride/TiN coating /TiCN coating/Bright Finishing

Application:: metal

Product Description

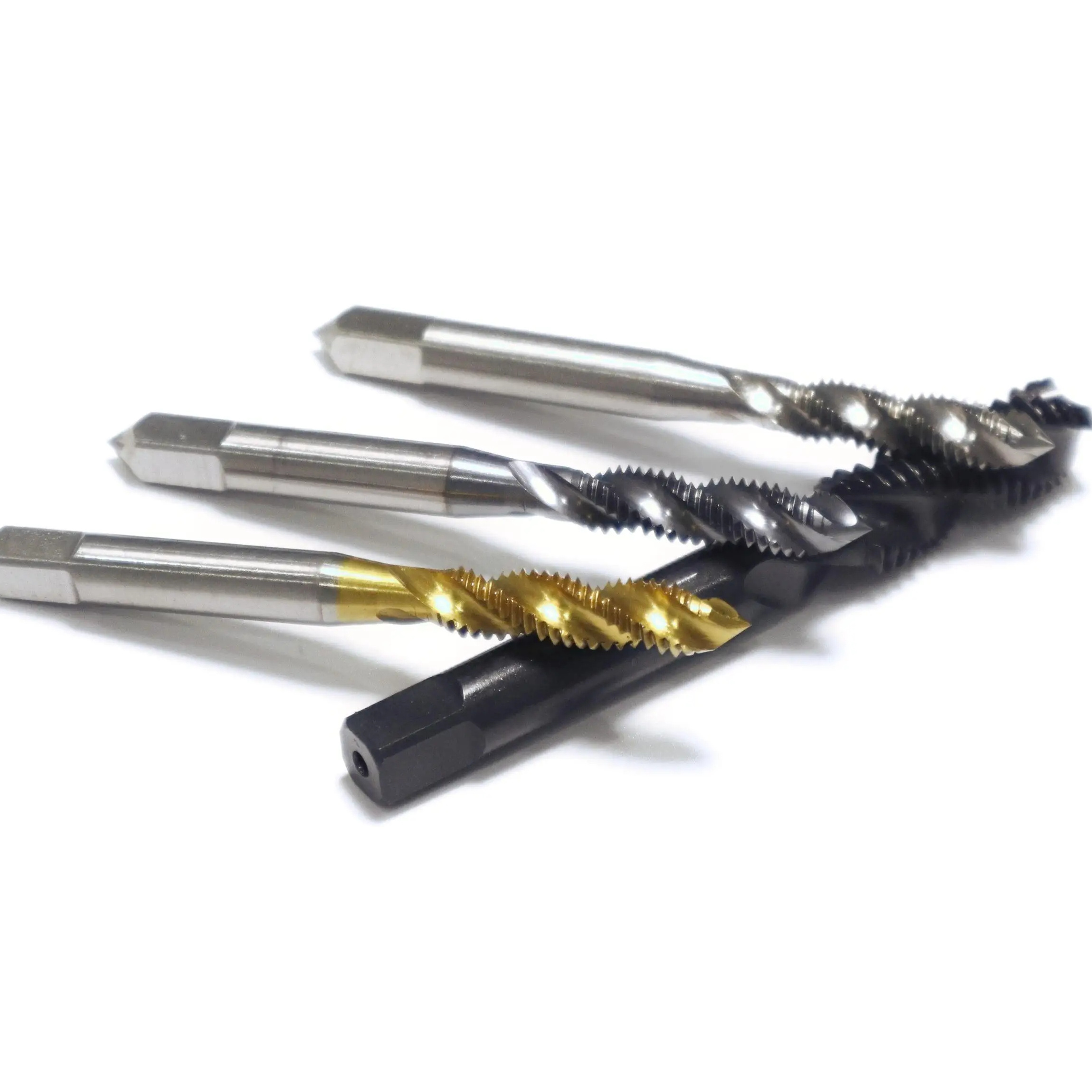

Spiral-flute taps

Spiral-flute taps pull chips out and away from the hole as the tap moves into the hole to create threads, which helps preventchips from packing in the hole.

They create internal threads in blind holes and are installed into a toolholder on a machine such as a lathe or CNC machine to operate.

Feature:

(1) Taps with spiral flute grinding.

(2) The spiral flute pull the small continuouscurly chips back towards the tapping chuck and prevents chips from clogging in the hole.

(3) Durability is improved by high-quality HSS and special production technology.

(4) The life time is longer a lot then HSS Co5(M35) and HSS M2 taps.

(5) Most suitble for most of steel materials with water or cutting oil.

(6) Ideal for blind hole tapping.

Specification

Size	Pitch	Overall length	Thread length
M3×0.5	0.5	46	15
M3.5×0.6	0.6	48	16
M4×0.7	0.7	52	18
M5×0.8	0.8	60	21
M6×1.0	1.0	62	24
M8×1.25	1.3	70	23
M10×1.5	1.5	75	25.5
M12×1.75	1.8	82	30
M14×2.0	2.0	88	30
M16×2.0	2.0	95	32
M18×2.5	2.5	112	37
M20×2.5	2.5	112	37
M22×2.5	2.5	118	38
M24×3	3.0	130	45
