Quick Details
-
Power (kW):
-
4, 4kw
-
Range of Spindle Speed(r.p.m):
-
400 - 500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Virate
-
Voltage:
-
4kw, 220V,50/60Hz
-
Weight (KG):
-
200 KG
-

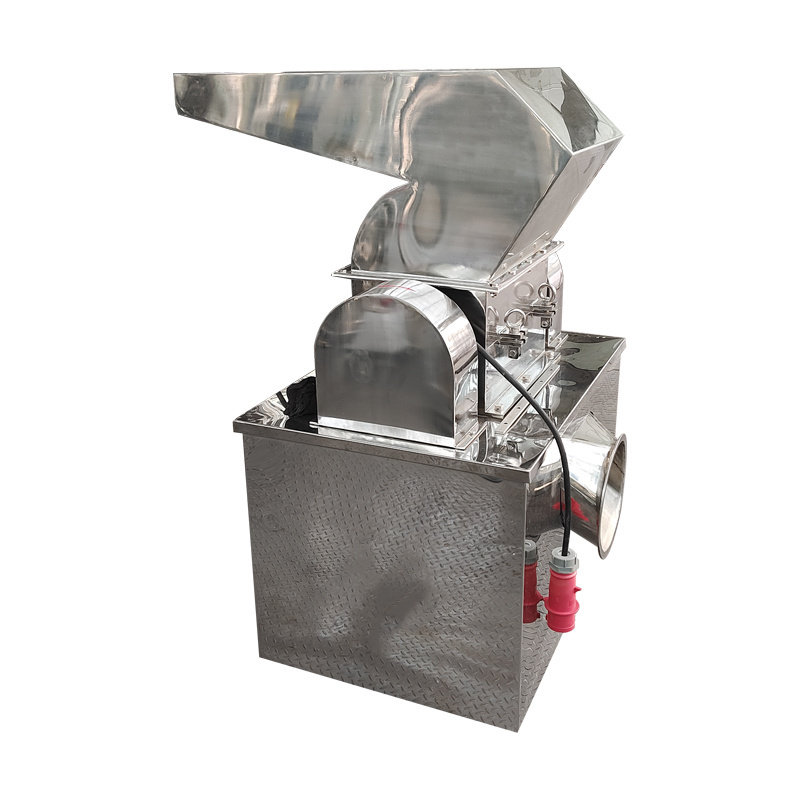

Product name:
-
Coarse crusher
-
Keyword:
-
Coarse crusher grinding machine
-
Grinding size:
-
2-20mm
-
Capacity:
-
10-800kg/h
-
Weight:
-
200 kg
Quick Details
-
Output (kg/h):
-
12 - 1200 kg/h
-
Feeding Size (mm):
-
50 - 100 mm
-
Output Size (mesh):
-
1 - 20 mesh
-
Power (kW):
-
4, 4kw
-
Range of Spindle Speed(r.p.m):
-
400 - 500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Virate
-
Voltage:
-
4kw, 220V,50/60Hz
-
Weight (KG):
-
200 KG
-
Product name:
-
Coarse crusher
-
Keyword:
-
Coarse crusher grinding machine
-
Grinding size:
-
2-20mm
-
Capacity:
-
10-800kg/h
-
Weight:
-
200 kg
How does the coarse crusher operate?
The raw material enters the crushing chamber from the hopper and then crushed by the rotating knives and fixed knives, and finally goes out from the outlet hopper automatically by the centrifugal force.The crushing fineness can be adjusted by changing the screen.This machine can also be equipped with a dust removal box according to the customer's requirements which can reduce material loss and avoid the dust flying,meets the GMP requirements.
Main Technology Parameters:
|
Model
|
VBCC-80
|
VBCC-120
|
VBCC-200
|
VBCC-300
|
VBCC-500
|
|
Capacity（kg/h）
|
10-100
|
50-200
|
80-300
|
150-500
|
200-800
|
|
Feed size(mm)
|
≤50
|
≤100
|
≤100
|
≤100
|
≤100
|
|
Crush size(mm)
|
2-20
|
2-20
|
2-20
|
2-20
|
2-20
|
|
Main speed(r/min)
|
500
|
500
|
500
|
400
|
400
|
|
Power(kw)
|
1.5
|
3
|
4
|
7.5
|
22
|
|
Weight(kg)
|
100
|
150
|
200
|
300
|
600
|
|
Overall dimensions L×W×H(mm)
|
550×580×880
|
650×730×1240
|
900×1000×1330
|
960×1100×1700
|
1540×1340×2000
|
Different particle size can be achieved by changing sieve.
The punching net or the drilling net is combined with the reinforcing ribs as a whole, which is well-made and has good hardness and elasticity.
Feed hopper
The material enters the crushing chamber from the feeding hopper, and is pulverized by the impact knife and the fixed knife by impact and shearing. The material automatically flows to the outlet by the action of the rotating centrifugal force.
Crushing chamber
The crushing chamber is designed with high-strength integral cast steel, which has strong impact resistance.Customize various sizes and materials according to your needs
Coarse crusher motor
Dedicated motor with stable performance, low noise, long output time, and low failure rate
Crusher control panel
1. Control switch: Start and stop the crusher. 2. Emergency stop: It is a form of safety mechanism that ensures that the machine stops running immediately
Henan vibrate Machinery is a production of food, chemical equipment enterprises, located in Henan Xinxiang City. We design custom solutions for the production, washing, cutting, meat processing, packaging and filling of vegetables, spices, meat, liquids, powders and pellets in many industries such as food, pharmaceutical, plastics, chemical, etc. Our main products include: packaging machines, filling machines, cleaning machines, cutting machines, meat processing machines and related products. the company has passed iso9001 quality management system certification and SGS certification, and all products have passed CE certification.
At present, the products have been exported to 96 countries and regions.
We also have in-depth cooperation with local agents in key markets such as Indonesia, Malaysia, Singapore, Thailand, India, Vietnam, Brazil, Australia, France, United Kingdom, Hungary, etc., to provide localized after-sales service and technical support.
Our Certification
Q: 1. Are you a manufacturer, trading company or third party?
A: We are a manufacturer, located in the high-tech zone of Xinxiang City, Henan Province, China. You are warmly welcome to visit our company.
Q:2. What is your minimum order quantity and can you send me samples?
A: Our MOQ is 1 set, because our products are mechanical equipments, so it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more details, we will be happy to provide you with more information, such as specifications, videos and so on.
Q:3. How does your factory perform quality control?
A:
(1) All raw materials we use are environmentally friendly.
(2) Skilled workers pay attention to every detail during production and packaging.
(3) The quality control department specializes in the quality of each process.36 Over the years, we continue to introduce advanced technology and provide high quality products, and our products are also widely exported to many countries, such as Russia, Middle East, Africa, Southeast Asia, and the European Union, and we have won a high reputation among our customers.
Q: 4. What is the delivery time of your machines?
A: Generally speaking, the delivery period of our machines is about 30 days, and the customized machines will be delivered according to the negotiation with customers.
Q: 5. How about after-sales service?
A:(1) TM is online 24 hours a day, also can be contacted by email, skype, MSN, whatsapp etc.
(2) Problem solving by video/picture.
(3) One year warranty for spare parts replacement. If you encounter any other problems, please feel free to contact us.
