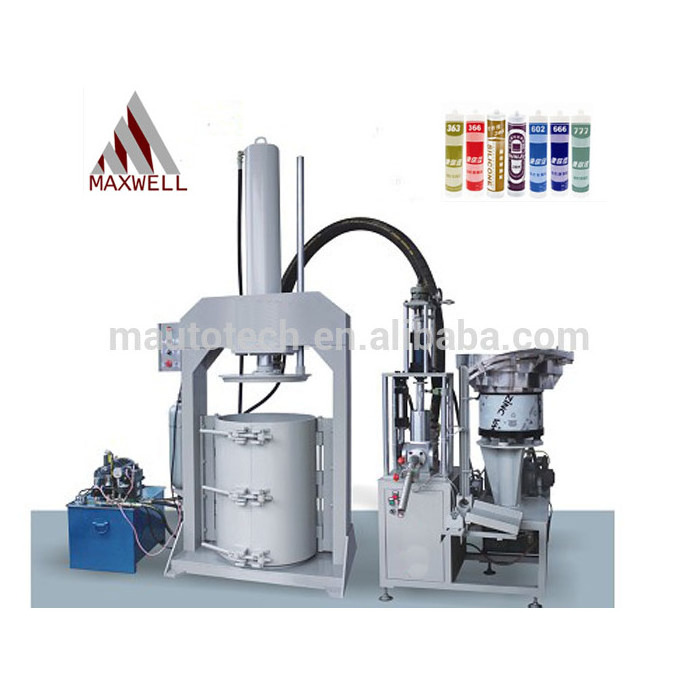

China Semi Automatic PU Sealant Filling Machine silicone sealant cartridge filling machine With Extruder

China Semi Automatic PU Sealant Filling Machine silicone sealant cartridge filling machine With Extruder

FOB Reference Price: Get Latest Price

≥1 Sets

US $4680

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: +/-1%

Voltage:: 220V/380V 50HZ customized

Place of Origin:: Jiangsu, China

Brand Name:: Maxwell

Dimension(L*W*H):: 1800*1000*1500mm

Weight:: 2500 KG

Packing material:: PVC\PE

Capacity:: 2000-4000 Bottles /h

fill accuracy:: ±0.5%

Marketing Type:: Hot Product 2019

Quick Details

Machinery Capacity:: 2000BPH

Packaging Material:: Plastic, Paper, Metal, Glass, Wood

Filling Material:: Beer, Milk, Water, Oil, Juice, Powder

Filling Accuracy:: +/-1%

Voltage:: 220V/380V 50HZ customized

Place of Origin:: Jiangsu, China

Brand Name:: Maxwell

Dimension(L*W*H):: 1800*1000*1500mm

Weight:: 2500 KG

Packing material:: PVC\PE

Capacity:: 2000-4000 Bottles /h

fill accuracy:: ±0.5%

Marketing Type:: Hot Product 2019

Semi Automatic Cartridge Silicone Sealant Filling Packing Machine

China Semi Automatic PU Sealant Filling Machine silicone sealant cartridge filling machine With Extruder

This semi-automatic cartridge filling machine is widely used for filling silicone sealant,PU sealant, MS sealant, adhesive, butyl sealant, Silicone adhesive/weatherproof structural adhesive/electronic adhesive/nail-free adhesive/AB adhesive/seam sealant/epoxy adhesive/polyurethane adhesive/glass adhesive presser, etc. When customer use this filling machine, the process of chemical products filling are by manual, but the plunger conveying and capping are automatically. This filling machine has built-in measuring cylinder, with the advantages of adjusting easily and precise measuring.

Product Paramenters

Type			MAX-CAR-SF-300-1+YJ-60T
Power Supply			380V/50HZ & 220V/50HZ Optional
Air Supply			>0.5 MPa
Filling Volume			MAX 350ml Adjustable
Volume Precision			≤±0.5℅
Speed			1200~2400pcs/hr
Dimensions(L×W×H)			1800mm×1080mm*1400mm
Weight			450kg

Function

1. Filling volume adjusted electronically 2. Plunger conveying automatically 3. Plunger inserting automatically 4. Quality calculating automatically 5. Fully failure warning and protecting function. 6. Friendly man-machine interface 7. Panel type filter is stalled

Pressed Head

Air cylinder pressed the sealant from filling head into plastic cartridge

Vibrating Tray

The vibration disc is automatically covered, without pipe and no cap.

Filling Head

The hydraulic discharge method ensures the discharge efficiency and stability of high-viscosity materials, and the discharge is
fast and easy to maintain.

Cap Vibrating Tunnel

Sorting out caps from vibrating tray, through the tunnel one by one.

Collecting table

Collecting the finished products

Equipment name:Press Material Machine
Type :YJ200-1/YJ200-2
Power Supply:AC 3~380V+Nwire /50HZ
Extrusion force:45T/60T
suitable bucket:200L(Dia570MM*Heigh880MM) standard bucket
Outlet size:DN65
Hydraulic station oil tank:120L
motor:4KW/Hydraulic motor
Hydraulic station oil size:L650MM*W550MM*H800MM
