2. Suitable for casting and steel processing.
3. Lower noise and high precision.
4. Vertical controller panel with easy operation and beauty.
5. Rigid tapping function.
6. Suitable for mould machining and production in lots.
- Product Details
- {{item.text}}
Quick Details
-
Spindle Taper:
-
ER25
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
INTEGRITY
-
Model Number:
-
XK7113C
-
Table Travel (mm):
-
215x194
-
Year:
-
New
-
Spindle Motor Power(kW):
-
1.2
-
Voltage:
-
customize
-
Dimension(L*W*H):
-
1150*65*1560mm
-
Weight (KG):
-
330
-
Core Components:
-
OTHERS
-
CNC or Not:
-
Normal
-
Model:
-
XK7113C
-
Max. drilling capacity:
-
20mm
-
Max. milling dia.:
-
20mm
Quick Details
-
Table Travel (X) (mm):
-
220 mm
-
Table Travel (Y) (mm):
-
120mm
-
Table Travel (Z) (mm):
-
200mm
-
Spindle Taper:
-
ER25
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
INTEGRITY
-
Model Number:
-
XK7113C
-
Table Travel (mm):
-
215x194
-
Year:
-
New
-
Spindle Motor Power(kW):
-
1.2
-
Voltage:
-
customize
-
Dimension(L*W*H):
-
1150*65*1560mm
-
Weight (KG):
-
330
-
Core Components:
-
OTHERS
-
CNC or Not:
-
Normal
-
Model:
-
XK7113C
-
Max. drilling capacity:
-
20mm
-
Max. milling dia.:
-
20mm
PRODUCT DESCRIPTION

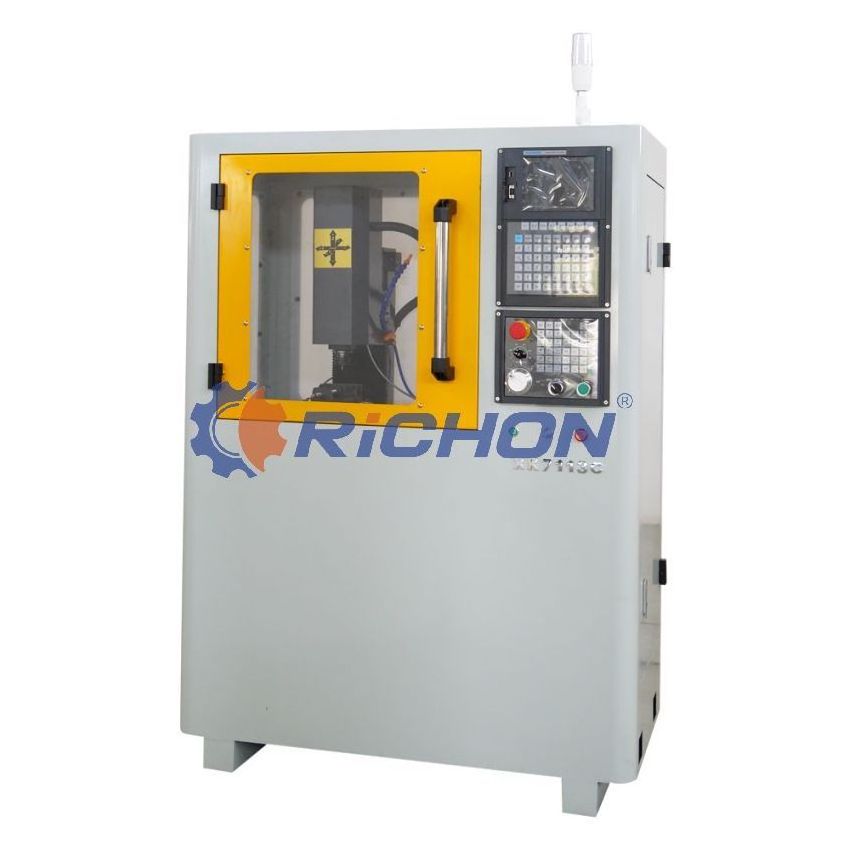

SAMLL CNC MILLING MACHINE WORKSHOP
Main Features:
1. Servo main motor.
2. Suitable for casting and steel processing.
3. Lower noise and high precision.
4. Vertical controller panel with easy operation and beauty.
5. Rigid tapping function.
6. Suitable for mould machining and production in lots.
2. Suitable for casting and steel processing.
3. Lower noise and high precision.
4. Vertical controller panel with easy operation and beauty.
5. Rigid tapping function.
6. Suitable for mould machining and production in lots.
XK7113A
Brushless motor
Spindle 400W
MACH 3 CNC controller system
Without cover protection
XK7113B
Brushless motor
Spindle 400W
MACH 3 CNC controller system
With cover protection
With cover protection
XK7113C
Servo motor
Spindle 1.2 KW, 3000RPM
AFTER 1500MDC/ GSK/ SIEMENS/ CNC controller system
XK7113D
Electric spindle frequency motor
Spindle 2.2 KW, 12000RPM
AFTER 1500MDC/ GSK/ SIEMENS/ CNC controller system
|
Specification
|
XK7113C
|
|
Max. drilling dia.
|
16mm
|
|
Max.milling dia.
|
16mm
|
|
Max. tapping dia.
|
M8
|
|
Spindle speed
|
3000rpm
|
|
Spendle center to column distance
|
194mm
|
|
Spindle nose to table distance
|
215mm
|
|
Spindle taper
|
ER25
|
|
T-slot size
|
12mm
|
|
Worktable size
|
400X140mm
|
|
X axis travel
|
210mm
|
|
Y axis travel
|
120mm
|
|
Z axis travel
|
200mm
|
|
Main motor power
|
1.2KW
|
|
Main motor type
|
Servo motor
|
|
Feeding motor torque N.m
|
2.0/2.0/3.0 N.m
|
|
Feeding motor type
|
Stepper motor with closed loop,Z axis with brake
|
|
Controller system
|
After-CNC 1500MDC
|
|
Overall size(LXWXH)
|
1230x770x1800mm
|
|
N.W/G.W
|
310/330kgs
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
