Quick Details
-
Weight (KG):
-
3 KG
-
Product name:
-
ZIXU CO2 Laser Marking Galvo Scanner
-
Application:
-
Laser marking / engraving
-
Laser type:
-
CO2 Laser
-
Input aperture:
-
10 mm
-
Marking speed:
-
5000 m/s
-
Used for:
-
Laser marking machine / engraving machine
-
After Warranty Service:
-
Online support
-
Galvo size:
-
9.5*9.3*11.5 cm
-
Galvo weight:
-
1.65 kg
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Spare Parts Type:
-
Galvo scan head
-
Brand Name:
-
ZIXU
-
Weight (KG):
-
3 KG
-
Product name:
-
ZIXU CO2 Laser Marking Galvo Scanner
-
Application:
-
Laser marking / engraving
-
Laser type:
-
CO2 Laser
-
Input aperture:
-
10 mm
-
Marking speed:
-
5000 m/s
-
Used for:
-
Laser marking machine / engraving machine
-
After Warranty Service:
-
Online support
-
Galvo size:
-
9.5*9.3*11.5 cm
-
Galvo weight:
-
1.65 kg

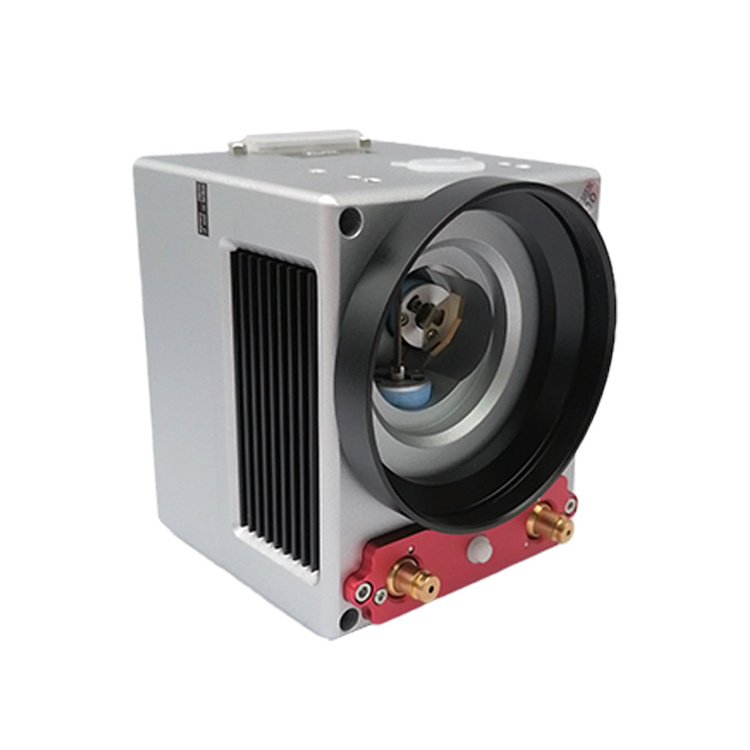

ZIXU CO2 Laser Marking Galvo Scanner Co2 10600nm Laser Engraving Galvanometer Scanner
Product Description
The style display of the galvanometer in the laser marking machine.
Specification
|
Product Name
|
ZIXU CO2 Laser Marking Galvo Scanner Co2 10600nm Laser Engraving Galvanometer Scanner
|
|
Aperture
|
10 mm
|
|
Typical Scan Angle
|
±0.35 rad
|
|
Nonlinearity
|
＜2 mrad
|
|
Tracking Error
|
0.2 ms
|
|
Step Response Time
|
＜0.4 ms
|
|
Repeatability
|
＜20 urad
|
|
Gain Drift
|
＜50 ppm/K
|
|
Zero Drift
|
＜30 urad/K
|
|
Long-term driftover 8 hours(Adter 30min warn-up
|
＜0.1 mrad
|
|
Marking Speed
|
5000 mm/s
|
|
Positioning Seed
|
18 m/s
|
|
Power Requirements
|
±15 VDC
|
|
Input singals(Digital)
|
XY2-100/SPI
|
|
Input singals(Analog))
|
±5 V/±10V
|
|
Galvo size
|
9.5*9.3*11.5 cm
|
|
Galvo weight
|
1.65 kg
|
