Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIXIN
-
Voltage:
-
3 phase 380V
-
Dimension(L*W*H):
-
7.5*2.5*2.5m
-
Power (kW):
-
58
-
Weight:
-
4.2t
-
Warranty:
-
12months
-
Keywords:
-
air bubble film machine
-
Diameter of Screw:
-
65
-
Width of product:
-
1200mm
-
Speed:
-
1000m/h
-
Max Output:
-
70kg/h
-
Material:
-
LDPE
-
system:
-
once-through shaping technique
-
Characteristic:
-
good cushioning effect
-
Use:
-
packaging film
-
Power(W):
-
58KW
-
Output (kg/h):
-
50 - 70 kg/h
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
1:30
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIXIN
-
Voltage:
-
3 phase 380V
-
Dimension(L*W*H):
-
7.5*2.5*2.5m
-
Power (kW):
-
58
-
Weight:
-
4.2t
-
Warranty:
-
12months
-
Keywords:
-
air bubble film machine
-
Diameter of Screw:
-
65
-
Width of product:
-
1200mm
-
Speed:
-
1000m/h
-
Max Output:
-
70kg/h
-
Material:
-
LDPE
-
system:
-
once-through shaping technique
-
Characteristic:
-
good cushioning effect
-
Use:
-
packaging film
-
Power(W):
-
58KW
-
Output (kg/h):
-
50 - 70 kg/h
-
Certification:
-
CE
air bubble film machine

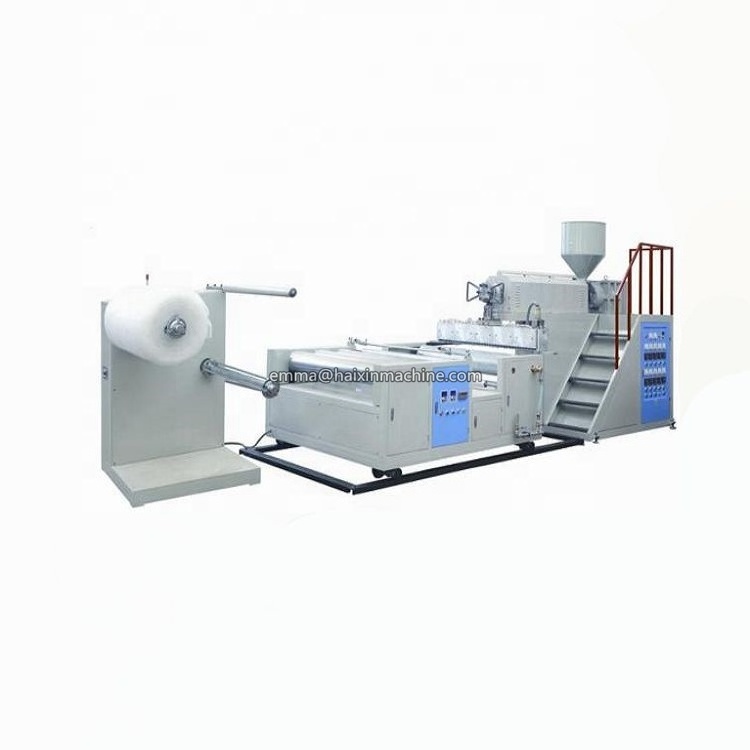

PE Air Bubble Film Machine
CHARACTERISICS
This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.
Polyethylene air-cushion film (also called polyethylene bubble film) not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc. so it has been widely used for post parcel, precision instrument, bicycle, polyurethane furniture, etc.
OPTLONAL EQUIPMENT
|
Model |
FTPE-1200 |
||||
|
Diameter of Main and Deputy Extruder Screw |
φ60mm |
φ65mm |
φ75mm |
φ90mm |
φ95mm |
|
Main and Deputy Motor |
15kw |
15kw |
18.5kw |
30kw |
37kw |
|
Width of products |
1000mm |
1200mm |
1500mm |
1800mm |
2000mm |
|
Output |
60kg/h |
70kg/h |
90kg/h |
120kg/h |
150kg/h |
|
Total Power |
50kw |
58kw |
70kw |
86kw |
95kw |
|
Ratio (L/D) |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
|
Line Speed |
1000m/h |
1000m/h |
1000m/h |
1000m/h |
1000m/h |
|
Weight of Machine |
3.8t |
4.2t |
5t |
5.8t |
6t |
|
Overall Dimension |
7.5*2.3*2.5m |
7.5*2.5*2.5m |
7.5*2.8*2.5m |
7.5*3.1*2.5m |
7.5*3.3*2.5m |
If you need more information, please contact us. We assure you reply the email within 24 hours.
1.We welcome the customers to visit the factory and we will pick you up.
2.Our machines use famous brand parts and test every part of the machine in the process of production.
3.Our engineers can install machines for you, and we can also train your employees until they can operate the machine independently. Of course, you can learn and install in our factory
4.We can provide a warranty of 14 months. If the machine has a non-human failure (except for vulnerable parts), we will provide you with a maintenance plan.
5.Welcome to send us an inquiry
