Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STAR CHINA MOTOR
-
Model Number:
-
320, 2.8V
-
Torque:
-
≥45.0g.cm min (Custom)
-
Rated Voltage:
-
2.8V (testing voltage)
-
No-load Speed:
-
7000±10%rpm
-
Load speed:
-
7000±10%rpm
-
load capacity:
-
10.0g-cm
-
load current:
-
≤400mA
-
starting voltage:
-
DC:1.0V
-
starting current:
-
2200 mA max
-
Noise:
-
Low Voice
-
no-load current:
-
≤100mA
-
Direction of rotation:
-
CW
Quick Details
-
Speed(RPM):
-
custom
-
Continuous Current(A):
-
custom
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STAR CHINA MOTOR
-
Model Number:
-
320, 2.8V
-
Torque:
-
≥45.0g.cm min (Custom)
-
Rated Voltage:
-
2.8V (testing voltage)
-
No-load Speed:
-
7000±10%rpm
-
Load speed:
-
7000±10%rpm
-
load capacity:
-
10.0g-cm
-
load current:
-
≤400mA
-
starting voltage:
-
DC:1.0V
-
starting current:
-
2200 mA max
-
Noise:
-
Low Voice
-
no-load current:
-
≤100mA
-
Direction of rotation:
-
CW
Product Description
|
Product Name
|

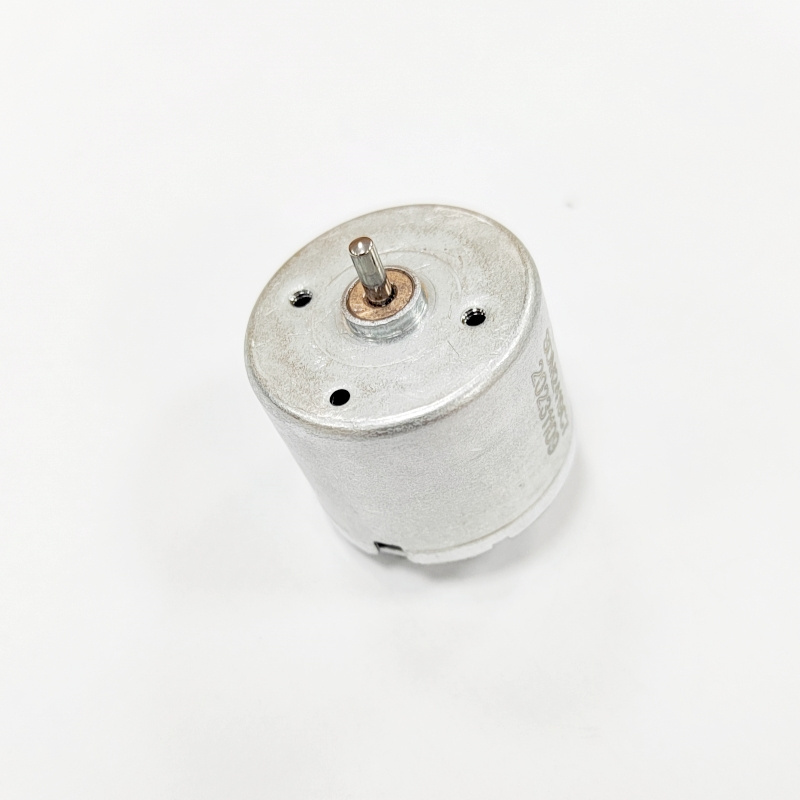

Diameter 24.4mm custom voltage Dc Micro brush Motor
|
|
Package
|
Divider Polystyrene / Hard paper box / water proof layer
|
|
Surface flatness
|
below 0.04mm
|
|
Shaft Outer diameter
|
φ2.0-0.001/-0.003
|
|
Stacked rivet size
|
10.5±0.03
|
|
Stacked rivet thickness
|
5.0±0.12(10pieces）
|
|
Shaft head size
|
18.23±0.12
|
|
Winding tesion
|
70~80CN
|
|
2R/3 electric resistance
|
1.5±10%Ω
|
1.
High and low temperature test
,
High-quality material, not easy to rust. wear-resistant, non-rusting and extended service life.
2. Small size, easy to fix, no slipping, saving installation time
3. Thicken the magnet to form a large magnetic field, increase the motor torque, and prevent signal interference and external propagation
2. Small size, easy to fix, no slipping, saving installation time
3. Thicken the magnet to form a large magnetic field, increase the motor torque, and prevent signal interference and external propagation
* High Torque * Low Noise * Longer life time up to 200,000 times unlock
Model No.: 320 ,Testing voltage 2.8V
Low noise,low current no spark
Precision mini Motor
no slipping, saving installation time
320 small motor has low starting current, low noise and stable operation. This motor is often used in small solar production and can produce a wide variety of works using solar clean energy. Shaft extension length, Volt and Speed: Can be customized according to customer's request. Use: Household appliances dc motor 320
Low noise,low current no spark
Precision mini Motor
no slipping, saving installation time
320 small motor has low starting current, low noise and stable operation. This motor is often used in small solar production and can produce a wide variety of works using solar clean energy. Shaft extension length, Volt and Speed: Can be customized according to customer's request. Use: Household appliances dc motor 320
