Quick Details
-
Weight:
-
2500 kg
-
Product name:
-
Truck Mounted Road Cleaning Car Street Sweeper Cleaner Machine
-
Sweeping width:
-
2.5M
-
length of work:
-
4-8H
-
Rated flow of cleaning water:
-
23L/min
-
Maximum cleaning capacity:
-
25000㎡/h
-
Trash bin volume:
-
2300L
-
battery capacity:
-
72V 400Ah(Lithium battery option)
-
Braking method:
-
Hydraulic power hydraulic brake four-wheel drum brake
-
Curb quality:
-
2500KG
-
Dimensions:
-
4750*1550*2400mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Baiyi
-
Dimension(L*W*H):
-
4750x1550x2400
-
Weight:
-
2500 kg
-
Product name:
-
Truck Mounted Road Cleaning Car Street Sweeper Cleaner Machine
-
Sweeping width:
-
2.5M
-
length of work:
-
4-8H
-
Rated flow of cleaning water:
-
23L/min
-
Maximum cleaning capacity:
-
25000㎡/h
-
Trash bin volume:
-
2300L
-
battery capacity:
-
72V 400Ah(Lithium battery option)
-
Braking method:
-
Hydraulic power hydraulic brake four-wheel drum brake
-
Curb quality:
-
2500KG
-
Dimensions:
-
4750*1550*2400mm

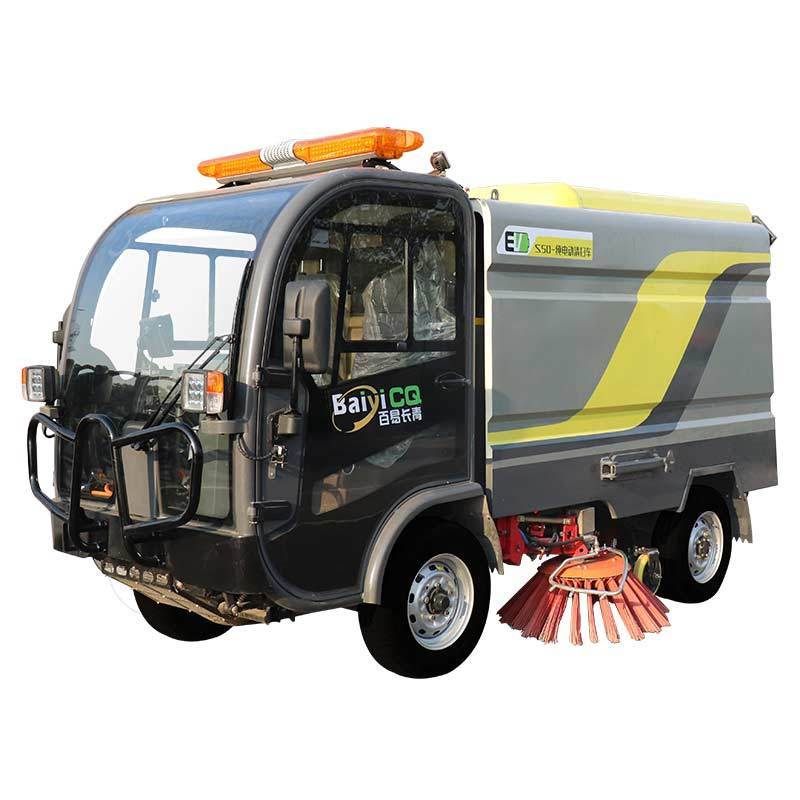

Product Description of Electric Truck Mounted Road Cleaning Car Street Sweeper Cleaner Machine
The whole vehicle has good passing performance, strong suction power and good dust suppression effect when transferring.
The whole vehicle is electronically controlled and hydraulically executed. It adopts an electric negative pressure three-stage dry and wet dust separation filter system, inertial cyclone dust removal, water mist dust reduction, water circulation filtration and dust removal, maintenance-free stainless steel sintered filter filter dust removal and electric sweeping dust suppression system, clean Strong force and low overall operating sound.
Product Paramenters of the Electric Truck Mounted Road Cleaning Car Street Sweeper Cleaner Machine
|
Sweeping width |
M |
2.5 |
|
length of work |
h |
4-8 |
|
Cleaning speed |
Km/h |
>5 |
|
Speed of work |
Km/h |
>5 |
|
Rated flow of cleaning water |
L/min |
23 |
|
Maximum cleaning capacity |
m²/h |
25000 |
|
Maximum suction particle size |
mm |
50 |
|
Discharge angle |
|
≥45 |
|
Working cycle time of one unloading |
s |
≤35 |
|
Trash bin volume |
L |
2300 |
|
battery capacity |
/ |
72V 400Ah( Lithium battery option ) |
|
Drive motor model |
V /kw |
72/7.5 |
|
Minimum turning radius (turn in place) |
5 |
5 |
|
Minimum ground clearance |
mm |
≥145 |
|
Top speed |
Km/h |
40 |
|
Gradeability |
% |
Full load 25, no load 30 |
|
Load capacity |
kg |
≤2500 |
|
Braking method |
/ |
|
|
Speed of work |
Km/h |
2-8 |
|
Body structure |
/ |
Rigid cold riveted body |
|
Front/rear suspension type |
/ |
7 front and rear 8 leaf spring suspensions |
|
Is there a high-pressure flushing function |
/ |
Have |
|
Curb quality |
kg |
2500 |
|
Load capacity |
kg |
≤2500 |
|
Dimensions |
mm |
4750*1550*2400 |
