1: WARRANTY
Provide one year warranty ,man-made damage without insurance, the vulnerability (roller ,lamp and pump) of non-insurance.and the transportation fee should be paid by seller when change the spare parts in one year.
2: INSTALLATION AND DEBUGGING
The seller will be in charge of installation, the buyer should bear the costs of lodeing and food and round-trip expenses for the seller.after installation and debugging time over 10 days,the buyer should be pay for the extra engineer fee RMB500yuan one d
ay.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TAISAN
-
Voltage:
-
380v
-
Power:
-
12..75kw
-
Dimension(L*W*H):
-
2100*2500*1700mm
-
Weight (KG):
-
1500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
working width:
-
1320mm/1100/650
-
working height:
-
2-80mm
-
feeding speed:
-
0-30M/MIN
-
paint type:
-
UV/PU/PE/NC
-
paint thickness:
-
0.002-0.35mm
-
paint container capacity:
-
20L
-
air flow meter:
-
400L/MIN
-
power supply:
-
220V/380V50HZ
-
power weight:
-
1500/1200/1000
Quick Details
-
Machine Type:
-
roller coating machine, Painting Equipment, Plc Controller Programmable Logic Controller, Conveying Equipment, Coating Equipment
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TAISAN
-
Voltage:
-
380v
-
Power:
-
12..75kw
-
Dimension(L*W*H):
-
2100*2500*1700mm
-
Weight (KG):
-
1500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
working width:
-
1320mm/1100/650
-
working height:
-
2-80mm
-
feeding speed:
-
0-30M/MIN
-
paint type:
-
UV/PU/PE/NC
-
paint thickness:
-
0.002-0.35mm
-
paint container capacity:
-
20L
-
air flow meter:
-
400L/MIN
-
power supply:
-
220V/380V50HZ
-
power weight:
-
1500/1200/1000
Product Description

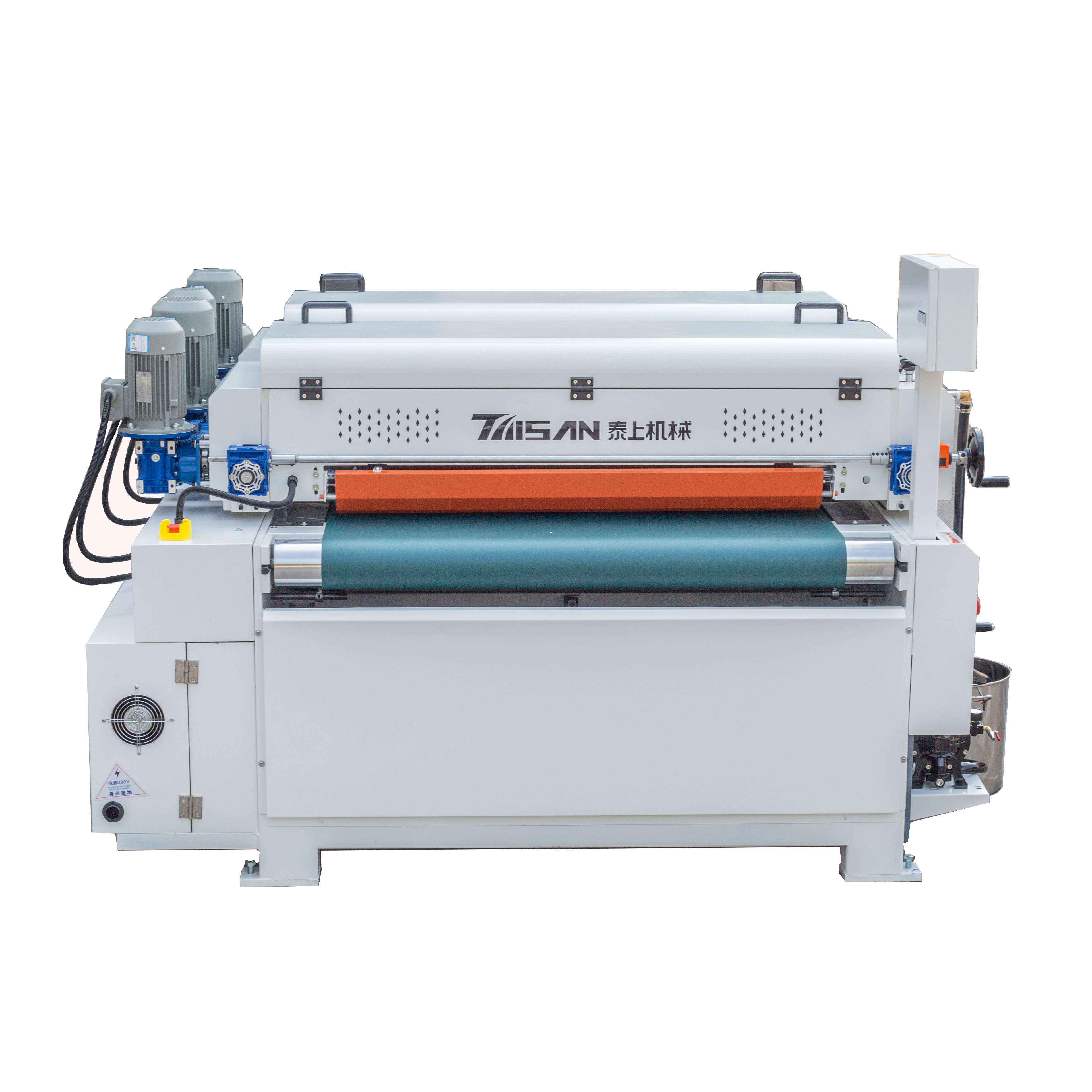

High precision double roller coating machine
A
pplication ：
suitable for furniture, wooden doors, cabinets, floors, and other flat panels and some of the modeling products for paint coating.
Working principle ：
air pump circle oil and roller coating uniformly to the flat board surface.
Coating advantage：
roller coater ensure the surface paint to be smooth, with good plumpness,
and
with
no chromatic difference. High efficiency, low cost,with paint recycle system no waste. suitable for primer & finishing coat painting.
|
Model
|
1420#
|
|
working width
|
0-1320MM
|
|
working height
|
2-80MM
|
|
Min working length
|
300MM
|
|
operation height
|
900MM
|
|
total power
|
12.75KW
|
|
voltage
|
380V60HZ
|
|
dimension
|
1200*2600*1700
|
|
weight
|
1500kg
|
|
coating weight
|
10-25g/㎡
|
Advantage
1
.This machine is avalible to the base,surface paint for the furniture,cabinet,decorative boards, which different materials as wood,MDF,wood piece and so on.
2
.It can ensure the surface of the paint to be smooth, with good plumpness, and with no chromatic difference.
3
. High efficiency, low cost,with paint recycle system no waste. suitable for primer & finishing coat painting.
4.
Compared and instead of manual l spraying, roller coater machine is time saving, labor saving, high efficiency, good environmental protection, can save more than 50% paint;
5.
Equipped with imported pumping air pump, paint can be recycled through the oil groove, paint 100% utilization;
6
. The roller is made of silica gel which raw materials imported from Japan. with good solvent resistant and wear-resistant, and has good surface coating effect.
7.
The coater roller and the electronic roller and the conveyor controlled by separate motor\reducer\frequency, with best precision and stability.
Partner and customer visit
Our products used PE cover and wooden packing for double protect .
