Quick Details
-
Brand Name:
-
ITD
-
Place of Origin:
-
Guangdong, China
-
Backlight:
-
LED 50000 Hours
-
Interface:
-
VGA, DVI, HDMI- inputs, DC 12V
-
Material:
-
Steel
-
Accessories:
-
HDMI- cable, power supply
-
OSD language:
-
multi languages
-
MOQ:
-
1pcs
-
Certification:
-
CE/RoSH/FCC/ISO9000
-
Warranty:
-
2 years
-
Resolution:
-
1280*1024
Quick Details
-
Brightness:
-
250cd/m
-
Contrast Ratio:
-
1000:1
-
Panel Type:
-
TFT
-
Brand Name:
-
ITD
-
Place of Origin:
-
Guangdong, China
-
Backlight:
-
LED 50000 Hours
-
Interface:
-
VGA, DVI, HDMI- inputs, DC 12V
-
Material:
-
Steel
-
Accessories:
-
HDMI- cable, power supply
-
OSD language:
-
multi languages
-
MOQ:
-
1pcs
-
Certification:
-
CE/RoSH/FCC/ISO9000
-
Warranty:
-
2 years
-
Resolution:
-
1280*1024

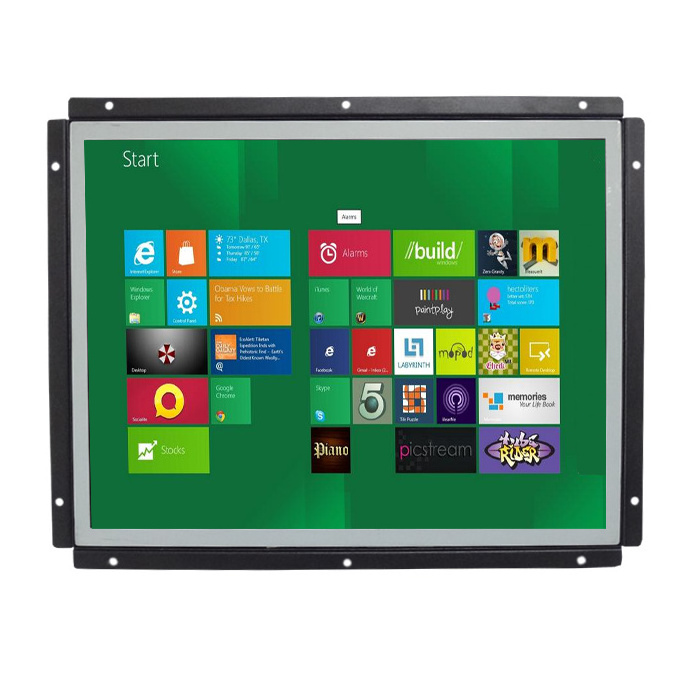

17 inch open frame monitor LED backlight with touch screen for Kiosk, gaming, industrial automation
ITD industrial open frame LCD displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application, which are fully-integrated, commercially off-the-shelf units that combine high-performance different touch technologies in industrial-grade LCD flat panels, with sleek and flush mount open frame front surface industrial design. ITD industrial monitors provide reliability, durability, and expected long product life. The rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial environments. ITD full-range selection is provided in screen sizes from 5” to 82”.
1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2.Exceptional quality and highly engineered industrial monitors
3.Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4.All steel construction designed for harsh and industrial environments
5.Easy-to-install console and Open Frame chassis-mount display
6.Multiple mounting options (100mm VESA mount and side brackets)
7.Accuracy in high-use applications
9.Supports Windows, Linux OS, Android, Mac OS, etc
10.CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMII, AV, S-Video, BNC etc multiple inputs/outputs optional
12.Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running
|
LCD Panel |
|
|
Model Name |
ITD17OFT1S1 |
|
Screen Size (diagonal) |
17" |
|
Display Resolution (pixels) |
1280x1024 |
|
Active Display Area (mm) |
337.92 (H) x 270.34 (V) |
|
Pixel Pitch(mm) |
0.264 |
|
Brightness (cd/m 2) |
250 (typ.) |
|
Contrast Ratio |
1000:1 (typ.) |
|
Viewing Angles |
85/85/80/80 |
|
Backlight Lifetime |
50000 |
|
Touch Screen |
|
|
Type |
Resistive or IR or SAW |
|
Touch Connectors |
USB or RS232 |
|
Interface |
|
|
Signal Connector |
VGA, DVI |
|
Optional Interface |
DVI / AV |
|
Power |
|
|
Power Source |
DC 2.0 12V AC 100~240 V,Universal,10% |
|
Power Consumption |
32W |
|
Mechanical |
|
|
Material |
Steel housing |
|
Mounting |
M3 holes in the rear of monitor |
|
Certifications |
|
|
Compliance |
Meet CE,ROHS,FCC,CCC |
|
Order Information |
|
|
ITD17OFT1S1 |
17"open frame monitor with touch |
|
ITD17OFN1S1 |
17"open frame monitor no touch |
Firm, safe, standard cartons with foams
Wooden Shelf or Case for big sizes and big quanity
All ITD products come standard with a 2-year comprehensive warranty. Additionally, our extended warranty service, offered up to 3 years, provide extra peace of mind that any problem will be solved quickly and effectively. ITD also offers tailored service contracts to meet our partners’ specific needs.
With service and support centers in Hong Kong, China mainland, Europe, we are able to respond quickly and efficiently to ensure uninterrupted productivity for our customers. We are committed to speedy turnaround times on repairs and service needs.
- DOA Service (Dead On Arrival):
To run DOA within 1 month after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.
- RMA Service (Return Merchandise Authorization):
To run RMA within 24 months after shipment (TFT LCD panels come with 12months' warranty). Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
