Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINGBO
-
Voltage:
-
as the clients requirement
-
Dimension(L*W*H):
-
5.5*1.4*1.5m
-
Weight:
-
4.2 kg
-
Feeding width:
-
depend on drawing
-
Marketing Type:
-
Hot sale
-
Raw material:
-
Galvanized Sheet
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
45#steel
-
Speed:
-
8-12m/min
-
main body:
-
350H
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Motor:
-
4kw
-
Control:
-
Delta
-
Cutting type:
-
Hydraulic Shearing
-
Certification:
-
CE ISO BV
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
5-20m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINGBO
-
Voltage:
-
as the clients requirement
-
Dimension(L*W*H):
-
5.5*1.4*1.5m
-
Weight:
-
4.2 kg
-
Feeding width:
-
depend on drawing
-
Marketing Type:
-
Hot sale
-
Raw material:
-
Galvanized Sheet
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
45#steel
-
Speed:
-
8-12m/min
-
main body:
-
350H
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Motor:
-
4kw
-
Control:
-
Delta
-
Cutting type:
-
Hydraulic Shearing
-
Certification:
-
CE ISO BV
Roller shutter door frame cold roll forming machine used building material
Common drawing for reference,if you can your own request,can design as request . Speed can up to 25m/min
|
|
|
|
Remark |
Normal size for reference,can design the machine as request. |
|
Name |
SET |
Use TO |
|
3 T Manual decoiler |
1 set |
Loading the coil |
|
Main forming machine and cutter |
1 set |
12 stations forming the shape.Cutting the length as request. |
|
PLC control system |
1set |
1. Language as request 2. Text and touch screen for chose 3. Brand PLC:Panasonic /Delta /Mitsubish |
|
Oil pump |
1 set |
Make coolling as request |
|
Product stand |
1 set |
Stand finishing product |
|
Remark |
All equipment can order as customer ’ s request |
|
Product photo and drawing( can design as request)
Production Flow
Gear feeding design --forming --strightening --Mould moving cutting(cutting didn't stop working)--stand
Machine photo

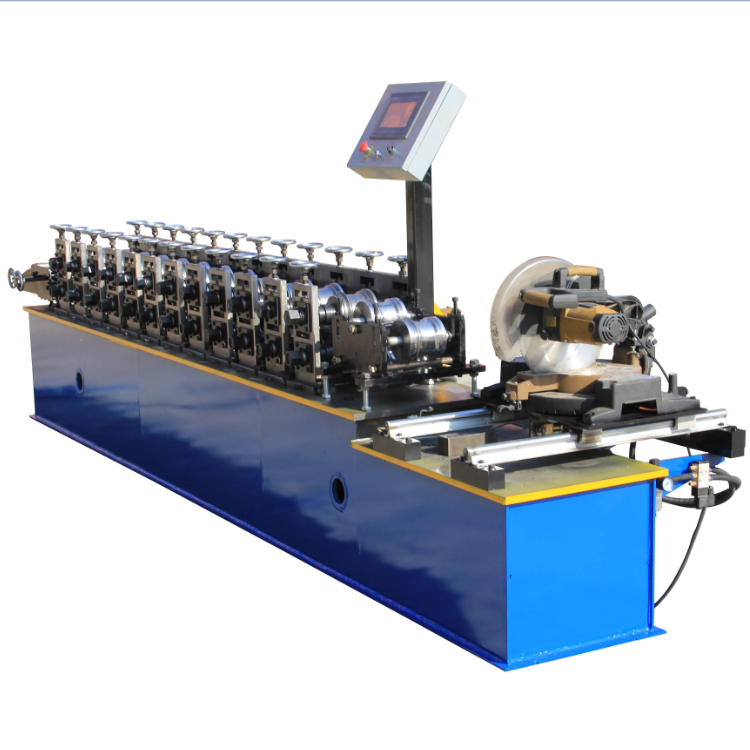

door frame making machine
main roll forming machine
sample machine
cutting equipment
feeding and flattening equipment
1 .5 T manual decoiler( can add feet for fix with floor)
Control part: control brand can request ( Panasonic /Delta /Mitsubish ) Servo motor to up the high speed
