Quick Details
-
Production Capacity:
-
5-10m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HongYunTaoJi
-
Voltage:
-
380V/220V,50HZ/60HZ
-
Dimension(L*W*H):
-
6700*2300*1850mm
-
Weight:
-
6000 kg
-
Marketing Type:
-
Hot Product 2022
-
Local Service Location:
-
None
-
After sales Service Provided:
-
Online support
Quick Details
-
Type:
-
Stone Polishing Machine
-
Power:
-
43KW
-
Cutting thickness (max):
-
30mm
-
Production Capacity:
-
5-10m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HongYunTaoJi
-
Voltage:
-
380V/220V,50HZ/60HZ
-
Dimension(L*W*H):
-
6700*2300*1850mm
-
Weight:
-
6000 kg
-
Marketing Type:
-
Hot Product 2022
-
Local Service Location:
-
None
-
After sales Service Provided:
-
Online support

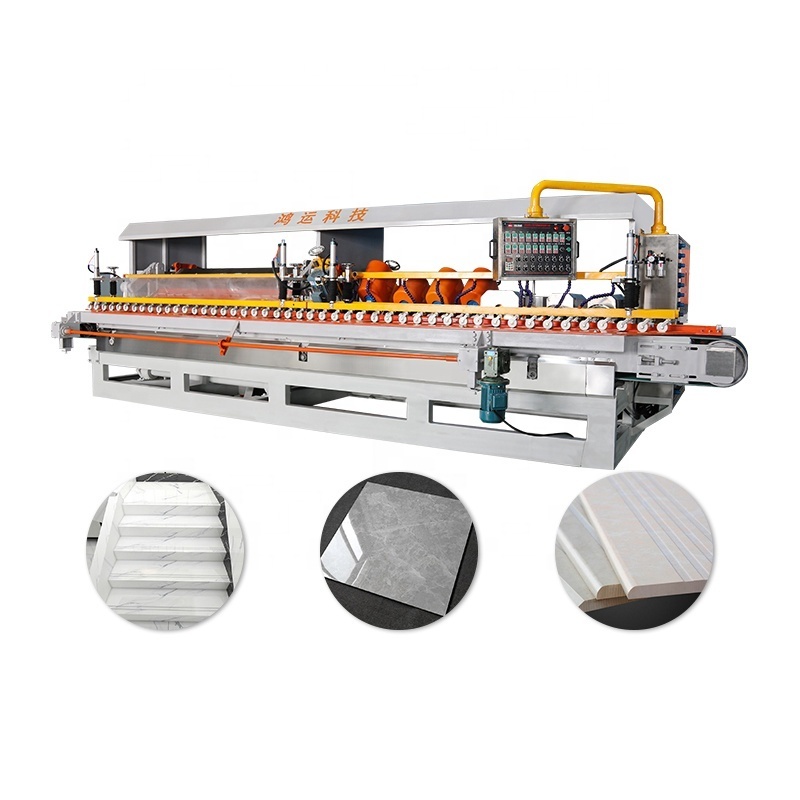

14 Grinding head bullnose polishing machine is a heavy-duty bullnose polishing machine newly designed by our company, which is fully automatic and operating intelligently with a luxurious top-level configuration.
The processing technology is mature and stable, high efficiency.
Functions:
Round edge grinding, 45 degree chamfering, Edge trimming, Down chamfering, Anti-slip grooving, L-shaped edge grooving.
Purpose:
Stair tiles, Skirting tiles, 45 degree V-shaped tiling on the inner wall, Inner wall side grooving.
|
Grinding heads
|
Conveyor belt width
|
Machinable width
|
Weight
|
|
14
|
350mm
|
90-1200mm
|
6000Kg
|
|
Diameter of edging wheels
|
Processing speed
|
Machinable thickness
|
Machine size
|
|
200mm
|
5-12m/min
|
6-30mm
|
6000*2300*1850mm
|
|
Diameter of grinding heads
|
Machinable anti-slip grooves
|
Total power
|
|
|
90/110mm
|
3-4
|
37KW
|
|
Cutting belt edging
The cutted begonia corners will not crack or drop the corners
Without size limit
Can be cut at any size
Without size limit
Can be cut at any size
Automatic degree 45 degree inner corner cutting machine
The biggest feature of this machine is that it does not need to adjust the size, and the processing of any size is not limited, which greatly improves the production efficiency.
Hand-push CNC single blade multi-function cutting machine
Maximum cutting size 1.8 meters. The guide rail is fully upgraded to: oil-immersed V-wheel guide rail, the accuracy is improved and the error is within 0.1mm. Using International TBI3210 lead screw. CNC automatic size adjustment.
