Capacities : 30t
●
Alloy Steel material
●
Various vehicles weighing
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Fixed base
-
Description:
-
High comprehensive precision, high stability, 607A Bridge Load Cells
-
Model Number:
-
607A
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Labirinth
-
Theory:
-
Resistance Sensor
-
Output:
-
Analog Output mV/V
-
Rated Load:
-
30t
-
Material:
-
Alloy Steel
-
Application:
-
Various vehicles that need to be weighed
-
OEM/ODM:
-
Available
Quick Details
-
Use:
-
Pressure Sensor
-
Series:
-
Shear Beam Load Cells
-
Features:
-
Compact structure, easy to install
-
Mounting Type:
-
Fixed base
-
Description:
-
High comprehensive precision, high stability, 607A Bridge Load Cells
-
Model Number:
-
607A
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Labirinth
-
Theory:
-
Resistance Sensor
-
Output:
-
Analog Output mV/V
-
Rated Load:
-
30t
-
Material:
-
Alloy Steel
-
Application:
-
Various vehicles that need to be weighed
-
OEM/ODM:
-
Available

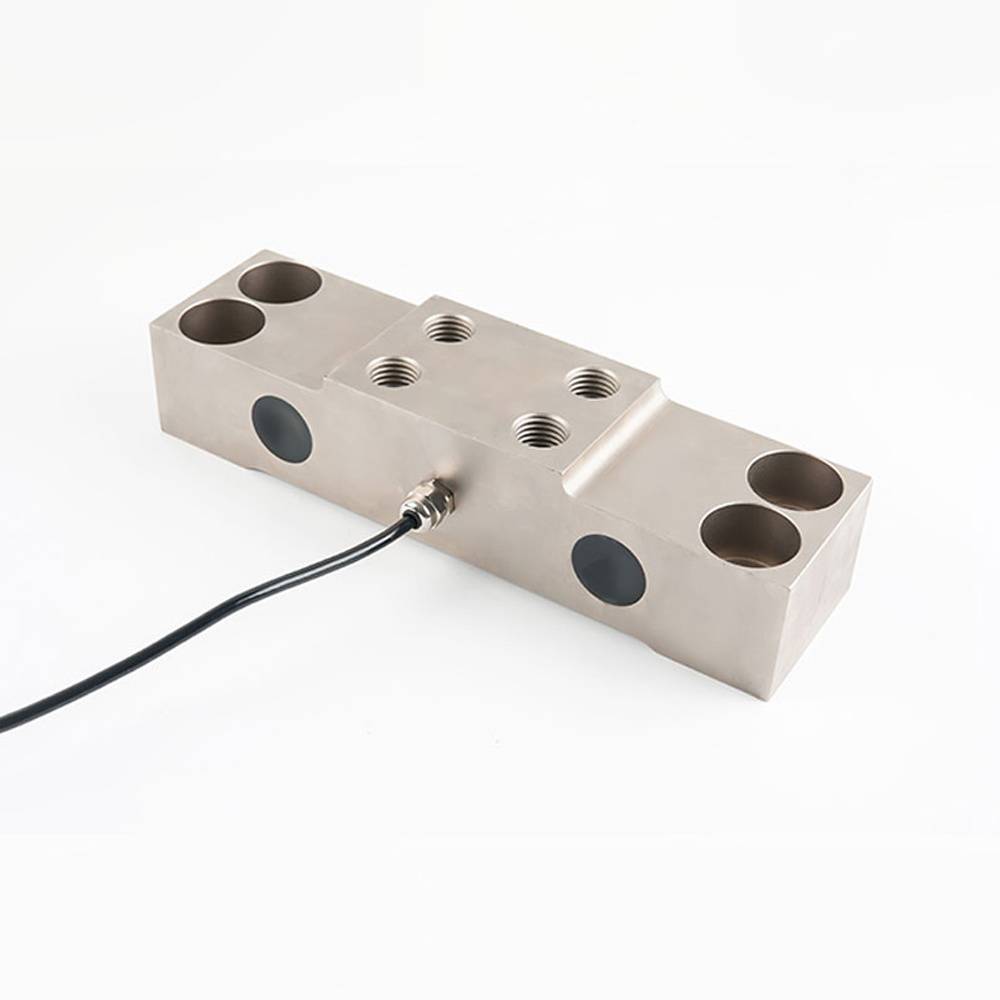

607A
Load Cell
607A Load Cell
Description:
2. Compact structure, easy to install
3. High comprehensive precision, high stability
4. Alloy Steel material
5. Degree of protection reaches to IP68
6. Vehicle weighing system
|
Dimension（in mm）:
|
|
|
||
|
Specifications:
|
|
|
||
|
Rated Load
|
t
|
30
|
||
|
Rated Output
|
mV/V
|
1
|
||
|
Zero Balance
|
%F.S.
|
±2
|
||
|
Comprehensive Error
|
%F.S.
|
±0.3
|
||
|
Repeatability
|
%F.S.
|
±0.1
|
||
|
Recommended Excitation Voltage
|
VDC
|
5-15
|
||
|
Input impedance
|
Ω
|
760±10
|
||
|
Output impedance
|
Ω
|
700±5
|
||
|
Insulation resistance
|
MΩ
|
≥3000（50VDC）
|
||
|
Safe Overload
|
%R.C.
|
150
|
||
|
Ultimate Overload
|
%R.C.
|
200
|
||
|
Material
|
|
Alloy Steel
|
||
|
The length of the cable
|
m
|
10
|
||
|
Wiring code
|
Ex:
|
Red：＋ Black：–
|
||
|
|
Sig:
|
Green：＋ White：–
|
||
Applications:
1.
Smart logistics
2. Smart sanitation
3.Scientific Governance
4. Cement Flow Control
5. Hazardous chemicals transportation control
6. Medical Waste Supervision
7. Various vehicles that need to be weighed
Our Services:
Service standards:
we are committed to provide a high quality and responsive service to all clients The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping. Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM ODM available
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping. Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM ODM available
Q1: Are you trading company or manufacturer ?
A1: We are a professional and cost-effective manufacturer of load cells and accessories.
Q2: Do you have your own R&D team?
A2: Yes, we own professional team with numbers of senior expert R&D engineers. They can customize products as your requirements, your samples or technical drawings.
Q3: How about the quality?
A3: We have a complete process safety guarantee system, and multi-process inspection and testing.
Q4: How’s the package?
A4: Normally are cartons, but also we can pack it according to your requirements.
Q5: How’s the delivery time?
A5: Generally, it will take 25 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: Is there any after-sale service?
A6: After you receive our product, if you need, we will offer you the after-sale sevice by e-mail, TradeManager, telephone and QQ etc.
