And can insert the inclination in the 10° Mold and other within the scope of etc.
Work matter,Enterprise suitable for single or small batch production.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2180*1505*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3500 KG
-
Product Name:
-
CNC slotting machine 5032
-
max. slotting length:
-
320mm
-
Workpiece max weight:
-
500kg
-
Ram stroke adjustment:
-
315mm
-
Knife Max size:
-
25*40mm
-
Work table size:
-
600X610mm
-
worktable and carriage distance:
-
490mm
-
Main Power:
-
4KW
-
Spindle speed:
-
960r.p.m
-
System:
-
Siemens ,KND
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2180*1505*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3500 KG
-
Product Name:
-
CNC slotting machine 5032
-
max. slotting length:
-
320mm
-
Workpiece max weight:
-
500kg
-
Ram stroke adjustment:
-
315mm
-
Knife Max size:
-
25*40mm
-
Work table size:
-
600X610mm
-
worktable and carriage distance:
-
490mm
-
Main Power:
-
4KW
-
Spindle speed:
-
960r.p.m
-
System:
-
Siemens ,KND
Looking for excellent machine? Check out our generous range of various metal-working appliations from lathe, cnc lathe, machining center, milling machine, cnc milling machine, drilling machine, band saw, drill press, surface grinder to the spareparts & accessories related from
Sumore Machinery
SP5032 CNC Slotting Machine Application:
This machine be used for interpolation plane, forming surface and Keyway Etc.
Product Overview

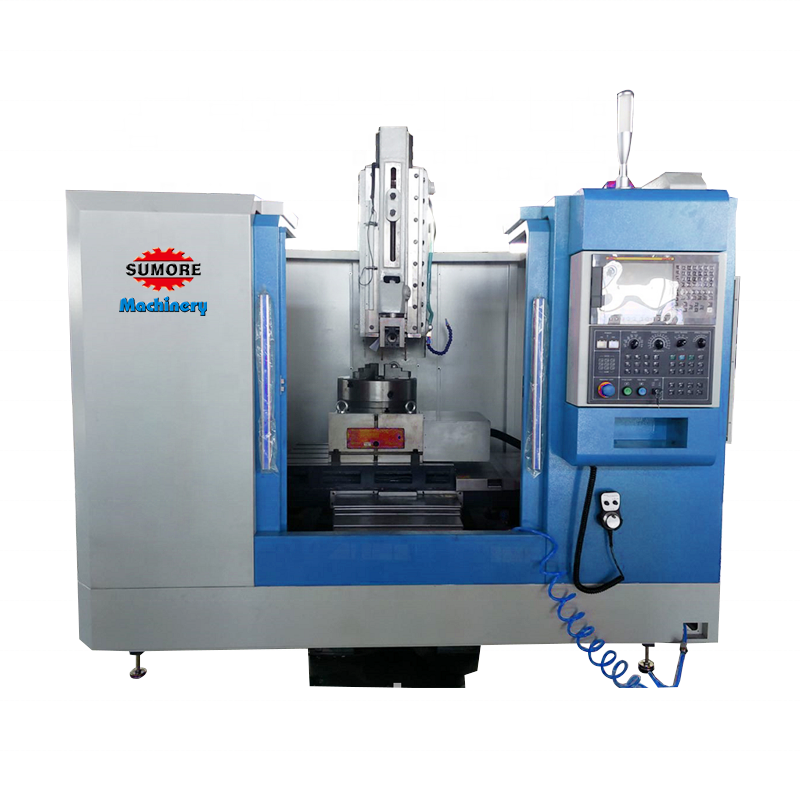

Sumore CNC Slotting Machine SP5032
New Arrival CNC Slotting Machine SP5032 with 4 axis
hydraulic CNC vertical slotting machine with 320mm slotting length SP5032A.
1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
PRODUCT SPECIFICATIONS
|
Model
|
SP-5032 CNC Slotting
|
|
max. slotting length
|
320mm
|
|
Workpiece max weight
|
500kg
|
|
movement times
|
20.32.50.80.r.p.m
|
|
Ram stroke adjustment
|
315mm
|
|
Slide angle of the ram
|
0-8°
|
|
The knife head supporting hole axis to column forearm distance
|
600mm
|
|
Knife Max size
|
25*40mm
|
|
Work table size
|
600X610mm
|
|
Distance between worktable and lower end of carriage
|
490mm
|
|
The maximum longitudinal movement distance of worktable is X axis
|
480/630mm
|
|
The maximum longitudinal movement distance of worktable is Y axis
|
480/560mm
|
|
X to the motor servo
|
7.7NM
|
|
X to the motor servo
|
7.7NM
|
|
Main Power
|
4kw
|
|
Spindle speed
|
960r.p.m
|
|
Machine Size
|
2180*1505*2285mm
|
|
Machine weight
|
3500kg
|
|
System
|
Siemens 808DA15, KND1000M-C
|
Hot Products
SALES AND SERVICE NETWORK
Packing & Delivery
|
Package
|
1 set/polywood case (aluminum strips strengthen)
|
|
Minimum Order Quantity (MOQ)
|
1 sets
|
|
Full Container Loading Quantity (FCL)
|
36-60sets/20’GP (unitary; customerized packing available)
|
|
Delivery Time
|
25 calendar days after receiving of advance / full payment
|
