Quick Details
-
Controller Type:
-
MPPT
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1000W inverter 22.2V 91Ah 2kwh solar energy storage system
-
Nominal energy:
-
2000wh
-
Capacity:
-
91/180/200/300Ah ,customized
-
Battery type:
-
Lithium ion NCM Battery
-
Protection class:
-
IP22
-
Size:
-
550*370*480mm
-
Max. Efficiency:
-
84%
-
Warranty:
-
2 years
-
Communication:
-
RS485/RS232
-
BMS function:
-
balance,temp/short circuit/protect, communication, etc
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Grade A Polycrystalline
-
Battery Type:
-
Lithium
-
Controller Type:
-
MPPT
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1000W inverter 22.2V 91Ah 2kwh solar energy storage system
-
Nominal energy:
-
2000wh
-
Capacity:
-
91/180/200/300Ah ,customized
-
Battery type:
-
Lithium ion NCM Battery
-
Protection class:
-
IP22
-
Size:
-
550*370*480mm
-
Max. Efficiency:
-
84%
-
Warranty:
-
2 years
-
Communication:
-
RS485/RS232
-
BMS function:
-
balance,temp/short circuit/protect, communication, etc
Product Description
|
Item
|
|
Specification
|
|
|
AC Charging
|
Input Voltage
|
100V-240V
|
|
|
|
Frequency
|
50-60Hz SineWave
|
|
|
|
Short Circuit
|
Circuit Breaker Protection
|
|
|
Battery
|
Battery Type
|
Lithium Iron NCM battery
|
|
|
|
Battery Capacity
|
22.2V/91Ah
|
|
|
|
Nominal Energy
|
2000WH
|
|
|
|
Protection Function
|
PCM with Overcharge, Over discharge, Over current , short-circuit and Overheat, etc.
|
|
|
System Output
|
AC Output Voltage
|
220V ac /110V ac ±5% / 50Hz/60Hz ±1%
|
|
|
|
Inverter
|
1000W with LCD
|
|
|
|
Max AC Output Power
|
1000W
|
|
|
|
5VDC USB Output
|
2 ports
|
|
|
|
12VDC DC Output
|
3 ports
|
|
|
|
Power Factor
|
≥0.8 （＞30% Load）
|
|
|
|
PV-AC Conversion
|
Typical: 5ms and Max. is 8ms
|
|
|
|
Max. Efficiency
|
84%
|
|
|
|
Over-Load Protection
|
100%～110% Alarm, 110%～125% @255s Shutdown,
125%～150%@60s Shutdown |
|
|
|
External Short- Circuit Protection
|
Auto. Shutdown
|
|
|
Charging System
|
AC-Charger
|
12V/20A
|
|
|
|
Solar Panel (Option)
|
18V/180-300W
|
|
|
Other
|
Working Temp. Range
|
-20℃～50℃
|
|
|
|
Working Humidity
|
10%～90%
|
|
|
|
Protection Class
|
IP22
|
|
|
|
Size (L×W×H) /mm
|
550*370*480mm
|
|
|
|
Weight/Kg
|
35±1.0
|
|
|
|
Noise
|
≤50dB
|
|
|
Accessory
|
Stanard Accessory
|
1. 1pc product 2. Standard charger 3. User maual 4. Box
|
|
|
|
Optional Accessory
|
1. Solar Panel
|
|

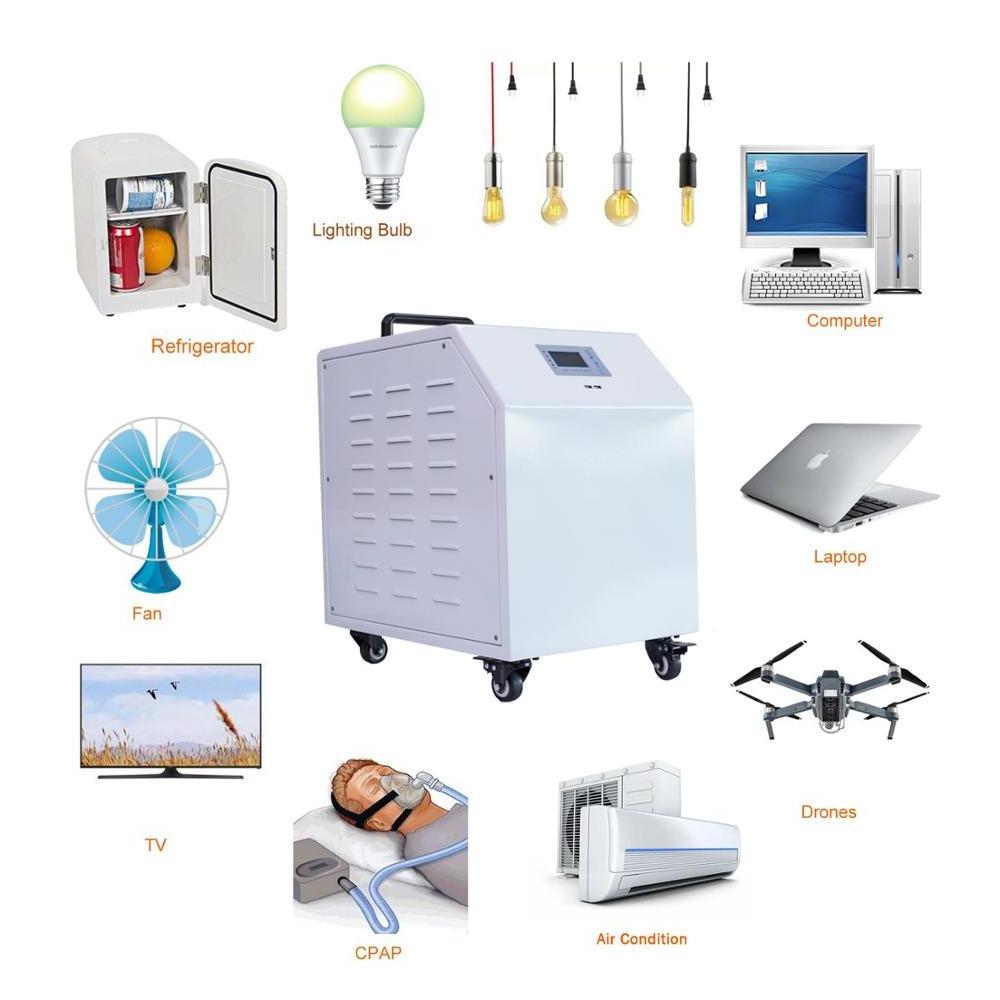

Product detailed pic
Relative product
Our Company
Shenzhen Genxigreen Technology CO.,Ltd
Our company specialize in battery area for more than 7 years. Mainly manufacturing Lithium ion, LiFePO4, LiPolymer battery, and battery pack. Application on solar power storage, ebike battery pack, EV battery, garden mower battery, wireless vancuum cleaner, etc. To offer clients good quality of product and service is our mission. Customizing battery pack is accepted, we have professional engineer, who will offer best solution for your battery project.
