Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
110*44*83CM
-
Weight:
-
84KG
-
Working Pressure:
-
5.5-8bar
-
Marketing Type:
-
Hot Product 2021
-
Warranty of core components:
-
Online support
-
Current:
-
50Hz
-
Tank:
-
100L
-
Speed:
-
1050rpm
-
Air displacement:
-
170L/min
-
Cut-in Pressure:
-
80PSI
-
Cut-out Pressure:
-
115PSI
-
Power:
-
3HP
-
Color:
-
As picture
-
OEM:
-
Support
-
MOQ:
-
1 Pcs
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GRANDFAR
-
Model Number:
-
GFJ2070-100
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
110*44*83CM
-
Weight:
-
84KG
-
Working Pressure:
-
5.5-8bar
-
Marketing Type:
-
Hot Product 2021
-
Warranty of core components:
-
Online support
-
Current:
-
50Hz
-
Tank:
-
100L
-
Speed:
-
1050rpm
-
Air displacement:
-
170L/min
-
Cut-in Pressure:
-
80PSI
-
Cut-out Pressure:
-
115PSI
-
Power:
-
3HP
-
Color:
-
As picture
-
OEM:
-
Support
-
MOQ:
-
1 Pcs

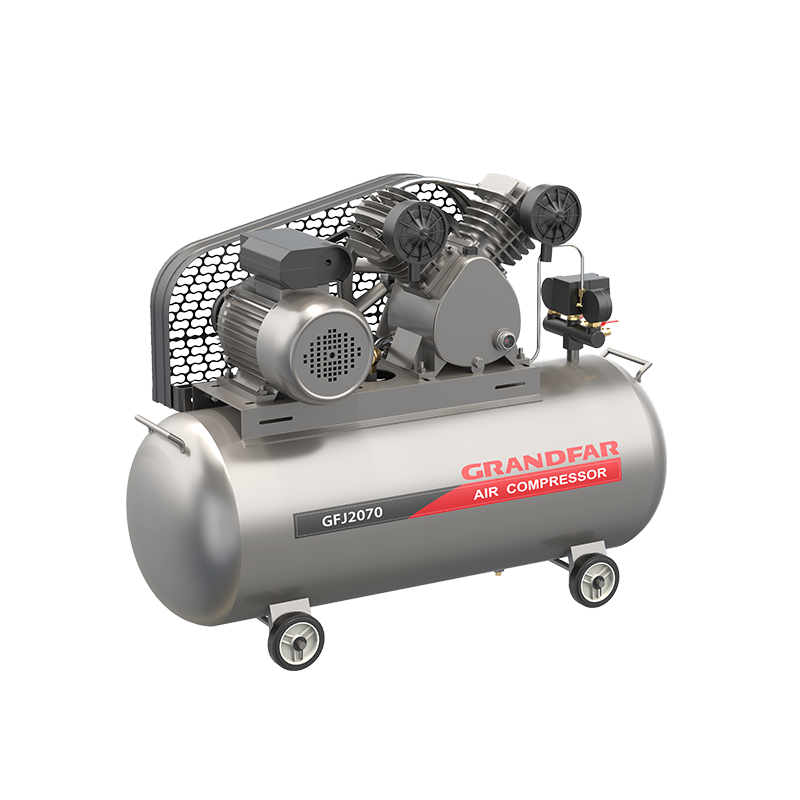

Products Description
Features:
1. Adopt double cylinder symmetrical crankshaft design. Smooth running. Small vibration.
2. Motor (220V) adopts double capacitor starting operation. Motor starting torque is strong. Single capacitor running.
3. The motor adopts full copper wire winding. Can work normally in the range of 0.85 times to 1.1 times the rated voltage.
4. External overload protector. High sensitivity, to prevent the motor from overload operation.
5. Adopt belt drive. Effectively reduce the starting torque of air compressor motor.
6. The valve plate adopts double valve plate valve piece sealing structure. It is conducive to reducing the noise of air compressor .
7. Add cooling piece at the end of exhaust pipe. Increase the heat dissipation area and reduce the exhaust temperature.
8. The main engine wheel adopts wind blade structure design. To reduce the temperature of the main engine.
9. The protective cover adopts the fully enclosed steel wire structure. Good protection.
Parameters：
Model:
GFJ2070-100
Rated voltage:
220V
frequency: 50Hz
Rated Power:
2200W/3
HP
Tank
Capacity
100L
Rotate Speed:
1050rpm,
Air displacement:120L/min
Cut-in Pressure:80PSI
Cut-out Pressure170PSI
Working Pressure:
5.5-8bar
Products Show
|
Model
|
Rated voltage/ Frequency
|
Rated Power
|
Tank Capacity
|
Rotate Speed
|
Air displacement
(@115PSI )
|
Cut-in Pressure
|
Cut-out Pressure
|
|
GFJ2070-100
|
220V~50Hz
|
2200W/3HP
|
100L
|
1050rpm
|
170L/min
|
80PSI
|
115PSI
|
|
GFJ2070-150
|
220V~50Hz
|
2200W/3HP
|
150L
|
1050rpm
|
170L/min
|
80PSI
|
115PSI
|
|
GFJ2070-200
|
220V~50Hz
|
2200W/3HP
|
200L
|
1050rpm
|
170L/min
|
80PSI
|
115PSI
|
|
GFJ2070-250
|
220V~50Hz
|
2200W/3HP
|
250L
|
1050rpm
|
170L/min
|
80PSI
|
115PSI
|
|
GFJ2070-300
|
220V~50Hz
|
2200W/3HP
|
300L
|
1050rpm
|
170L/min
|
80PSI
|
115PSI
|
