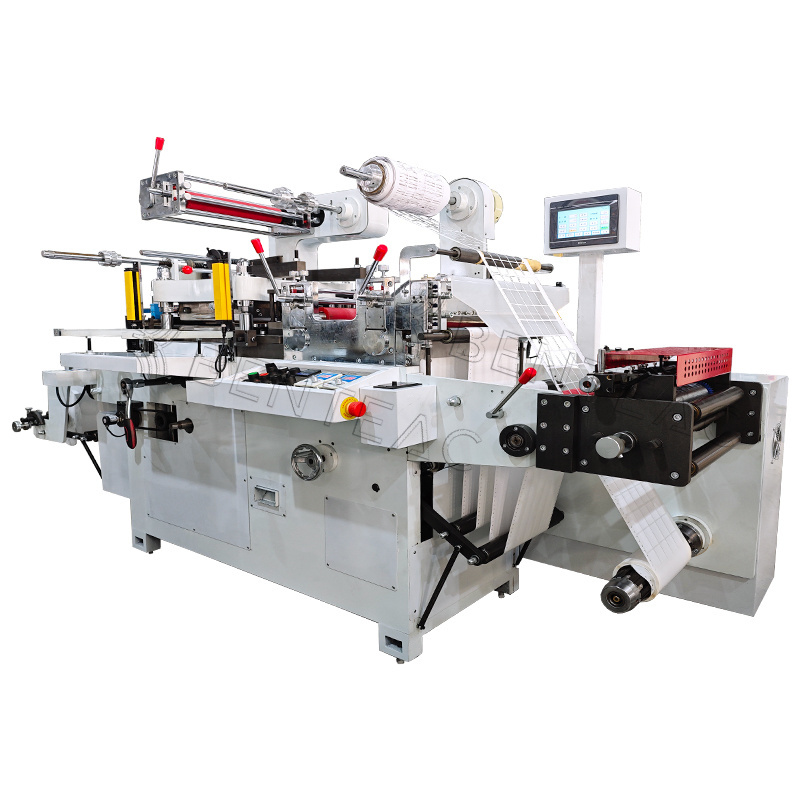

It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GaWang Machine
-
Voltage:
-
220V±10%
-
Dimension(L*W*H):
-
2.6x0.95x1.4 m
-
Weight:
-
1500 kg, About 1500 Kg
-
PLC Brand:
-
OTHER
-
Cutting Speed:
-
20-150m/min
-
Max. Unwinding Dia.:
-
500mm
-
Max. Web Width:
-
320 mm
-
Max. Mould Cutting Width:
-
300 mm
-
Max. Mould Cutting Length:
-
300 mm
-
Orientation Accuracy:
-
±0.15 mm
-
Total Power:
-
3 Kw
-
Power Voltage:
-
220V±10%
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
300 times/min
-
Max. workable width:
-
350mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GaWang Machine
-
Voltage:
-
220V±10%
-
Dimension(L*W*H):
-
2.6x0.95x1.4 m
-
Weight:
-
1500 kg, About 1500 Kg
-
PLC Brand:
-
OTHER
-
Cutting Speed:
-
20-150m/min
-
Max. Unwinding Dia.:
-
500mm
-
Max. Web Width:
-
320 mm
-
Max. Mould Cutting Width:
-
300 mm
-
Max. Mould Cutting Length:
-
300 mm
-
Orientation Accuracy:
-
±0.15 mm
-
Total Power:
-
3 Kw
-
Power Voltage:
-
220V±10%
Description
|
Main Technical Specifications:
|
|
|
|
Cutting Speed
|
20-150m/min
|
|
|
Max. Unwinding Dia.
|
500mm
|
|
|
Max. Web Width
|
350 mm
|
|
|
Max. Mould Cutting Width
|
320 mm
|
|
|
Max. Mould Cutting Length
|
320 mm
|
|
|
Orientation Accuracy
|
±0.15 mm
|
|
|
Total Power
|
3 Kw
|
|
|
Power Voltage
|
220V±10%
|
|
|
Weight
|
About 1500 Kg
|
|
|
Overall Dimensions(LxWxH)
|
2.6x0.95x1.4 m
|
|
Advantage:
1. Human-machine integration: the machine adopts imported electrical appliances to be flattened and pressed up. Laminating, die cutting, feeding, waste discharging, slicing or reeling are completed by computer control at one time. It can be equipped with computer bronzing function. Both sides and longitudinal of the material are tracked and positioned by the optical eye. Fully automatic high-precision die cutting realizes the man-machine integrated function.
2. Scope of application: die-cutting of paper stickers trademarks, nylon film trademarks, and laser anti-counterfeiting trademarks The best supporting equipment for molding machine. It is also an ideal model for each trademark printing factory. Suitable for die cutting and forming in the electronics industry and adhesive tape products industry.
3. Adhesive products: various electronic, electrical appliances, special pads for mobile phones, silicone stickers, Velcro, conductive adhesive, strong double-sided adhesive.
4. Dustproof materials: cosmetic cotton, camera cotton, high-density sponge, filter cotton, dustproof net, non-woven fabric.
Main control: PLC and
man-machine interface, with
functions such as tracking
detection and tracking detection
Cutting system: use magnetic
powder clutch and magnetic
powder brake to control the
synchronization of cutter and
die cutting
Color mark tracking
Dustproof materials: cosmetic cotton, camera cotton, high-density sponge, filter cotton,dustproof net, non-woven fabric.
