Quick Details
-
Model Number:
-
RZ036-12/24V
-
Type:
-
pir motion sensor switch
-
Sensing Range:
-
8-12m (<27℃)
-
Product Type:
-
PIR Motion Sensor Switch
-
Power Source:
-
12/24V
-
Sensor Mode:
-
Vacancy , Occupancy , Occupancy without light sensor , Manual ON/OFF
-
Time-Delay:
-
15 s, 1 min(default), 3 min, 5 min, 15 min, 30 min
-
Installation Height:
-
2.5m-3.5m
-
Detection Angle:
-
360°
-
Detection Distance:
-
8-12m (<27℃)
-
Detection Speed:
-
0.6~1.5m/s
-
Light Sensor:
-
Off, 15 Lux, 25 Lux (default), 35 Lux
-
Sensor Sensitivity::
-
Low sensitivity, High sensitivity
Quick Details
-
Voltage:
-
12/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Model Number:
-
RZ036-12/24V
-
Type:
-
pir motion sensor switch
-
Sensing Range:
-
8-12m (<27℃)
-
Product Type:
-
PIR Motion Sensor Switch
-
Power Source:
-
12/24V
-
Sensor Mode:
-
Vacancy , Occupancy , Occupancy without light sensor , Manual ON/OFF
-
Time-Delay:
-
15 s, 1 min(default), 3 min, 5 min, 15 min, 30 min
-
Installation Height:
-
2.5m-3.5m
-
Detection Angle:
-
360°
-
Detection Distance:
-
8-12m (<27℃)
-
Detection Speed:
-
0.6~1.5m/s
-
Light Sensor:
-
Off, 15 Lux, 25 Lux (default), 35 Lux
-
Sensor Sensitivity::
-
Low sensitivity, High sensitivity
Products Description

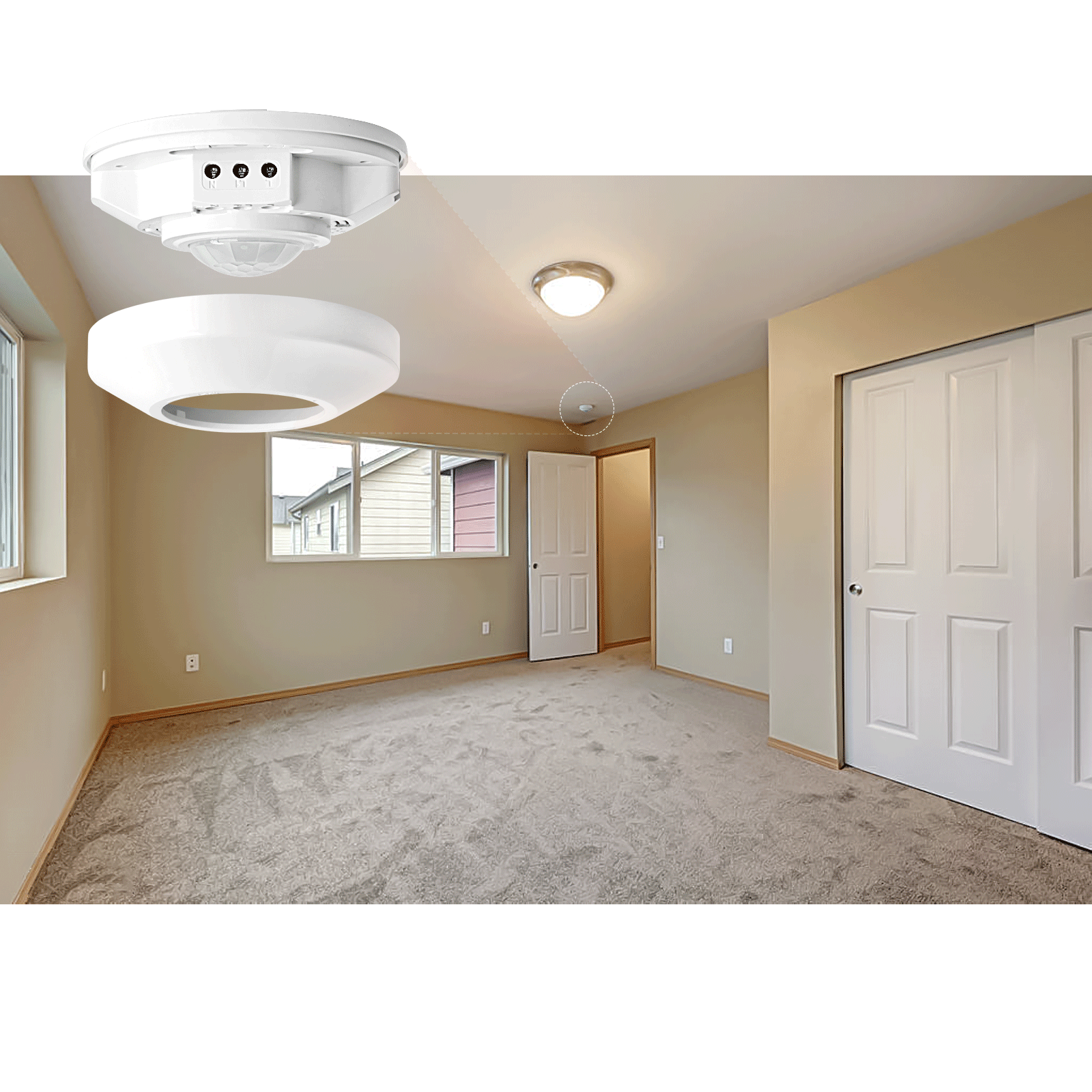

Rayzeek Occupancy Motion Sensor Light Switch, Ceiling Mounted
The RZ036-12/24V is ceiling mounted 360 degree motion sensor for lighting control.The sensor use advanced passive infrared sensor(PIR)and micro controller technology which offers better stability than the traditional motion sensor. It's easy and accurate to adjust the Time Delay.Detection Sensitivity, Light Sensor value. The sensor will deliver your energy savings of up to 60%.
Power Source: Input Voltage:12VDC/24VDC Max Work Current: 10A
Certification: FCC, RoHS certified
Power Source: Input Voltage:12VDC/24VDC Max Work Current: 10A
Certification: FCC, RoHS certified
|
Features
|
Sensor Mode
|
Vacancy mode, Occupancy mode, Manual ON/OFF mode
|
|
|
||
|
|
Time-Delay
|
15 s, 1 min(default), 3 mins, 5 mins, 15 mins, 30 mins
|
|
|
||
|
|
Light Sensor
|
Off, 15 Lux, 25 Lux (default), 35 Lux
|
|
|
||
|
|
Sensor Sensitivity
|
Low Sensitivity, High Sensitivity
|
|
|
||
|
Features
|
Power Source
|
12/24VDC
|
|
|
||
|
|
Power Frequency
|
50 / 60Hz
|
|
|
||
|
|
Installation Height
|
2.5m-3.5m
|
|
|
||
|
|
Working Humidity
|
< 93%RH
|
|
|
||
|
|
Working Temperature
|
-20 ~ +40℃
|
|
|
||
|
Detection Capability
|
Detection Distance
|
8 m ~ 12 m (<27℃)
|
|
|
||
|
|
Detection Range
|
360°
|
|
|
||
|
|
Detection Speed
|
0.6 ~ 1.5m/s
|
|
|
||
|
Power Source
|
Input Voltage:
|
12VDC/24VDC(10V-30VDC)
|
|
|
||
|
|
Max Work Current:
|
10A
|
|
|
||
* 10A Load: Ideal for many applications, i,e, controlling multiple lights of 12/24V load
It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
The versatile RZ036 motion sensor switch is applicable for every residential and commercial application with occupancy, vacancy, and ON/OFF modes integrated for max compatibility, flexibility, and ease of use.
The RZ036-12/24V series is designed 12/24V voltage works well and the 10A current rating is capable of many safety applications.
