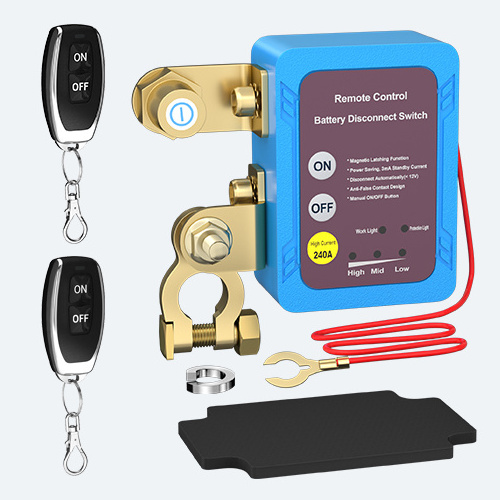

240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote
240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote

240A Battery Disconnect Switch Isolator Power Saving Cut Off Magnetic Latching Relay 12V Remote

FOB Reference Price: Get Latest Price
≥50 Pieces
US $32.88
≥100 Pieces
US $30.8
≥500 Pieces
US $28.28
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
China, Zhejiang China
Brand Name:
Daier
Model Number:
RL-240A-RCM2
Car Make:
Universal
Operating Temperature:
30°C-90 °C
Product Name:
Remote Control Battery Disconnect Switch
Current Rating:
240 Amps
Year:
Universal
Standby Current:
3mA
Operating Voltage:
12 Volts
Exterior:
Metal
Operation Mode:
ON-OFF

Quick Details

OE NO.:
ALL
Reference NO.:
other
Type:
Normally Open, 240A Remote Control Battery Disconnect Relay Switc
Place of Origin:
China, Zhejiang China
Brand Name:
Daier
Model Number:
RL-240A-RCM2
Car Make:
Universal
Operating Temperature:
30°C-90 °C
Product Name:
Remote Control Battery Disconnect Switch
Current Rating:
240 Amps
Year:
Universal
Standby Current:
3mA
Operating Voltage:
12 Volts
Exterior:
Metal
Operation Mode:
ON-OFF
Product Features
Operating Temperature 30°C-90 °C
Warranty 6 Months
Place of Origin Zhejiang, China
Car Fitment Universal
Product Name Remote Control Battery Disconnect Switch
Current Rating 240 Amps
OE NO. ALL
Contact Type Normally Open
Model Number RL-240A-RCM2
Exterior Metal
Operation Mode ON-OFF
Brand Name Daier
Type 240A Remote Control Battery Disconnect Relay Switch
Year Universal
Standby Current 3mA
Operating Voltage 12 Volts
Model Universal
Item Dimensions LxWxH 5 x 4.3 x 1.5 inches
Engine Universal
Instantaneous Current 500A
Product Description
item
240A Battery Disconnect Switch Isolator Power Saving Battery Disconnect Cut Off Switch Magnetic Latching Relay 12V Remote
Type
240A Remote Control Battery Disconnect Relay Switch
Warranty
6Months
Place of Origin
China
Brand Name
Daier
Model Number
RL-240A-RCM2
Car Make
Universal
Current Rating
240 Amps
Operating Voltage
12 Volts
Instantaneous Current
500A
Contact Type
Normally Open
Operation Mode
ON-OFF
Standby Current
3mA
Item Dimensions LxWxH
5 x 4.3 x 1.5 inches
Exterior
Metal
Operating Temperature
30°C-90 °C
About RL-240A-RCM2
*[Specifications]- Battery disconnect switch rated current: 240A, rated voltage: 12V, standby power consumption: 3mA, power-off threshold: 11.8V±0.2V, instantaneous current: 500A.
*[Magnetic Latching Function]- This kill switch for car uses a new type of relay that controls circuit disconnection and cut-off by magnetic principle, with a standby current of 3mA, which is more energy-saving.
*[Automatic Cut Off]- If the voltage is lower than 11.8V, the remote kill switch will automatically cut off the
power supply after 120s to save electricity, if the voltage is higher than 13.2V, the remote control will be disabled to prevent accidental action to shut off the power while driving, and the power supply can only be controlled by the button on the switch.
*[Easy Installation]- The power shut off switch uses a negative connection to ensure stable performance. Please remember to turn off the power before installation.
*[Protect the Battery]- Using this car battery kill switch can avoid power consumption due to long-term parking, good point of electronic equipment, line aging, forgetting to turn off the light, etc. It can effectively protect and prolong the life of car battery. It can effectively protect and prolong the life of car battery.
