Quick Details
-
Brand Name:
-
KATU
-
Model Number:
-
FM500
-
Measuring range:
-
See range table
-
Output signals:
-
4-20mA,PNP/NPN
-
Measurement accuracy:
-
0.5% f.s.
-
Repeatability:
-
0.2% f.s.
-
Power supply:
-
16~30VDC
-
Medium temperature:
-
-30~120℃ (high temperature customized 150℃)
-
Withstand pressure:
-
Aluminum (40bar)/stainless steel (100bar/250bar/400bar)/PP/PE (10bar)
-
Housing material:
-
Aluminum/stainless steel
-
Display material:
-
stainless steel/engineering plastic
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KATU
-
Model Number:
-
FM500
-
Measuring range:
-
See range table
-
Output signals:
-
4-20mA,PNP/NPN
-
Measurement accuracy:
-
0.5% f.s.
-
Repeatability:
-
0.2% f.s.
-
Power supply:
-
16~30VDC
-
Medium temperature:
-
-30~120℃ (high temperature customized 150℃)
-
Withstand pressure:
-
Aluminum (40bar)/stainless steel (100bar/250bar/400bar)/PP/PE (10bar)
-
Housing material:
-
Aluminum/stainless steel
-
Display material:
-
stainless steel/engineering plastic
Products Description
|
Application field
|
|
|
|
|
||||
|
- Resin, glue measurement
- Hydraulic oil, lubricating oil, grease measurement
- Fuel oil measurement - Ink, asphalt measurement
- Liquid nitrogen, refrigerant, solvent measurement
- Edible oil, fish oil and food filling measurement
- Chemical and anti-corrosion requirements fluid measurement
- Fluid quantitative control system
|
|
|
|
|
||||
|
Principle characteristics
|
|
|
|
|
||||
|

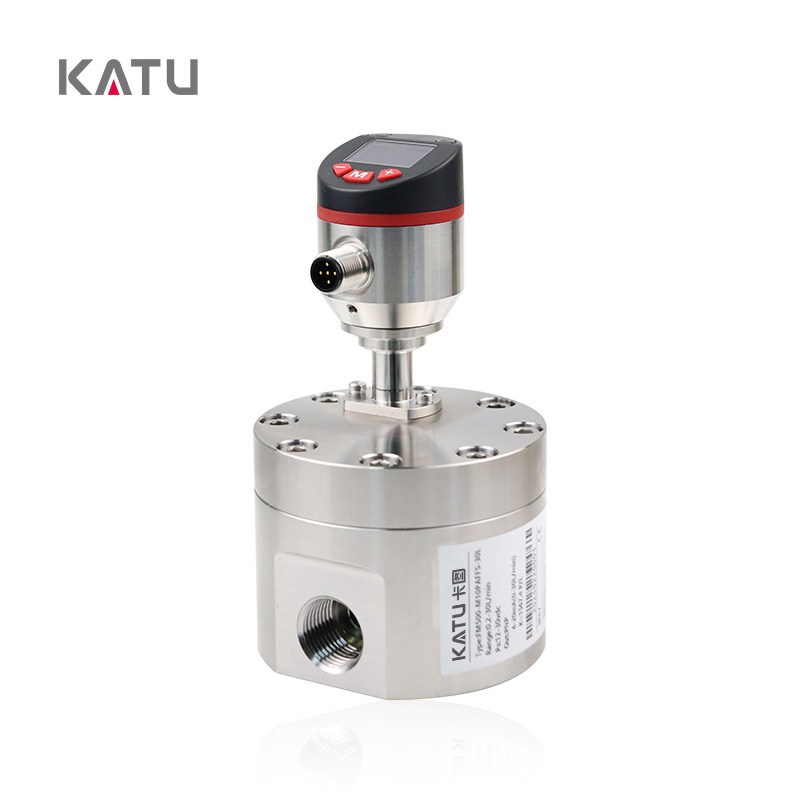

FM500 gear flow sensor built-in double gear operation, through the high precision gear wheel volume to calculate the medium through the volume, to achieve the micro fluid medium measurement. Is a new type of positive displacement flow sensor, used for precision continuous or intermittent measurement of liquid flow in the pipeline or instantaneous flow.
- Analog switch dual output
-PNP/NPN Switchover is optional
- Color crystal display unit - Withstand pressure (10~400bar)
- High and low temperature resistance (-20℃~150℃)
- Can measure various viscous media
- High precision and repeatability
- The range is wider than that
- Support communication function
- Strong anti-corrosion and anti
-fouling ability (acid and alkali)
|
|
|
|
|
||||
Selection examples:
FM500-M4/A3/P/L/-
(Measuring range: 0.1-3L/min, output signal:
Two way switch/pulse/frequency + analog
, sealing material: pp(anti-corrosion type), body material: alumina (pressure 40bar), medium temperature: -30... 120 ℃)
