Quick Details
-
Productivity:
-
65/40m3/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Oriemac
-
Weight:
-
6900 kg
-
Dimension(L*W*H):
-
6115*2100*2810mm
-
Brand:
-
oriemac
-
Model:
-
HBT6013V diesel concrete pump trailer
-
Color:
-
Yellow
-
main power:
-
118kw
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
150M
-
Max. horizontal conveying distance:
-
600M
-
Productivity:
-
65/40m3/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Oriemac
-
Weight:
-
6900 kg
-
Dimension(L*W*H):
-
6115*2100*2810mm
-
Brand:
-
oriemac
-
Model:
-
HBT6013V diesel concrete pump trailer
-
Color:
-
Yellow
-
main power:
-
118kw
Product Overview

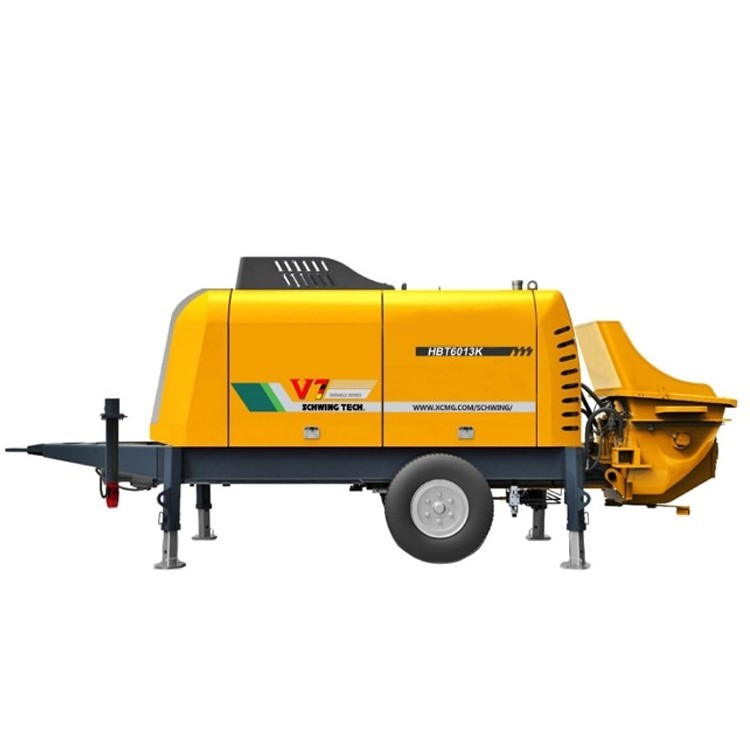

Official HBT6013V Diesel Stationary Trailer Mounted Concrete Pump for Sale
Contact Person: Ms. Phyllis
whatsApp/Tel/wechat:+86 15737137170
skype: wang.phyllis01
QQ:530090438
whatsApp/Tel/wechat:+86 15737137170
skype: wang.phyllis01
QQ:530090438
Trailer-mounted concrete pump is dedicated pumping equipment that transporting ready-mixed concrete to construction site through pipelines continuously, safely, reliably and efficiently so as to achieve efficient and mechanized construction of concrete.
By comprehensively incorporating Schwing switch-over control technology, the extraction and control of switch-over signal is totally done by hydraulic pressure, avoiding the unreliability brought by frequent electrical contact and harsh environment and reducing customers' later maintenance cost.
By adopting exclusive invariable reversing buffering technology in the industry, the pump displacement keeps unchanged during pumping and reversing and the main system unloads in low pressure, which thoroughly avoid such problems as long reversing time, great reversing impact and low service life of pump caused by frequent change of displacement during traditional reversing.
The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring.
The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.
By comprehensively incorporating Schwing switch-over control technology, the extraction and control of switch-over signal is totally done by hydraulic pressure, avoiding the unreliability brought by frequent electrical contact and harsh environment and reducing customers' later maintenance cost.
By adopting exclusive invariable reversing buffering technology in the industry, the pump displacement keeps unchanged during pumping and reversing and the main system unloads in low pressure, which thoroughly avoid such problems as long reversing time, great reversing impact and low service life of pump caused by frequent change of displacement during traditional reversing.
The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring.
The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.
PRODUCT SPECIFICATIONS
|
Item
|
Unit
|
Parameter
|
|
Outline dimension
|
mm
|
6115×2100×2810
|
|
Total weight
|
kg
|
6900
|
|
Engine model
|
-
|
WP4G160E331
|
|
Rated power
|
kw
|
118
|
|
Emission standard
|
-
|
Euro III
|
|
Theoretical output
|
m³/h
|
65/40
|
|
Theoretical pumping pressure
|
MPa
|
8/13
|
|
Inner diameter*stroke
|
mm
|
φ200×1400
|
|
Pipe
|
-
|
optional
|
