Quick Details
-
Dimension(L*W*H):
-
1250*1150*1120mm
-
Power (kW):
-
2.2 kW
-
Weight (KG):
-
260 KG
-
Certification:
-
ce iso
-
Model:
-
Industrial Rubber Sheets Cutting Rubber Strip Cutter Machine
-
Model Number:
-
MT-ZYS600
-
Cutting width:
-
600mm
-
Thickness:
-
2-18mm
-
Cutting speed:
-
75times/min
-
Cutting length:
-
1mm-9meters
-
Power:
-
2.2KW
-
Size:
-
1250*1150*1120mm
-
Weight:
-
260kg
-
Material:
-
Rubbers
Quick Details
-
Place of Origin:
-
Henan
-
Brand Name:
-
MILES
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1250*1150*1120mm
-
Power (kW):
-
2.2 kW
-
Weight (KG):
-
260 KG
-
Certification:
-
ce iso
-
Model:
-
Industrial Rubber Sheets Cutting Rubber Strip Cutter Machine
-
Model Number:
-
MT-ZYS600
-
Cutting width:
-
600mm
-
Thickness:
-
2-18mm
-
Cutting speed:
-
75times/min
-
Cutting length:
-
1mm-9meters
-
Power:
-
2.2KW
-
Size:
-
1250*1150*1120mm
-
Weight:
-
260kg
-
Material:
-
Rubbers
Product Information

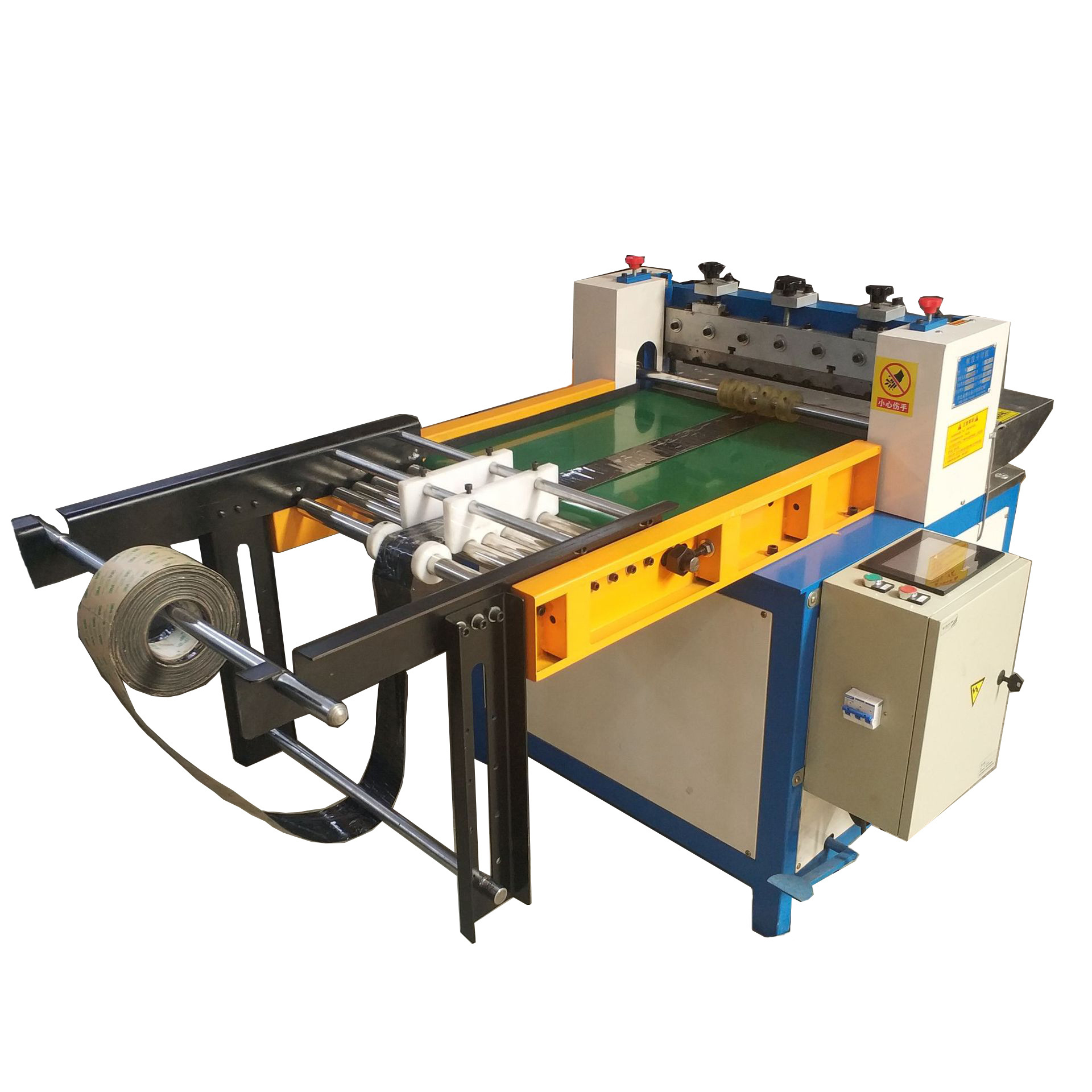

Professional Industrial Rubber Sheets Cutting Rubber Strip Cutter Machine
The rubber slitting/cutting machine has replaced the backward process of manual material cutting, and ensured the shearing precision, avoided the material waste, improved the working efficiency and reduced the cost.The machine is suitable for cutting various materials such as rubber, silicone, polyester film, film, leather, sponge, glass fiber, carbon fiber, paper, aluminum sheet, etc.
Product Specification & Parameter
Professional Industrial Rubber Sheets Cutting Rubber Strip Cutter Machine
| Model | MT-ZYG600 | MT-ZYS600 | MT-ZY S8 00 | MT-ZY S1 000 | MT-ZYS1300 | MT-ZYS15 00 |
| Width | 600mm | 600mm | 800mm | 1000mm | 1300mm | 1500mm |
| Length | 1-65mm | 1-9000mm | ||||
| Thickness | 2-18mm | 2-20mm | 2-20mm | 2-22mm | 2-25mm | 2-25mm |
| Cutting speed | 75times/min | 75times/min | 60times/min | 50times/min | 45times/min | 45times/min |
| Carrier way | Conveyor + platform | Conveyor | ||||
| Votlage | 220V | 220V | 220V | 220V | 220V | 220V |
| Power | 2.2KW | 2.2KW | 3KW | 4KW | 5.5KW | 5.5KW |
| Size | 2*0.8*1.1M | 1.3*1.2*1.1M | 1.5*1.2*1.1M | 1.5*1.4*1.2M | 1.6*1.5*1.2 | 2.1*1.7*1.2M |
| Weight | 260kg | 300kg | 380kg | 450kg | 650kg | 750kg |
Features
1.The CNC operating system adopts the famous brand (xinjie) 7-inch touch screen, PLC, the response speed is fast, the service life is long, the after-sale service has the safeguard, the system screen has many dimensions to store the page, convenient your quick setting.
2.The machine slide is made of copper, with advantages of self-lubrication, wear resistance and long service life.
3.The power output of this machine adopts hangzhou famous brand worm gear reducer, which has the advantages of low noise, good heat dissipation, long life, large power transmission, impact resistance, etc.
4.The transmission system of this machine adopts v-belt transmission with tooth shape, which has the advantages of low noise, high friction, wear resistance, no heat and low power loss, etc. Its price and life is ordinary triangle belt 3 times.
5.Blade material selection alloy steel tungsten steel, sharpness, wear resistance, especially suitable for rubber and other materials of high frequency cutting.
6.PVC conveyor belt easy to put the material, the material does not run off, so that the film feeding tension is constant, to ensure the maximum accuracy of size.
Feature
7.The stainless steel outlet has registered the appearance design patent, the design is reasonable, the slope is big, the material slides smoothly does not block the material.
8.The discharge port is equipped with infrared induction switch to prevent improper hand cutting.
