Cartridge heaters are manufactured in two basic forms - high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Luertai/OEM
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
0.5 KG
-
After Warranty Service:
-
Field maintenance and repair service
-
Product name:
-
Heating Element
-
Application:
-
Industry Heating Process
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V/24V/36V/48V/110V/220V/230V/380V/415V/440V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Luertai/OEM
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
0.5 KG
-
After Warranty Service:
-
Field maintenance and repair service
-
Product name:
-
Heating Element
-
Application:
-
Industry Heating Process
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Product Description

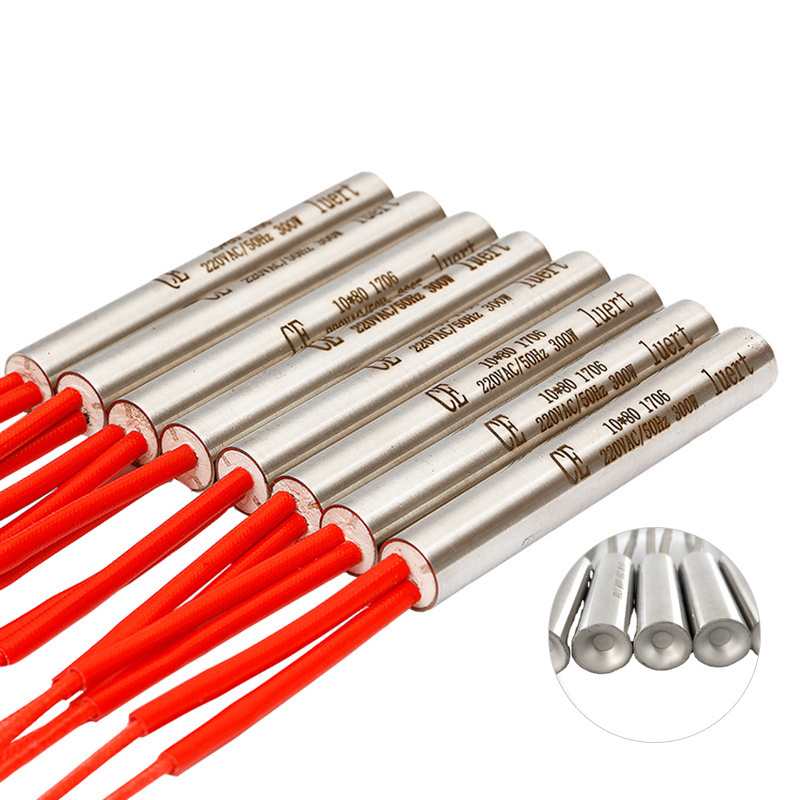

Cartridge heater introduction
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
|
Thread Cartridge Heater Parameter
|
|
|
|
Resistance heating wire material
|
Cr20Ni80
|
|
|
Tube material
|
SS304,SS316,SS310S,SS321,INCOLOY 800,INCOLOY 840
|
|
|
Tube diameter
|
3-30mm
|
|
|
Diameter tolerance
|
-0.02~0.2mm (as your request)
|
|
|
Tube length
|
15-3000mm
|
|
|
Length tolerance
|
±1mm
|
|
|
Max. Temperature
|
870℃
|
|
|
Wattage tolerance
|
+5%, -10%
|
|
|
Voltages
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
|
Standard cold zone
|
5-10mm
|
|
|
Insulation resistance (cold)
|
≥500MΩ
|
|
|
Max. leakage current
|
≤0.5mA
|
|
|
Thermocouple
|
Type J , Type K ,Type E
|
|
Details Images
Standard Product Parameter
Special diameter, length of cartridge, length of lead, and extra features are availabe on request
|
Thread size
|
Diameter
|
Length
|
Power
|
Tube material
|
|
6
|
16mm
|
400mm
|
220V 1KW
|
SS304
|
|
6
|
16mm
|
400mm
|
220V 1.5KW
|
SS304
|
|
6
|
16mm
|
500mm
|
220V 1.5KW
|
SS304
|
|
6
|
16mm
|
500mm
|
220V 2KW
|
SS304
|
|
6
|
16mm
|
600mm
|
220V 1.5KW
|
SS304
|
|
6
|
16mm
|
600mm
|
220V 2KW
|
SS304
|
|
6
|
16mm
|
800mm
|
220V 1.5KW
|
SS304
|
|
6
|
16mm
|
800mm
|
220V 2KW
|
SS304
|
|
6
|
16mm
|
800mm
|
220V 2.5KW
|
SS304
|
Certifications
We have CE,ROHS and letters patent
